imagePROGRAF TM-5205

Performance in A Whole New Dimension

The TM-5205 allows you to enjoy high-speed, accurate printing complete with vivid colours, high security, ease of use, complete with hard disk, all in silence.

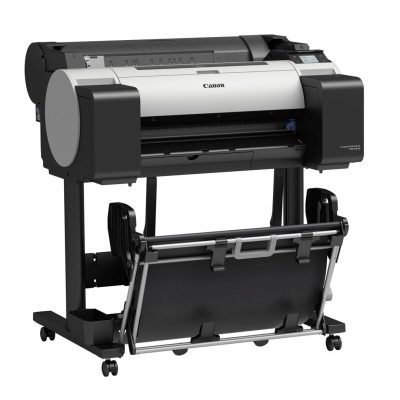

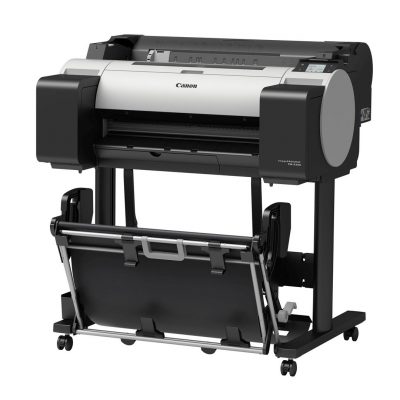

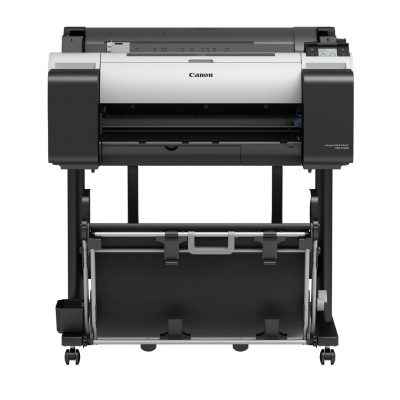

  • 24″ Printer with Printer Stand
  • 3-inch flat panel touchscreed display
  • Front loading paper roll system
  • Printing Resolution : 2400 dpi x 1200 dpi
  • Direct USB Printing
  • Wifi connectivity

RSP : RM11,321.00 / unit.
FREE : 3 years on-site warranty.

PRODUCT OVERVIEWS

Canon TM-5205 imagePROGRAF 24″ printer features Pigment Ink Technology for UV and Water resistant printing.

Canon’s new TM series for the first time brings Canon LUCIA ink to the CAD and technical printing market and expands the use of their entry level line up in to the graphics market, ideal for POS applications LUCIA ink offers UV resistance and the added advantage of water resistant prints when used with appropriate medias. Ideal for taking building plans on site or for short term outdoor poster displays or longer term in store window advertising.

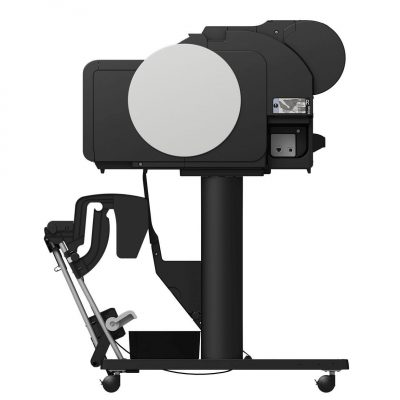

Canon imagePROGRAF TM-5205 supplied with a stand which features a print collector all operations can be carried out from the front of the plotter including media changes by simply lifting the back cover.

Additional Info for Unique Technologies

LUCIA TD ink

The TM Series employs the all-new five-colour pigment LUCIA TD ink which renders unparalleled detailed precision needed for CAD/GIS files even on uncoated plain paper . Realise true potential to print vibrant, weather resistant colour posters with LUCIA TD ink.

FINE Print head

With a new 1.07- inch, 6-channel integrated FINE print head with 15,360 nozzles, the TM Series gives excellent print quality through improved uniformity of ink density and colours.

L-COA PRO Image Processing Engine

Powered by the L-COA PRO high-speed image processing chips, the TM Series delivers supreme print quality at high speeds even for big jobs.

PRODUCT HIGHLIGHTS

  • Boost productivity by printing faster, thanks to a 6-channel optimised 1.07-inch print head.

  • High-quality printing with rich colour and sharp text from 5-colour, full pigment Lucia TD ink

  • Streamlined internal operations, including dampened fans and vibrations, means 60% less noise

  • A compact and integrated design, with full front usability, means little installation space

  • Direct Print & Share, PosterArtist Lite and Free Layout Plus support CAD and poster production.

  • Perfect for indoor and outdoor applications including a unique Water Resistant Media portfolio

  • Ease of use can be reached by the 3-inch flat panel touchscreen display

PRODUCT SPECIFICATIONS

Max. print resolution

Media tickness

2400 x 1200 dpi
0.07 ~ 0.8 mm

Ink type

Print technology

LUCIA TD 5-colour pigment ink
Thermal Inkjet

Ink capacity

Print speed

130 ml and 300 ml
24 seconds per A1 sheet

Compact body

Operation panel

982 x 887 x 1060 mm
3-inch colour LCD touchscreen

Memory

Hard Disk

Standard Memory 128 GB
(Physical Memory 2 GB)
500 GB
TM-5205

Max. print resolution​

2400 x 1200 dpi

Media tickness

0.07 ~ 0.8 mm

Ink type

LUCIA TD 5-colour pigment ink

Print technology​

Thermal Inkjet

Ink capacity

130 ml and 300 ml

Print speed​

24 seconds per A1 sheet

Compact body

982 x 887 x 1060 mm

Operation panel​

3-inch colour LCD touchscreen

Memory

Standard Memory 128 GB
(Physical Memory 2 GB)

Hard Disk

500 GB
TM-5205

Print Workflow & Software Solutions

  • Universal Print Driver – Enables users to print from multiple TM Series devices.
  • Wi-fi* printing – Print mobile from anywhere in the office or from a job site.
  • Direct Print & Share – This software enables to batch print multiple files of different types such as PDF, JPEG, TIFF and HP-GL/2. Includes “Hot Folder” printing feature. Thumbnail preview of multiple images, fast processing, and multipage printing of PDFs are now available.
  • Free Layout Plus – New! Nest, tile and create custom layouts before printing your files with this print utility. Use the plug-in feature to print directly from Microsoft Office programs.
  • Accounting Manager – This software realizes efficient cost management of printers. Accounting Manager collects printer job logs and calculates the printing costs with ink/media usage for each print job or for a certain period.
  • PosterArtist Lite – Create professional posters in four easy steps! Poster Artist Lite now supports the creation of multilingual posters and tiling with 124 templates and close to 800 images and Clipart.  An optional Poster Artist full version with additional templates, images and Clipart is also available.
  • Autocad® Optimized Printer Driver – AutoCAD optimized printer driver is specifically developed for Autodesk AutoCAD to enable faithful printing of drawing data created with AutoCAD.
  • Device Management Console – Monitor printer status such as error messages and ink levels of up to 50 printers.
  • Media Configuration Tool – Manage, update and arrange media information in the operation panel and printer driver.
  • Apple AirPrint – Print PDF files wirelessly via mobile app for Apple iPad® and iPhone®
  • Canon Print Service – Print PDF files wirelessly via mobile app for Android tablet and smartphone.
  • Easy Photoprint Editor – User friendly software  that allows you to edit, trim and rotate your images into unique layouts and designs, including posters, calendars, collages and more – both Windows® and Mac® compatible and mobile-friendly!

* Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.

Canon imagePROGRAF TM-5205 Specifications
PRINTER
Printer Type5 Colour 24″
Number of Nozzles15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y 2,560 nozzles each)
Print Resolution (Max)2400 x 1200 dpi
Nozzle Pitch1200 dpi (2 lines)
Line Accuracy± 0.1 % or less
Ink Droplet SizeMinimum 5 Picoliter per colour
Ink Capacity130ml/300ml (MBK, BK, C, M, Y);
Bundled Starter Ink: 130ml (MBK)/ 90ml (BK, C, M, Y)
Ink TypePigment inks / 5 colour MBK, BK, C, M, Y
Printer LanguagesSG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, PDF (Ver 1.7), JPEG (Ver JFIF1.02)
Standard InterfacesUSB B Port
Built in (High-Speed USB), Full Speed (12 Mbit/sec),
High Speed (480 Mbit/sec), Bulk Transfer, Series B (4 pins);
USB A Pot
USB Memory (Direct Print)
Gigabit Ethernet
Built in, IEEE 802.3 10base-T, IEEE 802.3u 100base-TX/Auto-Negotiation,
IEEE 802.3ab 1000 base-T/ Auto-Negotiation, IEEE 802.3x Full Duplex,
SNMP (Canon-MIB, HTTP, TCP/IP (IPv4/IPv6), ftp;
Wireless LAN
IEEE802.11n/ IEEE 802.11g/ IEEE 802.11b, WEP (64/128bit),
WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
MemoryStandard Memory 128 GB
(Physical Memory 2 GB)
Hard Disk500 GB
PRINTING SPEED (A1 SIZE)
Plain Paper (CAD Drawings)00:24 Fast (Custom Q5)
00:27 Fast
00:42 Standard
Heavyweight Coated Paper HG (CAD Drawings)00:29 Fast (Custom Q5)
00:40 Fast
01:17 Standard
Plain Paper (Poster)00:25 Fast (Custom Q5)
00:25 Fast
00:44 Standard
Heavyweight Coated Paper HG (Poster)00:55 Fast
01:22 Standard
MEDIA HANDING
Media WidthRoll Paper / Cut Sheet: 203.2~610mm
Media ThicknessRoll Paper / Cut Sheet: 0.07~0.8mm
Minimum Printable LengthRoll Paper: 203.2mm,
Cut Sheet: 279.4mm
Maximum Printable LengthRoll Paper: 18m (Varies according to the OS and application),
Cut Sheet: 1.6m
Maximum Media Roll Outer Diameter150mm or less
Paper Feed MethodRoll Paper: One Roll, Upper-loading, Front Output;
Cut Sheet: Upper-loading, Front Output
(Manual feed using media locking lever)
Borderless Printing Width (Roll Only)Recommended
515mm (JIS B2), 594mm (ISO A1), 10″, 14″, 17″, 24″
Printable
257mm (JIS B4), 297mm (ISO A3),
329mm (ISO A3+), 420mm (ISO A2),
8″, 12″, 16″, 20″, 300mm, 500mm, 600mm.
Media Output (SD-23)Standard Position: 1 Sheet,
Folding Position: 20 sheets on A1 portrait,
Flat Position: 20 sheets on A2 landscape.
DIMENSIONS & WEIGHT
Packaged DimensionsW x D x H (mm) / Weight (kg)Printer (Main Unit with Pallet)
1152 x 913 x 705mm, Weight: 69kg
Stand + Basket (SD-23)
1155 x 824 x 268mm, Weight: 18kg
Printer (Main Unit with Stand SD-23 and Pallet)
1152 x 913 x 961mm, Weight: 87kg
Physical DimensionsW x D x H (mm) / Weight (kg)Main Unit + Stand + Basket (SD-23)
Basket Opened: 982 x 887 x 1060mm
Basket Closed: 982 x 757 x 1060mm
Weight: 52 kg (including Roll Holder Set, excluding ink and print head)
POWER AND OPERATING REQUIREMENTS
Power SupplyAC 100-240V (50-60Hz)
Power ConsumptionOperation: 69W or less;
Sleep Mode: 3.6W or less;
Power Off : 0.3W or less
Operating EnvironmentTemperature: 15ºC~30ºC,
Humidity: 10%~80% RH (no dew condensation)
Acoustic SoundAcoustic Power
Operation: 6.0 Bels (Plain paper, line drawing, standard mode)
(Measured on ISO7779 standard)
Acoustic Pressure
Operation: 44dB(A) (Plain paper, line drawing, standard mode)
Standby : 35dB(A) or less
(Measured on ISO7779 standard)
OPTIONS
2/3″ Roll HolderRH2-28
CONSUMABLES
Ink TankPFI-8120 (130ml) / PFI-8320 (300ml)
Print HeadPF-06
Cutter BladeCT-08
Maintenance CartridgeMC-31
