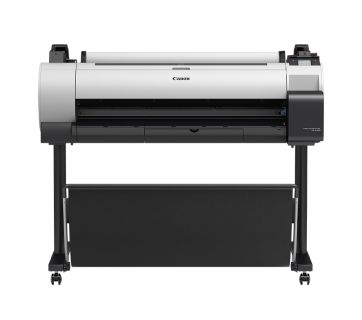

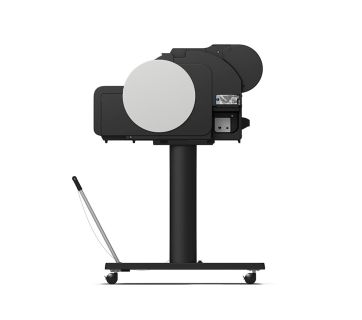

imagePROGRAF TA-5300
Versatility with Cost Efficiency
A 36-inch, 5-colour large-format printer offers quality prints, cost-efficiency, easy-to-use solution to ease workflow and increase productivity for small businesses.
- 36″/917mm, 5-colour LUCIA TD pigment ink
- Standard with Printer Stand
- 3-inch flat panel touchscreed display
- Front loading paper roll system
- Printing Resolution up to 2400 dpi x 1200 dpi
- Robust security, extensive suite of software and solutions
- Air Feeding System
- Silent Printing
RSP : RM10,094.00 / unit.
FREE : 3 year on-site warranty.
PRODUCT OVERVIEWS
The new Canon imagePROGRAF TA-5300 large format printers are designed to deliver affordable printing for startups, small businesses, and educators, allowing them to scale up to 36” prints easily. Equipped with unique class-leading print technologies, the imagePROGRAF TA-5300 combine outstanding quality with ease-of-use to meet all CAD, design and creative needs.
THE PERFECT PRINT
With Canon’s advanced Air Feeding System, paper movement is kept smooth and flat with platen air suction during printing to ensure consistent feeding. All pigment 5-colour LUCIA TD ink combines with Canon FINE print head produces sharp text, accurate lines, and vivid colours with excellent weather resistance, even on plain paper. Powered by L-COA PRO imaging processor, the new TA-5300 delivers supreme print quality at fast speed even for jobs of varying demands.
Additional Info for Unique Technologies
LUCIA TD ink
LUCIA TD ink combines with Canon FINE print head to produce sharp text, accurate lines, and vivid colours with excellent weather resistance, even on plain paper.
FINE Print head
Get rich and grain-free quality photo image with minimum ink droplets and high printing resolution for lab-quality printouts.
L-COA PRO Image Processing Engine
L-COA PRO imaging processor drives high printing speed and supreme print quality.
PRODUCT SPECIFICATIONS
Appearance
Print technology
Standard with Printer Stand
Thermal Inkjet
Ink type
Print speed (AO size)
LUCIA TD 5-colour pigment ink
53 sec (Fast), 1 min 34 sec (Standard).
Compact body
Operation panel
1,289 x 748 x 438 mm
3-inch colour LCD touchscreen
Appearance
Standard with Printer Stand
Ink type
LUCIA TD 5-colour pigment ink
Print technology
Thermal Inkjet
Print speed (AO size)
53 sec (Fast), 1 min 34 sec (Standard).
Compact body
1,289 x 748 x 438 mm
Operation panel
3-inch colour LCD touchscreen
WORKFLOW SOLUTIONS
The following workflow solutions are designed to help you get the most out of your printer.
PosterArtist Lite
Create professional-looking posters in-house with a wide variety of templates, stock photos and clip art for various business types and themes.
Accounting Manager
Track ink and media usage for cost calculation and reporting.
Media Configuration Tool
Easily manage, update and arrange media information in printer’s operation panel and printer driver.
Print Workflow & Software Solutions
- Device Management Console – Effectively manages multiple printers, monitor activities such as error messages and printer information up to 50 printers.
- Quick Utility Toolbox – Quick access to supporting utilities and settings. From printer information, speed dial and destination folder settings to scanning and cloud sharing.
- Direct Print & Share – Batch printing, job presets, shortcut prints can be sent easily and efficiently.
- Free Layout Plus – Enjoy nesting, tiling and duplex printing features.
- AutoCAD® Optimized Printer Driver – Optimised printer driver for optimal printing control and enables faithful printing of drawing data created with AutoCAD®.
- Easy-PhotoPrint Editor – Edit, trim and rotate your images into unique layouts and designs, including posters, calendars, collages and more. Available on iOS, Android OS.
- Apple AirPrint – Print PDF files wirelessly via mobile app for Apple iPad® and iPhone®.
- Canon Print Service – Direct document and photo printing via mobile app from Android devices without the need to download any printer-specific applications.
- Canon Print Inkjet/ SELPHY – Print PDF files wirelessly via mobile app for Android tablet and smartphone.
| CANON imagePROGRAF TA-5300 Specifications | |
|---|---|
| Printer | |
| Printer Type | 5-Colour, 36″ / 914 mm |
| Number of Nozzles | 15,360 nozzles (MBK: 5120 nozzles; BK, C, M, Y: 2560 nozzles each) |
| Maximum Print Resolution | 2400 x 1200 dpi |
| Nozzle Pitch | 1200 dpi (2 lines) |
| Line Accuracy*1 | +/- 0.1 % or less |
| Minimum Ink Droplet Size | 5 pl |
| Ink Capacity | Sales Ink: 55 ml (Matte Black, Black, Cyan, Magenta, Yellow) Bundled Starter Ink: 55 ml x 2 (Matte Black) / 55 ml (Black, Cyan, Magenta, Yellow) |
| Ink Type | Pigment Ink |
| Printer Language | SG Raster (Swift Graphic Raster) HP-GL/2 HP RTL JPEG (Ver. JFIF1.02) |
| Printing Solutions | Apple AirPrint, Direct Print & Share, AutoCAD Optimized Printer Driver, Easy-PhotoPrint Editor, Canon PRINT Inkjet/SELPHY, Canon Print Service |
| Standard Interfaces (Built-in) | USB B Port: Hi-Speed USB Full Speed (12 Mbit/sec) High Speed (480 Mbit/sec) Bulk Transfer Series B (4 pins) Gigabit Ethernet: IEEE 802.3 10base-T IEEE 802.3u 100base-TX/Auto-Negotiation IEEE 802.3ab 1000base-T/Auto-Negotiation? IEEE 802.3x Full Duplex SNMP HTTP TCP/IP (IPv4/IPv6) FTP Wireless LAN: IEEE802.11n/g/b WEP (64/128bit) WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) |
| Memory (Standard) | 2 GB |
| Print Speed*2 | |
| Plain Paper (CAD Drawings, A0) | 52 sec [Fast (Custom Q5)] 53 sec [Fast] 1 min 34 sec [Standard] |
| Heavyweight Coated Paper HG (CAD Drawings, A0) | 53 sec [Fast (Custom Q5)] 1 min 31 sec [Fast] 4 min 25 sec [Standard] |
| Plain Paper (Poster, A0) | 50 sec [Fast (Custom Q5)] 50 sec [Fast] 1 min 25 sec [Standard] |
| Heavyweight Coated Paper HG (Poster, A0) | 1 min 44 sec [Fast] 3 min 10 sec [Standard] |
| Glossy Photo Paper HG 170 (Poster, A0) | 6 min 32 sec [Standard] 10 min 1 sec [Fine] |
| Media Handling | |
| Media Feed and Output | Roll Paper (Single) : Upper Load, Front Output Cut Sheet : Upper Load, Front Output*3 |
| Media Width | Roll Paper : 203.2 ~ 917 mm Cut Sheet : 210 ~ 431.8 mm |
| Media Thickness (Roll / Cut Sheet) | 0.07 ~ 0.8 mm |
| Min. Printable Length | Roll Paper : 203.2 mm Cut Sheet : 279.4 mm |
| Max. Printable Length | Roll Paper : 18 m*4 Cut Sheet : 594 mm |
| Maximum Outer Roll Diameter | 150 mm or less |
| Borderless Printing Width (Roll paper only, no size restriction) | 203.2 – 917 mm |
| Margins (Recommended Area) | Roll Paper : Top: 20 mm, Bottom: 3 mm, Side: 3 mm Cut Sheet (Apple AirPrint) : Top: 20 mm, Bottom: 31 mm, Side: 3 mm Cut Sheet (Others) : Top: 20 mm, Bottom: 20 mm, Side: 3 mm |
| Margins (Printable Area) | Roll Paper : Top: 3 mm, Bottom: 3 mm, Side: 3 mm Roll Paper (Borderless Print) : Top: 0 mm, Bottom: 0 mm, Side: 0 mm Cut Sheet (Apple AirPrint) : Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm Cut Sheet (Others) : Top: 3 mm, Bottom: 20 mm, Side: 3 mm |
| Dimensions & Weight | |
| Dimensions (W x D x H) | |
| Main Unit (Include roll holder set, exclude ink and print head) | 1289 x 748 x 438 mm |
| Main Unit + Stand + Basket (SD-33) | 1289 x 870 x 1059 mm (Basket Open) 1289 x 757 x 1059 mm (Basket Closed) |
| Weight | |
| Main Unit (Include roll holder set, exclude ink and print head) | 44 kg |
| Main Unit + Stand + Basket (SD-33) | 53 kg |
| Packaged Dimensions (W x D x H) | |
| Main Unit + Pallet | 1492 x 909 x 685 mm |
| Stand + Basket (SD-33) | 1362 x 824 x 268 mm |
| Main Unit + Stand + Pallet | 1492 x 909 x 811 mm |
| Packaged Weight | |
| Main Unit + Pallet | 74 kg |
| Stand + Basket (SD-33) | 17 kg |
| Main Unit + Stand + Pallet | 90 kg |
| Power & Operating Requirements | |
| Power Supply | AC 100 – 240 V, 50 – 60 Hz |
| Power Consumption | Printing : 59 W or less Sleep Mode : 3.6 W or less Power Off : 0.3 W or less |
| Operating Environment | Temperature : 15 ~ 30°C Humidity : 10 ~ 80% RH (No dew condensation) |
| Acoustic Sound | Acoustic Power*5 : Operation: Approx. 58 dB Acoustic Pressure*5 : Operation: Approx. 42 dB (A), Standby: 35 dB (A) or less |
| Accessories and Consumables | |
| Printer Stand (Required) | SD-33 |
| 2″/3″ Roll Holder (Optional) | RH2-35 |
| Print Head | PF-06 |
| Cutter Blade | CT-08 |
| Maintenance Cartridge | MC-31 |
| Ink Tank (55 ml) | PFI-8030 Matte Black / Cyan / Magenta / Yellow / Black |
| *1 User adjustments is required. Printing environment and media must match those used for the adjustments. Paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only. | |
| *2 Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations. | |
| *3 Manual feed using media locking lever. | |
| *4 Varies according to the OS and application. | |
| *5 Measured using ISO 7779 standard and described based on ISO 9296 standard. Measured in standard mode using plain paper and line drawing. | |
Product Catalogue PDF file : CANON Large Format Printer imagePROGRAF TA5300 Brochure 2.54MB
