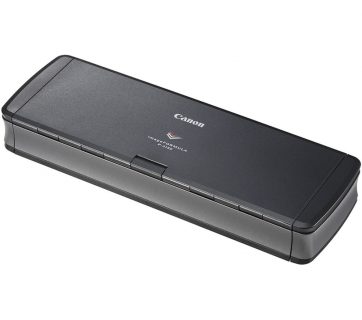

Document Scanner imageFORMULA P-215II

Your essential partner for high-performance scanning, anywhere

The most productive USB-powered scanner in its class, the P-215II is true plug-and-scan for both Mac and Windows users.

  • 20-sheets capacity ADF
  • 15 ppm / 30 ipm
  • Document & Card Scanning
  • Suggested daily volume of 500 scans a day

RSP : RM1,414.00 / unit.
FREE : 1 year in-house warranty.

PERFORMANCE

USABILITY

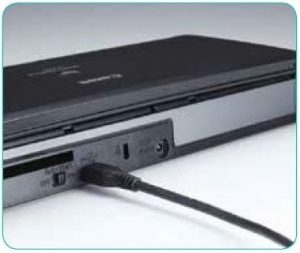

Fast, USB-powered scanning

The sophisticated imageFORMULA P-215II offers the fastest USB-powered scanning in its class with duplex speeds of up to 30 images per minute, and can be achieved using just a single USB cable connection.

Space saving and lightweight

The P-215II is extremely stylish with a sleek black and silver design. Its small footprint makes it easy to place on busy desktops, in drawers or use in the home. Weighing approximately 1kg it is the perfect accessory for mobile executives to fit into a briefcase or laptop bag.

Versatile media handling

The P-215II can scan a variety of media ranging from traditional A4 to irregular sized documents and photos. It also features a front facing switch back card slot ideal for scanning plastic ID and embossed cards.
Its 20-sheet Automatic Document Feeder enables fast batch scanning, ideal for executives who need to process signed contracts and close deals.

Plug-and-scan convenience with CaptureOnTouch Lite

The P-215II is extremely simple to use – just connect with a USB cable and start scanning! CaptureOnTouch Lite software is built into the P-215II so there is no need to download additional drivers or software, it’s simply plug-and-scan.

High quality imaging

High quality imaging is made possible through Canon’s proven image processing technology that allows for high resolution scanning up to 600dpi. Image clarity can be further enhanced by colour dropout, moire reduction and advanced text enhancement II – perfect to ensure superb scan quality and ideal for creating searchable PDFs.

Easily create new solutions

Software Development Kits for CaptureOnTouch and CaptureOnTouch Lite make it possible to build applications that integrate directly with the P-215II to create new workflow solutions.

CANON Document Scanner imageFORMULA P-215II Specifications
General
Bundled SoftwareWindows: ISIS/TWAIN driver, CaptureOnTouch, CaptureOnTouch Lite (built-in)
Mac: TWAIN driver, CaptureOnTouch, CaptureOnTouch Lite (built-in)
Dimensions (W x D x H) Feed trays closed: 285 x 95 x 40mm
Feed tray open: 285 x 257 x 174mm
Ejection pockets
Interface Hi-Speed USB 2.0 (USB 3.0 bus power also supported)
MICR
On-Board Jogger
Operating Environment Temperature: 10°C – 32.5°C
Humidity: 25 – 80% RH
Supported Operating System Windows/ Mac
Options / Consumables AC Adapter, Carrying Case, USB Cable, Separation Pad, Feed Roller
PowerWith USB 2.0 bus power:
0.5A (communication cable only)
1.0A (in combination with the power supply USB cable)

With USB 3.0 bus power: 0.9A
With optional AC adapter: DC6V, 0.8A
Power Consumption USB cable only: 2.5 W (USB 2.0) / 4.5 W (USB 3.0)
USB cable and power supply cable: 5.0 W (USB 2.0) / 7.0 W (USB 3.0)
Sleep mode: 1.5 W
Power Turned OFF: 0.1 W
WeightApprox. 1.0 kg
Scanning Document
Feeding Method Automatic / card slot
Document thickness – Plain Paper Weight: 52 – 128 g/m2
Thickness: 0.06 – 0.15 mm
Document thickness – Postcard Weight: 128 – 225 g/m2
Thickness: 0.15 – 0.4 mm
Document thickness – Business Card Weight: 128 – 255 g/m2
Thickness: 0.15 – 0.3 mm
Document thickness – Card (ISO/IEC compliant) Weight: 0.76 mm or less
Thickness: Up to 1.4 mm for embossed cards
Document thickness – Passport
Feeding Capacity 20 sheets
Document size – Plain Paper (A4/LTR) Width: 50.8 – 216 mm,
Length: 70 – 356 mm
Document size – Long Document Mode Up to 1,000 mm
Document size – Postcard Width: 88.9 – 108 mm,
Length: 127 – 152.4 mm
Document size – Business card Width: 49 – 55 mm,
Length: 85 – 91 mm
Document size – Card (ISO/IEC compliant) Width: 86 mm,
Length: 54 mm
Document size – Passport
Document size – Plastic card
Document size – Magnetic card
Scan
Light source LED (red, green and blue)
Maximum Resolution 600 dpi
Scan Resolution 150 x 150dpi, 200 x 200dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi
Scanner Element CIS
Scanner Type Desktop sheet-fed scanner
Scanning Modes Black and White, Error Diffusion, Advanced Text Enhancement II, 256-level Gray, 24-bit Color
Scanning Side Simplex / Duplex
Scanning speed USB 2.0 bus power, A4 / LTR, Portrait, 200dpi:
Black and White: 12ppm (simplex) / 14ipm (duplex)
Grayscale: 12ppm (simplex) / 14ipm (duplex)
Colour: 10ppm (simplex) / 10ipm (duplex)

USB 3.0 bus power, A4 / LTR, Portrait, 200dpi:
Black and White: 15ppm (simplex) / 30ipm (duplex)
Grayscale: 15ppm (simplex) / 30ipm (duplex)
Colour: 10ppm (simplex) / 20ipm (duplex)

*Actual scanning speed may vary depending on your system configuration and PC
Suggested Daily Volume (Scans) 500
