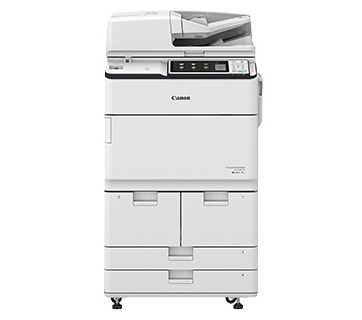

Canon Super Heavy Duty Mono Multi-Function Copier - iR ADV DX 8786

High performance, intuitive usability, versatile finishing

The imageRUNNER ADVANCE DX 8786 delivers high performance and quality black-and-white output for high volume office environments and CRDs. These intelligent systems enhance productivity with versatile finishing options while maintaining an intuitive user experience.

  • 86 ppm (Print) / 240ipm (Scan)
  • Copy / Print / Scan / Send / Store
  • 10.1-inch colour Touch Panel
  • Print Resolution : 1200 x 1200 dpi

RSP : RM55,581.00 / unit.
FREE : 1 year on-site warranty.

RENTAL : RM1,485.00 / month.

VIDEOS

FEATURES

• An intuitive user interface with a large, responsive colour touchscreen makes carrying out tasks easy.

• Scalable support for mobile and flexible work styles can increase efficiency by allowing workers to capture or print documents and access certain cloud applications on the go.

• Advanced Personalisation enables a unique, personal experience across a fleet, creating a customized user experience tailored to meet each user’s workflow needs.

• Scan and convert documents to Searchable PDF, Microsoft® Word, and Microsoft® PowerPoint files through a single-pass duplexing document feeder that holds up to 200 originals.

• Create professional-looking reports, booklets, newsletters, manuals, proposals, and contracts with flexible finishing options such as professional punching, folding, document insertion, and booklet making.

• The optional imagePASS print controller, an ideal choice for busy operations, provides robust processing capabilities, variable data printing (VDP), and a print production workflow.

• Control who has access to the device with authentication by using the standard Universal Login Manager application.

• Help prevent unauthorized distribution of sensitive information with an array of standard and optional document security features.

• Help ensure information privacy and security across your entire network with IPsec, port filtering capabilities, and SSL technology.

• Canon’s signature reliability and engine technologies provide reliable high quality output to meet the needs of busy departments and Central Reprographics Departments (CRDs)/In-plant Printers.

• State-of-the-art imaging technologies and toner allow for consistently striking images in rich black-and-white tones and 1,200 dpi print resolution.

• Designed to achieve maximum uptime with status notifications to help keep supplies replenished, intuitive user maintenance videos, the ability to replace toner on the fly, and automatic job re-routing (with optional solutions).

• The ability to pre-configure devices makes installation easy and fleet management is simplified with the capability to synchronize settings across multiple devices.

• Canon’s device management tools give you a centralized point of control across your entire fleet, including the ability to check device status and consumables, turn off devices remotely, capture meter readings, as well as manage address books and printer drivers.

• Standard Genuine Adobe PostScript and PCL support integration with enterprise applications and legacy systems to help streamline business processes.

• The ability to apply print policies, monitor output, and restrict usage by user helps reduce unnecessary printing, encourages cost recovery, and can help save money on paper and toner.

• Tight integration with output management solutions, such as uniFLOW, provides the ability to carry out detailed tracking, reporting, and cost analysis.

• Quality and reliability, combined with remote diagnostics and assistance, can help reduce costs by minimizing downtime and time spent by IT resolving issues.

• Consistent user operation combined with remote and centralized fleet management can help simplify IT management of devices and entire fleets.

• Fusing technologies, pO toner, and innovative sleep mode features help lower overall energy consumption.

• Help minimize waste with default 2-sided printing, secure printing, and the ability to hold print jobs, preview them and change print settings at the device, helping to achieve the results you want the first time.

• Incorporates sustainable design, with the use of recycled materials and bio-based plastic, and a focus on minimizing environmental impact.

• ENERGY STAR qualified and rated EPEAT Silver.

Canon Mono Multi-Function Copier – iR ADV DX 8705 / 8795 / 8786 Specifications
Main Unit
Machine TypeA3 Monochrome Laser Multifunctional
Core FunctionPrint, Copy, Scan, Send, Store and Optional Fax
Processor1.75GHz Dual Core Processor
Control PanelStandard: 10.1″ TFT LCD WSVGA Color Touch panel
Optional: 10.4″ TFT LCD SVGA Color Upright Touch panel.
MemoryStandard: 3.0GB RAM
Hard Disk DriveStandard*1: 320GB (available disk space: 250GB)
Optional: 250GB, 1TB
Mirroring Hard Disk DriveOptional
Interface ConnectionNetwork
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth Low Energy

Others
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1;
Optional: Serial Interface, Copy Control Interface
Paper Supply Capacity (A4, 80gsm)Standard: 4,200 sheets
100-sheet Multi-purpose tray x 1
1,500-sheet Paper Deck x 2
550-sheet Paper Cassette x 2

Maximum: 7,700 sheets (with POD Deck Lite-C1 or Paper Deck Unit-E1)
Paper Output Capacity (A4, 80 gsm)250 sheets (with Copy Tray-R2).
Maximum: 5,000 sheets (High-Volume Stack mode “ON” with Staple Finisher-W1 PRO or Booklet Finisher-W1 Pro)

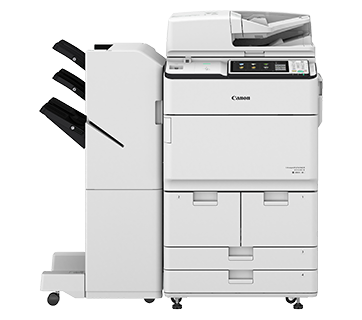

Finishing CapabilitiesWith options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, Half-fold, C-fold, Accordion-Z fold, Double Parallel-fold, Trimming
Supported Media TypesMulti-purpose tray:
Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Labels, Pre-punched, Letterhead, Tab*2

Paper Decks (Right/Left):
Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead

Paper Cassettes (Upper/Lower):
Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead, Tab*2
Supported Media SizesMulti-purpose tray:
Standard size: SRA3, A3, A4, A4R, A5*3, A5R, A6R*4, B4, B5, B5R
Custom size: 100.0 x 148.0 mm to 330.2 x 487.7 mm
Free Size : 100.0 x 148.0 mm to 330.2 x 487.7 mm

Paper Decks (Right/Left):
Standard size: A4, B5

Paper Cassettes (Upper/Lower):
Standard size: SRA3, A3, A4, A4R, A5R, B4, B5, B5R
Custom size: 139.7 x 182.0 mm to 330.2 x 487.7 mm
Supported Media WeightsMulti-purpose tray: 52 to 256 gsm
Paper Decks (Right/Left): 52 to 220 gsm
Paper Cassettes (Upper/Lower): 52 to 220 gsm
Duplex: 52 to 220 gsm
Warm-up TimeQuick Startup Mode: 4 seconds or less*5
From Deep Sleep Mode: 60 seconds or less
From Power On: 60 seconds or less*6
Dimensions (W x D x H)Standard (including 1-pass DADF and flat touch panel): 670 x 770 x 1,185 mm

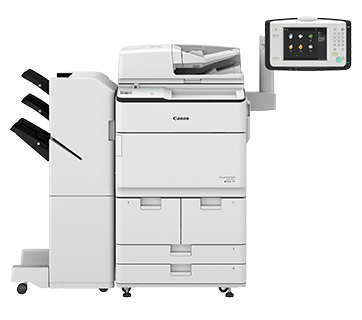

With optional Upright touch panel: 1,170 x 770 x 1,252 mm
Installation Space (W x D)Basic: 1,533 x 1,353 mm (with Multi-purpose tray/upper-right cover open + Front Cover open + Copy Tray)

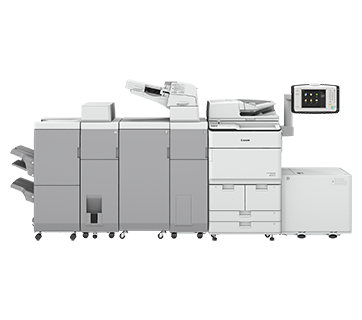

Fully configured: 5,068 x 1,409 mm (with POD Deck Lite-C1 + Document Insertion Unit-N1 + Multifunction Professional Puncher-B1 + Paper Folding Unit-J1 + Booklet Finisher-W1 Pro + Booklet Trimmer-F1 + Main unit Front Cover open)
WeightStandard: approx. 221 kg*7
With optional Upright touch panel: approx. 225 kg*8
Print
Print SpeediR-ADV DX 8705:
up to 105 ppm (A4), up to 54 ppm (A3), up to 76 ppm (A4R), up to 105 ppm (A5R)

iR-ADV DX 8795:
up to 95 ppm (A4), up to 50 ppm (A3), up to 69 ppm (A4R), up to 95 ppm (A5R)

iR-ADV DX 8786:
up to 86 ppm (A4), up to 44 ppm (A3), up to 63 ppm (A4R), up to 86 ppm (A5R)
Print Resolution (dpi)1,200 x 1,200
Page Description LanguagesStandard: UFR II (standard)
Optional: PCL 6, Adobe® PostScript® 3™
Direct PrintSupported file types: PDF, EPS, TIFF/JPEG and XPS
Printing from Mobile and CloudAirPrint, Mopria, Google Cloud Print, Canon Business Print, and uniFLOW Online

A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements.
Please contact your sales representative for further information.
FontsPS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WTJ / K / S / T*9 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*10
Print FeaturesSecured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced Hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer
Operating SystemUFRII:
Windows®7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later)

PCL:
Windows®7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019

PS:
Windows®7/ 8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.10 or later)

PPD:
Windows®7/8.1/10, MAC OS X (10.9 or later)

As of July, 2019.
Copy
Copy SpeediR-ADV DX 8705:
up to 105 ppm (A4), up to 54 ppm (A3), up to 76 ppm (A4R), up to 105 ppm (A5R)

iR-ADV DX 8795:
up to 95 ppm (A4), up to 50 ppm (A3), up to 69 ppm (A4R), up to 95 ppm (A5R)

iR-ADV DX 8786:
up to 86 ppm (A4), up to 44 ppm (A3), up to 63 ppm (A4R), up to 86 ppm (A5R)
First-Copy-Out Time (A4)Approx. 2.7 seconds or less
Copy Resolution (dpi)600 x 600
Multiple CopiesUp to 9,999 copies
Copy DensityAutomatic or Manual (9 Levels)
MagnificationVariable zoom: 25% to 400% (1% Increments)
Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%
Copy FeaturesPreset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Mirror Image, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Free Size Original, Reserved copy, Copy Sample
Scan
TypeSingle-pass Duplexing Automatic Document Feeder*11 [2-sided to 2-sided (Automatic)]
Document Feeder Paper Capacity (80 gsm)Up to 200 Sheets
Acceptable Originals and WeightsPlaten: Sheet, Book, and 3-Dimensional Objects

Document Feeder media weight*12:
1-sided scanning: 38 to 220 gsm (BW, CL)
2-sided scanning: 38 to 220 gsm (BW, CL)
Supported Media SizesPlaten max. scanning size: up to 297.0 x 431.8 mm

Document Feeder media size:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R
Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm
Scan Speed (BW/CL, A4)1-sided Scanning:
135/135 (300 x 300 dpi, send), 135/80 (600 x 600 dpi, copy)

2-sided Scanning:
270/270 (300 x 300 dpi, send), 165/90 (600 x 600 dpi, copy)
Scan Resolution (dpi)Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600
Pull Scan SpecificationsColour Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows®7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server 2016
Scan MethodPush Scan, Pull Scan, Scan to Box, Scan to Advanced Box, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud (uniFLOW Online)
Send
DestinationStandard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box
Optional: Super G3 FAX, IP Fax
Address BookLDAP (2000) / Local (1600) / Speed dial (200)
Send Resolution (dpi)Push: up to 600 x 600
Pull: up to 600 x 600
Communication ProtocolFile: FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV
E-mail/I-Fax: SMTP, POP3
File FormatStandard: TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
Universal Send FeaturesOriginal Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages
Fax
Maximum Number of Connection Lines4
Modem SpeedSuper G3: 33.6 kbps
G3: 14.4 kbps
Compression MethodMH, MR, MMR, JBIG
Resolution (dpi)400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)
Sending / Receiving Size“Sending: A3, A4, A4R, A5*13, A5R*13, B4, B5*14, B5R*13
Receiving: A3, B4, A4, A4R, A5R , B5, B5R
Fax MemoryUp to 30,000 pages (2,000 jobs)
Speed DialsMax. 200
Group Dials / DestinationsMax. 199 dials
Sequential BroadcastMax. 256 addresses
Memory BackupYes
Fax FeaturesSender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log
Store
Mail Box (Number supported)100 User Inboxes
1 Memory RX Inbox
50 Confidential Fax Inboxes
Maximum 30,000 Pages (2,000 jobs) Stored
Advanced BoxCommunication Protocol: SMB or WebDAV
Supported Client PC: Windows® 8.1/10
Concurrent Connections (Max.): SMB:64, WebDAV:3
Advanced Box Available Disc SpaceStandard: 16 GB
(With option: max. 480GB)
Advanced Box FeaturesAuthentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore
Security
Authentication and Access ControlStandard: User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)
Document SecurityPrint Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*15), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark)
Network SecurityTLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception
Device SecurityProtecting HDD Data (HDD Data Encryption (FIPS140-2 Validated), HDD Data Overwrite Erase, HDD Lock), Standard HDD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection)
Optional: IEEE2600.2 (Common Criteria Certification) (TBD)
Device Management and AuditingAdministrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting
Environmental
Operating EnvironmentTemperature: 10 to 30ºC
Humidity: 20 to 80 % RH (Relative Humidity)
Power Source220-240V, 50/60Hz, 10A
Power ConsumptionMaximum: Approx. 2,400 W
Standby: Approx. 217 W*16
Sleep mode: Approx. 0.9 W*17
Consumables
Toner Cartridge/sNPG-53 Black Toner
Toner (Estimated Yield @ 5% Coverage)70,000 pages
Software and Printer Management
Tracking and ReportingUniversal Login Manager (ULM)
uniFLOW Online Express
Remote Management ToolsiW Management Console
eMaintenance
Content Delivery System
Scanning SoftwareNetwork ScanGear
Optimisation ToolsCanon Driver Configuration Tool
NetSpot Device Installer
PlatformMEAP (Multifunctional Embedded Application Platform)
Document PublishingIW DESKTOP
Fiery Print Controller Specifications (External)
Optional/StandardOptional on all models
NameimagePASS-Y3 V1.1 (Server)
Print Resolution (dpi)1200 x 1200, 600 x 600
Print Resolution (dpi)1200 x 1200, 600 x 600
Standard Page Description Language(s)PCL6, Adobe® PostScript® 3™
Memory8GB (2 x 4GB)
Hard Disk Drive500 GB SATA
ProcessorIntel Pentium G4400 (3.3 GHz)
SystemFS350Pro
FontsPS: 138 Fonts
PCL: 113 Fonts
Supported Operating SystemsWindows 7 64 bit / Windows 8.1 64 bit / Windows 10 64 bit / Windows Server 2008 R2 64bit only / Windows Server 2012 64bit only (Only Printer driver support) / Windows Server 2012 R2 64bit only / Windows Server 2016 R2 64 bit only, MAC OS (10.11,10.12, 10.13, 10.14)
Interface2 x Ethernet (1000Base-T/100Base-TX/10Base-T)
USB 3.0 x 2 (rear), x 3 (front on Fiery Quick Touch TM)
USB 2.0 x 4 (rear)
Network protocolsTCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP)
Direct PrintPDF1.7, EPS, TIFF6, JDF1.4/JMF (Optional)
VDPFreeForm v1, v2.1, PPML, PDF/VT-1, PDF/VT-2, Creo VPS
Fiery Print Controller Standard FeaturesFiery Command WorkStation6 / Paper Catalog / Fiery Remote Scan / Fiery Hot Folders & Virtual Printers / Fiery JDF
Fiery Print Controller OptionsFiery Impose / Fiery Compose / Fiery Impose and Compose / Removable HDD kit / Image Viewer
HW PlatformNX One
Base OSWindows 10 IoT Enterprise 2019 LTSC
Power SourceAC100-240V, 50Hz/60Hz, 3.0A (100V) – 1.5A (240V)
Maximum Power Consumption53 W
Dimensions (W x D x H)203 x 248 x 384 mm
WeightServer unit only: Approx. 5.9 kg
Paper Supply Options
Paper Deck Unit-E1Paper Capacity: 3,500 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead
Paper Size: A4, B5
Paper Weight: 52 to 256 gsm
Power Source: from the Main Unit
Dimensions (W x D x H): 340 x 630 x 572 mm (attached to the main unit)
Weight: Approx. 34 kg
POD Deck Lite-C1Paper Capacity: 3,500 sheets (80 gsm)

Paper Type: Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab

Paper Size:
SRA3, A3, A4, A4R, A5R, B4, B5, B5R
Custom Size (139.7 x 182.0 mm to 330.2 x 487.7 mm)

Paper Weight: 52 to 256 gsm

Power Source: 220-240V, 50/60Hz, 1.2A

Dimensions (W x D x H): 633 x 686 x 574 mm (attached to the main unit)

Weight: Approx. 68 kg
Other
Copy Tray-R2Provides a simple tray for basic output needs.
Capacity: 250/100 sheets (1-sided/2-sided, 80 gsm)
Dimensions (W x D x H): 420 x 382 x 175 mm
Staple Finisher-AC1*18Tray Capacity (with 80gsm paper):
Upper Tray:
A4, A5, A5R, A6R, B5: 250 sheets
A3, A4R, B4, B5R: 125 sheets
SRA3: 30 sheets
Mid Tray: Same as upper tray
Lower Tray:
A4, A5, A5R, B5: 3,000 sheets
SRA3, A3, A4R, B4, B5R: 1,500 sheets
A6R: 250 sheets

Paper Weight: 52 to 256 gsm

Staple Position: Corner, Double

Staple Capacity:
A4, B5: 65 sheets (52 to 90 gsm)
A3, A4R, B4: 40 sheets (52 to 90 gsm)

Eco Staple: A3, A4
5 sheets (52 to 64 gsm)
4 sheets (65 to 81.4 gsm)
3 sheets (81.5 to 105 gsm)

Staple On Demand: 65 sheets (52 to 90 gsm)

Power Source: From the main unit

Dimensions (W x D x H): 656 x 623 x 1,195 mm (when the extension tray and rotary tray are extended)

Weight: Approx. 36 kg
Booklet Finisher-AC1*18(Includes the above Staple Finisher-AC1 basic staple specifications.)

Saddle Stitch paper size: A3, A4R, B4, Custom Size (182.0 x 210.0 mm to 304.8 x 457.2 mm)
Saddle Stitch Staple Capacity: 20 sheets x 10 sets (52 to 81.4 gsm) (including 1 cover sheet up to 256 gsm)
Non Staple Folded Bunch Capacity: 3 sheets (52 to 105 gsm)

Power Source: From the main unit

Dimensions (W x D x H): 656 x 623 x 1,195 mm (when the extension tray and rotary tray are extended)

Weight: Approx. 60 kg
Staple Finisher-X1Tray Capacity (with 80gsm paper):
Upper Tray:
A4, A5R, B5: 1,500 sheets
SRA3, A3, A4R, A5, B4, B5R: 750 sheets
A6R: 250 sheets
Mid Tray:
A4, A5R, B5: 250 sheets
A3, A4R, A5, A6R, B4, B5R: 125 sheets
SRA3: 30 sheets
Lower Tray:
A4, B5: 2,500 sheets (Cascade-Load mode)
A4, A5R, B5: 1,500 sheets
SRA3, A3, A4R, A5, B4, B5R: 750 sheets
A6R: 250 sheets

Paper Weight: 52 to 256 gsm

Staple Position: Corner, Double

Staple Capacity:
A4, B5: 100 sheets (52 to 80 gsm)
A3, A4R, B4: 50 sheets (52 to 80 gsm)

Power Source: 100-240V AC, 50-60 Hz, 2.8A

Dimensions (W x D x H): 782 x 765 x 1,040 mm (when the extension tray is extended)

Weight: Approx. 64 kg
Booklet Finisher-X1(Includes the above Staple Finisher-X1 basic specifications.)

Saddle Stitch paper size:
SRA3, A3, A4R, B4, Custom Size (195.0 x 270.0 mm to 330.2 x 457.2 mm)

Saddle Stitch Staple Capacity:
20 sheets x 5 sets (60 to 81.4 gsm) (including 1 cover sheet up to 256 gsm)

Non Staple Folded Bunch Capacity: 5 sheets (60 to 105 gsm)

Power Source: 100-240V AC, 50-60 Hz, 2.8A

Dimensions (W x D x H): 896 x 765 x 1,040 mm (when the extension tray is extended)

Weight: Approx. 110 kg
Staple Finisher-W1 PROTray Capacity (with 80gsm paper):
Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 1,000 sheets
Z-Fold: A3, B4: 30 sheets
Half-Fold: A4R 50sheets
Lower Tray:
If the High-Volume Stack Mode is set to “ON”:
A4, B5: 4,000 Sheets
A4R, B5R: 2,000 Sheets
SRA3, A3, B4: 1500 Sheets
If the High-Volume Stack Mode is set to “OFF”:
A4, B5: 2,000 Sheets
SRA3, A3, A4R, B4, B5R: 1,000 Sheets

Paper Weight: 52 to 256 gsm

Staple Position: Corner, Double

Staple Capacity: Corner and Double Stapling:
A4, B5: 100 sheets (52 to 80 gsm)
A3, A4R, B4, B5R: 50 sheets (52 to 81.4 gsm)

Power Source: 220-240V/50-60 Hz/8A

Dimensions (W x D x H): 890 x 792 x 1,239 mm (when the extension tray is extended)

Weight: Approx. 130 kg
Booklet Finisher-W1 PRO(Includes the above Staple Finisher-W1 PRO basic specifications.)

Saddle Stitch paper size:
SRA3, A3, A4R, B4, Custom Size (210.0 x 279.4 mm to 330.2 x 487.7 mm)

Saddle Stitch Staple Capacity: 25 sheets (52 to 80 gsm) (including 1 cover sheet up to 256 gsm)

Non Staple Folded Bunch Capacity: up to 5 sheets (52 to 209 gsm)

Power Source: 220-240V, 50-60 Hz, 8A

Dimensions (W x D x H): 1,060 x 792 x 1,239 mm (when the extension tray is extended)

Weight: Approx. 180 kg
2/3 Hole Puncher Unit-A1(Requires either the Staple Finisher-AC1 or Booklet Finisher-AC1)

Two or Three Holes
Acceptable Punch Paper Weight: 52 to 256 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R
Three holes: A3, A4, B4, B5

Power Source: From the finisher
2/4 Hole Puncher Unit-A1(Requires either the Staple Finisher-AC1 or Booklet Finisher-AC1)

Two or Four Holes
Acceptable Punch Paper Weight: 52 to 256 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R
Four holes: A3, A4

Power Source: From the finisher
Puncher Unit-BF1(Requires either the Staple Finisher-X1 or Booklet Finisher-X1)

Two or Three Holes
Acceptable Punch Paper Weight: 52 to 256 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5
Three holes: A3, A4

Power Source: From the finisher
Puncher Unit-BG1(Requires either the Staple Finisher-X1 or Booklet Finisher-X1)

Two or Four Holes
Acceptable Punch Paper Weight: 52 to 256 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B5R
Four holes: A3, A4

Power Source: From the finisher
Puncher Unit-BS1(Requires either the Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO)

Two or Three Holes
Acceptable Punch Paper Weight: 52 to 256 gsm
Acceptable Punch Paper Size:
Two holes: Custom size (182.0 x 182.0 mm to 297.0 x 432.0 mm)
Three holes: Custom size (240.0 x 182.0 mm to 297.0 x 432.0 mm)

Power Supply: From the finisher
Puncher Unit-BT1(Requires either the Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO)

Two or Four Holes
Acceptable Punch Paper Weight: 52 to 256 gsm
Acceptable Punch Paper Size:
Two holes A3, A4, A4R, A5, B4, B5, B5R, Custom size (182.0 x 182.0 mm to 297.0 x 432.0 mm, excluding 203 x 257 mm to 297 x 270 mm)
Four holes A3, A4, B4, B5, Custom size (257.0 x 182.0 mm to 297.0 x 432.0 mm)

Power Supply: From the finisher
Puncher Unit-BU1(Requires either the Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO)

Four Holes
Acceptable Punch Paper Weight: 52 to 256 gsm
Acceptable Punch Paper Size:
Four holes A3, A4, A5, B4, B5, Custom size (257.0 x 182.0 mm to 297.0 x 432.0 mm)

Power Supply: From the finisher
Multi Function Professional Puncher-B1(Requires either the Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO)

Acceptable Punch Paper Weight:
Bypass: 75 to 256 gsm
Punch: 75 to 256 gsm

Acceptable Punch Paper Size:
Bypass: 100 x 148 mm to 330.2 x 487.7 mm
Punch: A3, A4, A4R, A5

Supported Punch Dies (optional):
A4: Loose Leaf (2- or 4- hole), Velo Bind (12-hole), Plastic comb (21-hole), Twin Loop (23- or 34- hole), Color Coil (47-hole)

Power Source: 230V, 50Hz, 2.0 A
Dimensions (W x D x H): 445 x 795 x 1,040 mm

Weight: 102 kg
Inner Booklet Trimmer-A1(Requires Booklet Finisher-X1)

Waste Tray Capacity: Approx. 1,500 Sheets
Acceptable Paper Weight: 60 to 256 gsm
Trim Amount: 2 to 20 mm
Acceptable Paper Size: SRA3, A3, A4R, B4, Custom size: 195 x 270 mm to 330.2x 457.2 mm

Power Source: From the finisher
Booklet Trimmer-F1(Requires Booklet Finisher-W1 PRO)

Booklet Capacity: 10 booklets (booklet size: A4, 50 sheets, 80 gsm)
Acceptable Paper Weight: 52 to 256 gsm, 64 to 300gsm (cover sheet only)
Acceptable Paper Size:
SRA3, A3, A4R, B4, Custom size: 210.0 x 279.4 mm to 330.2 x 487.7 mm

Trim Amount: 2 to 28 mm
Trimming Capacity: up to 25 sheets (50 sheets by Half-Fold) (52 to 80 gsm)
Waste Tray Capacity: Approx. 5,000 Sheets

Power Source: From the Booklet Finisher-W1 PRO

Dimensions: 2,095 x 790 x 1,040 mm (including joint)

Weight: Approx. 178 kg
Document Insertion Unit-N1(Requires either the Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO)

Number of Trays: 2
Tray Capacity (with 80gsm paper):
Upper tray: 200 sheets
Lower tray: 200 sheets

Acceptable Paper Type: Thin, Plain, Recycled, Colour, Heavy, Coated, Tracing, Bond, Pre-punched, Letterhead, Tab
Acceptable Paper Size:
SRA3, A3, A4, A4R, B4, B5, B5R
Custom size: 182 x 182 mm to 330.2 x 487.7 mm

Acceptable Paper Weight: 52 to 256 gsm

Power Supply: 100-240V, 50/60Hz, 1.0 A

Dimensions (W x D x H): 336 x 793 x 1,407 mm (attached to the device: width excluding document tray)

Weight: Approx. 61 kg
Paper Folding Unit-J1(Requires either the Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO)

Supported Folding Type: Z-Fold, C-Fold, Accordion-Z-Fold, Double Parallel-Fold, Half-Fold
Acceptable Paper Type: Thin, Plain, Recycled, Colour, Bond
Acceptable Paper Sizes:
Z-Fold: A3, A4R, B4
C-Fold, Accordion Z-Fold, Half-Fold, Double-parallel Fold: A4R

Acceptable Paper Weight:
Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold: 52 to 105gsm
Double Parallel Fold: 52 to 90gsm

Output Capacity (with 80 gsm paper):
C-Fold/Accordion Z-Fold: approx. 40 sheets
Double Parallel-Fold: approx. 25 sheets
with Staple Finisher-X1 or Saddle Finisher-X1 (in total)
Z-Fold: A3, B4: 70 sheets, A4R: 30 sheets
Half-Fold: A4R: 30 sheets
with Staple Finisher-W1 PRO or Saddle Finisher-W1 PRO (in total)
Z-Fold: A3, B4: 60 sheets
Half-Fold: A4R: 50 sheets

Power Source: From the finisher

Dimensions (W x D x H): 336 x 793 x 1,190 mm

Weight: Approx. 71 kg
Card ReadersCopy Card Reader-F1
Copy Card Reader Attachment-A4
OthersUpright Control Panel-J1
Utility Tray-B1
Tab Feeding Attachment Kit-B1
Numeric Keypad-A1
Finisher Jogger Kit-A1
Security
Device SecurityiR-ADV Security Kit-AG1 for IEEE 2600 Common Criteria Certification (Available at later date)
Data Security2.5inch/250GB HDD-N1
2.5inch/1TB HDD-P1
HDD Mirroring Kit-J1
System and Controller Options
Print AccessoriesPCL International Font Set-A1
PCL PRINTER KIT-BD1/CK1
PS PRINTER KIT-BD1/CK1
PCL Asian Font Set-A1
Barcode PrintingBarcode Printing Kit-D1
EFI-Fiery Based ControllerimagePASS-Y3 V1.1
EFI-Fiery Based Controller OptionsFiery Impose
Fiery Compose
Fiery Impose and Compose
Fiery imageViewer
Removable HDD Kit-B6
System AccessoriesCopy Control Interface Kit-A1
Serial Interface Kit-K3
Connection Kit-A2 for Bluetooth LE
NFC Kit-E1
Fax AccessoriesSuper G3 FAX Board-AS1
Super G3 2nd Line Fax Board-AS1
Super G3 3rd/4th Line Fax Board-AS1
Remote Fax Kit-A1
Other Options
Accessibility AccessoriesADF Access Handle-A1
Voice Guidance Kit-G1
Voice Operation Kit-D1
Staple CartridgesStaple-N1
Staple-P1
Staple Cartridge-X1
Staple Cartridge-Y1
*1 A different initial HDD may be used.
*2 Tab Feeding Attachment-B1 is required.
*3 Supported media weights: more than 64 gsm.
*4 Supported media weights: more than 91 gsm.
*5 Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.
*6 Time from device power-on, until copy ready (not print reservation).
*7 Including DADF, flat touch panel and the toner bottle.
*8 Including DADF, Upright touch panel and the toner bottle.
*9 Optional PCL International Font Set-A1 is required.
*10 Optional Barcode Printing Kit-D1 is required.
*11 Detect Feeder Multi Sheet Feed is supported.
*12 An acceptable weights of A6R or smaller is 50 to 220gsm.
*13 Sent as A4.
*14 Sent as B4 short.
*15 Requires uniFLOW Online / uniFLOW.
*16 Reference value: measured one unit.
*17 0.9 W sleep mode may not be possible in all circumstances due to certain settings.
*18 Only available for iR-ADV DX 8786.

Product Catalogue PDF file : CANON Mono Multi-Function Copier iR ADV DX 8786 (293KB)

(You need to install Acrobat Reader to open the PDF files.)
