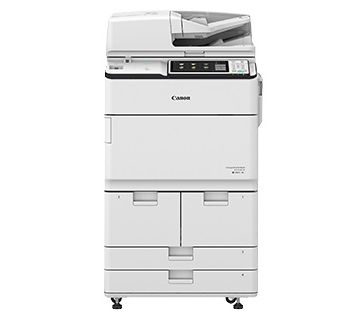

Canon Super Heavy Duty Mono Multi-Function Copier - iR ADV 8595 III
High performance, intuitive usability, versatile finishing
The imageRUNNER ADVANCE 8595 III delivers high performance and quality black-and-white output for high volume office environments and CRDs. These intelligent systems enhance productivity with versatile finishing options while maintaining an intuitive user experience.
- 95 ppm (Print) / 240ipm (Scan)
- Copy / Print / Scan / Send / Store
- 10.1-inch colour Touch Panel
- Print up to SRA3 size (11″ x 19″)
RSP : RM56,600.00 / unit.
FREE : 1 year on-site warranty.
RENTAL : RM1,550.00 / month.




Previous
Next
VIDEOS
FEATURES
• 10.1″ intuitive touchscreen with smartphone-like usability.
• A unique, customized experience tailored to individual preferencesusing My ADVANCE.
• Supports mobile solutions and integration with many popular cloud services like Google Drive.*1
• Scan and convert documents to searchable digital files in a varietyof file formats.
• Integration with Canon and various third-party software with embedded application platform.
*1 – Subscription to a third-party cloud service required. Subject to third-party cloud service providers’ terms and conditions.
• Advanced standard security feature set to help safeguard sensitive information and assist in regulatory compliance.
• Integrates with existing, third-party SIEM* systems to help provide real-time, comprehensive insights into potential threats to the network and printers.
• Technology to verify that the device boot process, firmware, and applications initialize without alteration at startup. McAfee Embedded Control*2 utilizes a whitelist to protect against malware and tampering of firmware and applications.
• Security policy settings can be controlled with a dedicated password, configured from a central location, and exported to other supported devices.
• Control access to the device and specific features, using a host of flexible authentication methods—PIN code, user name/password, or card access.*3
* Security Information and Event Management
*2 – Requires Unified Firmware Platform v3.9 or greater.
*3 – Requires additional option.
• Canon’s signature reliability and engine technologies help keep productivity high and minimize the impact on support resources.
• Outstanding imaging technologies and toner allow for crisp text and consistent images in rich black-and-white tones.
• Designed to achieve maximum uptime with status notifications to help keep supplies replenished and intuitive maintenance videos for consumables replacement.
• Designed for quick, easy deployment.
• Remote diagnostics and parts life management for proactive maintenance and rapid fixes.
• Easy and intuitive to monitor device status and consumable levels, turn off devices remotely, observe meter readings, manage settings, and implement security policies.
• Common firmware and regular updates with Unified Firmware Platform (UFP) for continuous improvements and consistency across a fleet.
• Track and assess print, copy, scan, and fax usage and allocate costs to departments or projects.
• Apply print policies and restrict usage by user to help reduce unnecessary printing and contribute to cost efficiency.
• Standard cloud-based solution provides a centralized dashboard with up-to-the-minute insights into printer activity.
• Upgrade to uniFLOW server or cloud-based solutions for full accounting and reporting for compatible Canon and third-party devices, pull printing, job routing, and powerful scan workflows.
• A combination of fusing technologies and low-melting-point toner minimizes power requirements and helps achieve low energy consumption.
• Encourage environmentally-conscious work practices by enabling multiple settings that can help save paper and energy.
• ENERGY STAR® certified and rated EPEAT® Gold.*4 (imageRUNNER ADVANCE 8505i III/8595i III)
*4 – For current EPEAT rating (Gold/Silver/Bronze), please visit www.epeat.net.
Canon Mono Multi-Function Copier – iR ADV 8585 III / 8595 III / 8505 III Specifications | |
---|---|
Main Unit | |
Machine Type | A3 Monochrome Laser Multifunctional |
Core Functions | Print, Copy, Scan, Send, Store and Optional Fax |
Processor Speed | Canon Dual Custom Processor (Shared) |
Control Panel | Standard: 25.6 cm (10.1 inch) TFT LCD WSVGA Color Touch panel Optional: 26.4 cm (10.4 inch) TFT LCD SVGA Color Upright Touch panel |
Memory | Standard: 3.0 GB RAM |
Hard Disk Drive | Standard: 250 GB; Maximum: 1 TB |
Mirroring Hard Disk Drive | Optional (250 GB, 1 TB) |
Interface Connection | Network Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n); Optional: NFC, Bluetooth Low Energy Others Standard: USB 2.0 (Host) x2, USB 3.0 (Host) x1, USB 2.0 (Device) x1; Optional: Serial Interface, Copy Control Interface |
Paper Supply Capacity (A4, 80gsm) | Standard: 4,200 sheets 1,500-sheet Paper Deck x 2 + 550-sheet Paper Cassette x 2,100-sheet Multi-purpose Tray Maximum: 7,700 sheets (with POD Deck Lite-C1 or Paper Deck Unit-E1) |
Paper Output Capacity (A4, 80 gsm) | 250 sheets (with Copy Tray-R2) Maximum: 5,000 sheets (High-Volume Stack mode “ON” with Staple Finisher-W1 PRO or Booklet Finisher-W1 Pro) |
Finishing Capabilities | Standard: Collate, Group With External finisher: Collate, Group, Offset, Staple, Staple On Demand, Eco Staple*1, Saddle Stitch*2, Trimming*3, Hole Punch*4, Professional Hole Punch (multiple patterns)*5, Document Insertion*6, Fold*7(C-, Z-, Half-, Double-parallel, Accordion-Z fold) |
Supported Media Types | Upper Left/Right Decks (1/2): Thin, Plain, Recycled, Colour, Thick, Pre-punched, Letterhead, Bond Lower Cassettes (3/4): Thin, Plain, Recycled, Colour, Thick, Pre-punched, Letterhead, Bond paper, Tab*8 Multi-purpose tray: Thin, Plain, Recycled, Colour, Thick, Pre-punched, Bond, Transparency, Labels, Letterhead, Tab, Tracing*9 |
Supported Media Sizes | Upper Left/Right Decks (1/2): Standard size: A4, B5 Lower Cassettes (3/4): Standard size: SRA3, A3, A4, A4R, A5R, B4, B5, B5R Custom size: 139.7 x 182 mm to 330.2 x 487.7 mm Multi-purpose tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 100.0 x 148.0 mm to 330.2 x 487.7 mm Free size: 100.0 x 182.0 mm to 330.2 x 487.7 mm |
Supported Media Weights | Paper Decks / Paper Cassettes: 52 to 220 gsm Multi-purpose tray: 52 to 256 gsm Duplex: 52 to 220 gsm |
Warm-up Time | From Power On: 60 Seconds or Less*10 From Sleep Mode: 60 Seconds or Less |
Dimensions (W x D x H) | Standard: 670 x 779 x 1,220 mm With optional Upright touch panel: 1,481 x 770 x 1,252 mm |
Installation Space (W x D) | Basic: 1,533 x 1,353 mm (with Multi-purpose tray/upper-right cover open + Front cover open + Copy Tray) Fully configured: 5,068 x 1,400 mm (with POD Deck Lite-C1 + Document Insertion Unit-N1 + Multi Function Professional Puncher-B1 + Paper Folding Unit-J1 + Booklet Finisher-W1 Pro + Booklet Trimmer-F1) |
Weight | Standard (with flat touch panel): Approx. 236 kg*11 With optional Upright touch panel: Approx. 240 kg*12 |
Print Speed (ppm) | iR-ADV 8505 III Up to 105 (A4), up to 54 (A3), up to 76 (A4R), up to105 (A5R) iR-ADV 8595 III Up to 95 (A4), up to 50 (A3), up to 69 (A4R), up to 95 (A5R) iR-ADV 8585 III Up to 85 (A4), up to 44 (A3), up to 63 (A4R), up to 85 (A5R) |
Print Resolution (dpi) | Data processing resolution: 1,200 x 1,200, 600 x 600 Output resolution: 1,200 x 1,200 |
Page Description Languages | Standard: UFR II (standard) Optional: PCL 6, Genuine Adobe PostScript Level 3 |
Direct Print | Available from USB memory, Advanced box, Remote UI and Web Access*13 Supported File Types: PDF, TIFF, JPEG, EPS,6 XPS |
Printing from Mobile and Cloud | AirPrint, Mopria, Google Cloud Print, and Canon Business Print, and uniFLOW Online A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information |
Fonts | PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WTJ/K/S/T*14 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*15 PS fonts: 136 Roman |
Print Features | Suspend Job Timeout, Subset Finishing (PS only), Profile Settings, Secured Print, Watermark, Header/Footer, Page Layout, Two-sided Printing, Collating, Booklet Printing, Grouping, Mixed Paper Sizes/ Orientations, Offsetting, Front/Back Covers, Toner Reduction, Poster Printing, Forced Hold Printing |
Operating System | UFRII: Windows 7 / 8.1 /10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016, MAC OS X (10.9 or later) PCL: Windows 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016 PS: Windows 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016, MAC OS X (10.9 or later) PPD: MAC OS X (10.3.9 or later), Windows 7 / 8.1/ 10 |
Copy | |
Copy Speed (ppm) | iR-ADV 8505 III Up to 105 (A4), up to 54 (A3), up to 76 (A4R), up to105 (A5R) iR-ADV 8595 III Up to 95 (A4), up to 50 (A3), up to 69 (A4R), up to 95 (A5R) iR-ADV 8585 III Up to 85 (A4), up to 44 (A3), up to 63 (A4R), up to 85 (A5R) |
First-Copy-Out Time (A4) | Approx. 2.7 seconds or less |
Copy resolution (dpi) | Reading: 600 x 600 Printing: 1,200 x 1,200 |
Multiple Copies | Up to 9,999 copies |
Copy Density | Automatic or Manual (9 Levels) |
Magnification | 25% – 400% (1% Increments) |
Preset Reductions | 25%, 50%, 61%, 70%, 81%, 86% |
Preset Enlargements | 115%, 122%, 141%, 200%, 400% |
Basic Copy Features | Preset R/E Ratios by Area, Paper Setting, Previous Setting, Favourite Setting, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel |
Special Copy Features | Book to Two Pages, Two-sided Original, Finishing, Booklet, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Density Adjustment, Original Type Selection, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Shift, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Job Done Notice, Mirror Image, Print on Tab, Store in Mail Box, Superimpose Image, Cascade Copy, Copy ID Card, Skip Blank Pages, Detect Feeder Multi Sheet Feed , Free Size Original |
Scan | |
Standard Type | Colour flatbed plus Single-pass duplex automatic document feeder*16 (1-Pass duplex scan) [2-sided to 2-sided (Automatic with DADF)] |
Document Feeder Paper Capacity (80 gsm) | 300 Sheets |
Acceptable Originals and Weights | Platen: Sheet, Book, 3-Dimensional Objects (Height: Up to 50 mm; Weight: up to 2kg) Document feeder media weight: 1-sided scanning: 38 to 220 gsm (BW), 64 to 220 gsm (CL) 2-sided scanning: 50 to 220 gsm (BW), 64 to 220 gsm (CL) |
Supported Media Sizes | Platen: Max. scanning size: 297.0 x 431.8 mm Document feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R, B6R Custom size: 128.0 x 139.7 mm to 304.8 x 431.8 mm ) |
Scan Speed (ipm: BW/CL; A4) | 1-sided Scanning: 120/120 (300 dpi, Send), 120 (600 dpi, BW Copy) 2-sided Scanning: 240/220 (300 dpi, Send), 150 (600 dpi, BW Copy) |
Scan Resolution (dpi) | 600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200, 200 x 100, 150 x 150, 100 x 100 |
Pull Scan Specifications | Colour Network ScanGear2. For both TWAIN and WIA Supported OS: Windows 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016 |
Scan Method | Send functionality available on all models Scan to USB Memory: Available on all models Scan to mobile devices and cloud-based services: A range of solutions is available to provide scanning to mobile devices or cloud-based services depending on your requirements. Please contact your sales representative for further information. TWAIN / WIA Pull scanning available on all models |
Send | |
Destination | E-Mail/Internet FAX (SMTP), SMB v3.0, FTP, WebDAV, Mail Box, Super G3 Fax (optional), IP Fax (optional) |
Address Book | LDAP (2000)/Local (1600)/Speed dial (200) |
Send Resolution (dpi) | 600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200, 200 x 100, 150 x 150, 100 x 100 |
Communication Protocol | File: FTP (TCP/IP), SMB v3.0, WebDAV E-mail/I-Fax: SMTP, POP3 |
File Format | Standard: TIFF, JPEG, PDF (Compact, Apply Policy, Optimise for Web, PDF A/1-b, Encrypted, Device Signature ), XPS (Compact, Device Signature). Optional: PDF (Trace&Smooth, Searchable, User Signature), XPS (Searchable, User Signature), Office Open XML (PowerPoint, Word) |
Universal Send Features | Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Sender’s Name (TTI), Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages, Detect Feeder Multi Sheet Feed |
Fax | |
Optional / Standard | Optional on all models |
Maximum Number of Connection Lines | 4 |
Modem Speed | Super G3: 33.6 kbps G3: 14.4 kbps |
Compression Method | MH, MR, MMR, JBIG |
Resolution (dpi) | 400 x 400, 200 x 400, 200 x 200, 200 x 100 |
Sending / Recording Size | A3, A4, A4R, A5*17, A5R*17, B4, B5*18, B5R*17 |
FAX / Memory | Up to 30,000 pages |
Speed Dials | Max. 200 |
Group Dials / Destinations | Max. 199 dials |
Sequential Broadcast | Max. 256 addresses |
Memory Backup | Yes |
Fax Features | Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density (for Scanning), Sharpness, Copy Ratio, Erase Frame, Job Build, Sender’s Name (TTI), Selecting the Telephone Line, Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Detect Feeder Multi Sheet Feed |
Store | |
Mail Box (Number supported) | 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes, 30,000 Maximum Pages Stored |
Advanced Box | Communication Protocol: SMB or WebDAV Supported Client PC: Windows (Windows 7 / 8.1 / 10) Concurrent Connections (Max.): SMB: 64, WebADV: 3 (Active Sessions) |
Advanced Box Available Disc Space | Approx. 16GB (Standard HDD) Approx. 480GB (with option 1TB HDD) |
Advanced Box Features | Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support |
Memory Media | Standard: USB Memory |
Security | |
Authentication | Standard: User Authentication (Picture Login/Keyboard Authentication), Department ID Authentication, Access Management System Optional: My Print Anywhere secure print (Requires uniFLOW), uniFLOW Online Express Cloud based management software |
Data | Standard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption(FIPS140-2 Validated) Optional: Hard Disk Drive Mirroring, Hard Disk Drive removal, IEEE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW) |
Network | Standard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME |
Document | Standard: Secure Print, Adobe LiveCycle® Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device signature, Secure Watermarks Optional: User signature, Document Scan lock |
Environmental | |
Operating Environment | Temperature: 10 to 30 ºC Humidity: 20 to 80 % RH (Relative Humidity) |
Power Source | 220-240 V (±10 %), 50/60 Hz (±2 Hz), 10 A |
Power Consumption | Maximum: Approx. 2,400 W Standby: Approx. 219.8 W*19 Sleep mode: Approx. 0.9 W or less*20 |
Standards | Blue Angel |
Consumables | |
Toner Cartridge/s | NPG-53 Black Toner |
Toner (Estimated Yield @ 6% Coverage) | 70,000 pages |
Software and Printer Management | |
Tracking and Reporting | Universal Login Manager (ULM): Manage your costs easily by using the embedded reporting capability to identify and control costs on a user-based level by device. uniFLOW Online Express: Combining with ULM you can gain further control and highlight expenditures per users/department and pinpoint where costs can be scaled down from a central cloud based location. |
Remote Management Tools | iW Management Console: Server-based software for centralised management of a fleet of devices (includes monitoring or consumables, status monitoring and alerts, distribution of address books, configuration settings, firmware and MEAP applications, meter capture and reporting, driver and resource management) eMaintenance: Compatible with eMaintenance services via embedded RDS (Enables meter capture, automatic consumables management, remote diagnostics and reporting for service providers to offer efficient, fast and proactive maintenance) Content Delivery System: Allows the Remote distribution of firmware, iR options and MEAP applications; Remote User Interface (RUI) Web based interface to each device that helps to provide remote device management and control |
Scanning Software | Network ScanGear: TWAIN-compliant scanner driver that enables computers on a network to use the pull scan functionality of the device |
Optimisation Tools | Canon Driver Configuration Tool: A utility for changing the factory default settings of Canon print drivers NetSpot Device Installer: Simple utility software that allows you to make network protocol settings for Canon devices connected to your network |
Platform | MEAP (Multifunctional Embedded Application Platform): A powerful JAVA Embedded Platform for Canon devices which provides tight coupling between a range of software solutions and the device MEAP Web: Web service alternative to MEAP that allows MFP applications to be developed and deployed via web services |
Document Publishing | IW DESKTOP: Powerful print publishing software which easily combines documents from different sources and file formats, applies finishing with preview and templates to create professional looking documents. Includes PDF creation, annotation and compression capabilities for simple digital workflows such as proofing and authorisation |
Fiery Print Controller Specifications (External) | |
Optional / Standard | Optional on all models |
Name | imagePASS- Y3 (External) |
Print Resolution (dpi) | 1200 x 1200, 600 x 600 |
Standard Page Description Language(s) | PCL6, Adobe PostScript 3 |
Memory | 8GB (2 x 4GB) |
Hard Disk Drive | 500 GB SATA |
Processor | Intel Pentium G4400 (3.3 GHz) |
System | Fiery FS350 Pro |
Fonts | PS: 138 Fonts PCL: 113 Fonts |
Supported Operating Systems | Windows 7 32 and 64 bit / Windows 8.1 32 and 64 bit / Windows 10 32 and 64 bit/ Windows Server 2012 64bit only / Windows Server 2012 R2 64bit only / Windows Server 2016 R2 64 bit only, MAC OS (10.11, 10.12, 10.13, 10.14) |
Interface | 2 x Ethernet (1000Base-T/100Base-TX/10Base-T), USB 3.0 x 2 (rear), x 3 (front on Fiery Quick Touch TM), USB 2.0 x4 (rear) |
Network protocols | TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP) |
Direct Print | PDF1.7, EPS, TIFF6, JDF1.4/JMF(OP) |
VDP | FreeForm v1, v2.1, PPML, PDF/VT-1, PDF/VT-2, Creo VPS |
Standard Features | Fiery Command WorkStation6 / Paper Catalog, Fiery Remote Scan / Fiery Hot Folders & Virtual Printers / Fiery JDF |
Fiery Print Controller Options | Fiery Impose / Fiery Compose / Fiery Impose and Compose / Removable HDD kit / Fiery Image Viewer |
HW Platform | NX One |
Base OS | Windows 10 IoT Enterprise 2016 LTSB |
Power Source | AC100-240V, 50Hz/60Hz, 3.0A (100V) – 1.5A (240V)(TBD) |
Maximum Power Consumption | 53 W |
Dimensions (W x D x H) | 203 x 248 x 384 mm |
Weight | Server unit only: 5.9 kg |
Paper Supply Options | |
PAPER DECK UNIT-E1 | Paper Capacity: 3,500 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Pre-punched, Letterhead, Bond Paper Size: A4, B5 Paper Weight: 52 to 256 gsm Power Source: From the Main Unit Dimensions (W x D x H): 340 x 630 x 572 mm (attached to the main unit) Weight: Approx. 34 kg |
POD DECK LITE-C1 | Paper Capacity: 3,500 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Thick, Pre-punched, Letterhead, Bond, Transparency, Labels, Tab Paper Size: SRA3, A3, A4, A4R, A5R, B4, B5, B5R and Custom Size (139.7 x 182.0 mm to 330.2x 487.7 mm) Paper Weight: 52 to 256 gsm Power Source: 220-240V/1.2A 50/60Hz Dimensions (W x D x H): 633 x 686 x 574 mm (attached to the main unit) Weight: Approx. 68 kg |
Output options | |
COPY TRAY-R2 | Provides a simple tray for basic output needs Capacity: 250/100 sheets (1-sided/2-sided, 80 gsm) |
STAPLE FINISHER-V2*21?(External) | Number of Trays: 3 Upper Tray Capacity*22: A4, A5, A5R, A6R, B5: 250 sheets, SRA3, A3, A4R, B4, B5R: 125 sheets Mid Tray Capacity*22: A4, A5, A5R, A6R, B5: 250 sheets, SRA3, A3, A4R, B4, B5R: 125 sheets Lower Tray Capacity*22: A4, A5R, B5: 3,000 sheets, SRA3, A3, A4R, A5, B4, B5R: 1,500 sheets, A6R: 250 sheets Paper Weight: 52 to 256 gsm Staple Position: Corner, Double Staple Capacity: Corner and Double Stapling: A4, B5: 65 sheets (90 gsm), A3, A4R, B4: 30 sheets (90 gsm) Staple-Free Staple: A3, A4 5 sheets (52 to 64 gsm) 4 sheets (65 to 81.4 gsm) 3 sheets (81.5 to 105 gsm) Staple On Demand: 65 sheets (90 gsm) Dimensions (W x D x H): 656 × 623 × 1,195 mm (when the extension tray and rotary tray are extended) Weight: Approx. 35 kg |
BOOKLET FINISHER-V2*21 (External) | (Includes the above basic Staple Finisher-V2 basic specifications.) Saddle Stitch paper size: A3, A4R, B4, Custom Size (195.0 x 270.0 mm to 304.8 x 457.2 mm) Saddle Stitch Staple Capacity: 20 Sheets x 10 sets (52 to 81.4 gsm), including 1 cover Sheet up to (256 gsm) Non Staple Folded Bunch Capacity: up to 3 sheets (52 to 105 gsm) Dimensions (W x D x H): 656 x 623 x 1,195 mm (when the extension tray and rotary tray are extended) Weight: Approx. 58 kg |
STAPLE FINISHER-X1 (External) | Number of Trays: 3 Upper Tray Capacity*22: A4, A5R, B5: 1,500 sheets, SRA3, A3, A4R, A5, B4, B5R: 750 sheets, A6R: 250 sheets Mid Tray Capacity*22: A4, A5R, B5 250 sheets, A3, A4R, A5, A6R, B4, B5R 125 sheets Lower Tray Capacity*22: [Cascade-Load mode] A4, B5: 2,500 sheets [Random-Load mode] A4, A5R, B5: 1,500 sheets, SRA3, A3, A4R, A5, B4, B5R: 750 sheets, A6S: 250 sheets Paper Weight: 52 to 256 gsm Staple Position: Corner, Double Staple Capacity: Corner and Double Stapling: A4/B5: 100 sheets (80 gsm), A3/A4R/B4: 50 sheets (80 gsm) Power Supply: 100-240V AC, 50-60 Hz, 2.8A Dimensions (W x D x H): 782 x 765 x 1,040mm (when the extension tray is extended) Weight: Approx. 64 kg |
BOOKLET FINISHER-X1 (External) | (Includes the above basic Staple Finisher-X1 basic specifications.) Saddle Stitch paper size: SRA3, A3, A4R, B4, Custom Size (210.0 x 279.4 mm to 330.2 x 487.7 mm) Saddle Stitch Staple Capacity: 20 sheets x 10 5 sets (60 to 81 gsm) (including 1 cover sheet up to 256 gsm) Non Staple Folded Bunch Capacity: up to 5 sheets (60 to 105 gsm) Power Source: 100-240V AC, 50-60 Hz, 2.8A Dimensions (W x D x H): 896 x 765 x 1,040 mm (when the extension tray is not extended) Weight: Approx. 110 kg |
STAPLE FINISHER-W1 PRO (External) | Number of Trays: 2 Upper Tray Capacity*: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 1,000 sheets Lower Tray Capacity*: If the High-Volume Stack Mode is set to “OFF”: A4, B5: 2,000 Sheets, SRA3, A3, A4R, B4, B5R: 1,000 Sheets If the High-Volume Stack Mode is set to “ON”: A4, B5: 4,000 Sheets, A4R, B5R: 2,000 Sheets, A3, B4: 1500 Sheets, SRA3: 1,000 Sheets Paper Weight: 52 to 256 gsm Staple Position: Corner, Double Staple Capacity: Corner and Double Stapling: A4, B5: 100 sheets (52 to 80 gsm), A3, A4R, B4, B5R: 50 sheets (52 to 80 gsm) Power Supply: 220-240V, 50-60 Hz, 8A Dimensions (W x D x H): 890 x 792 x 1,239 mm (when the extension tray is extended) Weight: Approx. 130 kg |
BOOKLET FINISHER-W1 PRO (External) | (Includes the above Staple Finisher-W1PRO basic specifications.) Saddle Stitch paper size: SRA3, A3, A4R, B4, Custom Size (210.0 x 279.4 mm to 330.2 x 487.7 mm) Saddle Stitch Staple Capacity: 25 sheets x 10 sets (52 to 80 gsm) [including 1 cover sheet up to 256 gsm)] Non Staple Folded Bunch Capacity: up to 5 sheets (up to 209 gsm) Dimensions (W x D x H): 1,060 x 792 x 1,239 mm (when the extension tray is extended) Weight: Approx. 182 kg |
2/3 HOLE PUNCHER UNIT-A1 (2/3H) | (Requires either the Staple Finisher-V2 or Booklet Finisher-V2) Two or Three Holes Acceptable Punch Paper Weight: 52 to 256 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, B4, B5, B5R Three holes: A3, A4, B4, B5 Power Source: From the Main Unit |
2/4 HOLE PUNCHER UNIT-A1 (2/4H) | (Requires either the Staple Finisher-V2 or Booklet Finisher-V2) Two or Four Holes Acceptable Punch Paper Weight: 52 to 256 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, B4, B5, B5R ; Four holes: A3, A4 Power Source: From the main unit |
PUNCHER UNIT-BF1 (2/3H) | (Requires either the Staple Finisher-X1 or Booklet Finisher-X1) Two or Three Holes Acceptable Punch Paper Weight: 52 to 256 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, Three holes: A3, A4 Power Source: From the Finisher |
PUNCHER UNIT-BG1 (2/F4H) | (Requires either the Staple Finisher-X1 or Booklet Finisher-X1) Two or Four Holes Acceptable Punch Paper Weight: 52 to 256 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, B5R; Four holes: A3, A4 Power Source: From the Finisher |
PUNCHER UNIT-BS1 (2/3H) | (Requires either the Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO) Two or Three Holes Acceptable Punch Paper Weight: 52 to 256 gsm Acceptable Punch Paper Size: Two holes: Custom size (182.0 x 182.0 mm to 297.0 x 432.0 mm) Three holes: A3, A4, Custom size (240.0 x 182.0 mm to 297.0 x 432.0 mm) Power Source: From the Finisher |
PUNCHER UNIT-BT1 (2/F4H) | (Requires either the Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO) Two or Four Holes Acceptable Punch Paper Weight: 52 to 256 gsm Acceptable Punch Paper Size: Two holes A3, A4, A4R, A5, B4, B5, B5R, Custom size (182.0 x 182.0 mm to 297.0 x 432.0 mm) Four holes A3, A4, Custom size (257.0 x 182.0 mm to 297.0 x 432.0 mm) Power Supply: From the Finisher |
PUNCHER UNIT-BU1 (S4H) | (Requires either the STAPLE FINISHER-W1 PRO or BOOKLET FINISHER-W1 PRO) Four Holes Acceptable Punch Paper Weight: 52 to 256 gsm Acceptable Punch Paper Size: Four holes A3, A4, A4R, A5, Custom size (257.0 x 182.0 mm to 297.0 x 432.0 mm) Power Supply: From the Finisher |
MULTI FUNCTION PROFESSIONAL PUNCHER-B1 | (Requires either the Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO) Acceptable Punch Paper Weight: Bypass: 52 to 300 gsm, Punch: Plain: 75 to 300 gsm Coated: 118 to 300 gsm Acceptable Punch Paper Size: Bypass: 100 x 148 mm to 330.2 x 487.7 mm, Punch: SRA3, A3, A4, A4R Supported Punch Dies (optional): A4: Loose Leaf (2- or 4- hole), Velo Bind (12-hole), Plastic comb (21-hole), Twin Loop (23- or 34- hole), Color Coil (47-hole) Dimensions (W x D x H): 445 x 795 x 1,040 mm Weight: 102 kg Power Supply: 230V/50Hz/1.9 A |
INNER BOOKLET TRIMMER-A1 | (Requires Booklet Finisher-X1) Waste Tray Capacity: Approx. 1,500 Sheets Acceptable Paper Weight: 60 to 256 gsm Trim Amount: 2 to 20 mm Acceptable Paper Size: 210 x 279.4 to 330.2 x 487.7mm Power Supply: From the finisher |
BOOKLET TRIMMER-F1 | (Requires Booklet Finisher-W1 PRO) Acceptable Paper Size: SRA3, A3, A4R, B4, Custom size: 210.0 x 279.4 mm to 330.2 x 487.7 mm) Booklet Capacity: 15 booklets (booklet size: A4, 80 gsm, 20 mm trim amount) Acceptable Paper Weight: 52 to 256 gsm, 64 to 300gsm (cover sheet only) Trim Amount: 2 mm to 20 28 mm Waste Tray Capacity: Approx. 5,000 Sheets Acceptable Paper Size: SRA3, A3, A4, B4, Custom Size: 210 x 279.4 mm to 330.2 x 487.7mm Power Source: From the Booklet Finisher-W1 PRO Dimensions: 2,095 x 790 x 1,040 mm (including joint) Weight: Approx. 178 kg |
DOCUMENT INSERTION UNIT-N1 | (Requires Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO) Number of insertion trays: 2 trays Insertion Tray Capacity: 200 sheets x 2 (80 gsm) Acceptable Insertion Paper Type: Thin, Plain, Recycled, Colour, Thick, Pre-punched, Letterhead, Bond, Coated, Tab, Tracing Acceptable Insertion Paper Size: SRA3, A3, A4, A4R, B4, B5, B5R, Custom size: 182 x 182 mm to 330.2 x 487.7 mm Acceptable Insertion Paper Weight: 52 to 256 gsm Power Supply: 100-240V, 50/60Hz, 1.0 A Dimensions (W x D x H): 336 x 793 x 1,407 mm (width: excluding document tray) Weight: Approx. 61 kg |
PAPER FOLDING UNIT-J1 | (Requires Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-W1 PRO or Booklet Finisher-W1 PRO) Supported Folding Type: C-Fold, Z-Fold, Half-Fold, Double-parallel Fold, Accordion Z-Fold Acceptable Paper Type: Thin, Plain, Recycled, Colour Bond Acceptable Paper Size: C-Fold: A4R , Z-Fold: A3, A4R, B4, Accordion Z-Fold: A4R, Double-parallel Fold: A4R Half-Fold: A4R Acceptable Paper Weight: C-Fold / Z-Fold / Accordion Z-Fold / Half-Fold : 52 to 105 gsm Double-parallel Fold: 52 to 90 gsm Power Source: From the Finisher Dimensions (W x D x H): 336 x 793 x 1,190 mm Weight: Approx. 71 kg |
Hardware Accessories | |
Card Readers | MiCard PLUS for ULM Proximity Card Reader Copy Card Reader-F1 Copy Card Reader Attachment-A4 |
Others | Printer Cover-H1 Tab Feeding Attachment Kit-B1 Utility Tray-B1 Upright Control Panel-H1 |
Security Options | |
Document Security | Document Scan Lock Kit-B2 |
Data Security | HDD Mirroring Kit-J1 2.5inch/250GB HDD-N1 2.5inch/1TB HDD-P1 Removable HDD Kit-AL1 |
System and Controller options | |
Print Accessories | PCL International Font Set-A1 PCL Asian Font Set-A1 PCL Printer Kit-BD1 / BZ1 PS Printer Kit-BD1 / BZ1 |
Send Options | Universal Send Advanced Feature Set-H1 (Trace & Smooth PDF, Searchable PDF/XPS, Office Open XML) Universal Send Digital User Signature Kit-C1 |
Barcode Printing | Barcode Printing Kit-D1 |
EFI-Fiery Based Controller | imagePASS Y3 |
EFI-Fiery Based Controller Options | Fiery Impose Fiery Compose Fiery Impose and Compose Fiery ImageViewer Removable HDD Kit-B6 |
System Accessories | Serial Interface Kit-K3 NFC Kit-C1 NFC Kit-A1 (for Upright Control Panel) Connection Kit-A1 for Bluetooth LE |
FAX Accessories | Super G3 FAX Board-AS1 Super G3 2nd Line Fax Board-AS1 Super G3 3rd/4th Line Fax Board-AS1 Remote Fax Kit-A1 IP FAX Expansion Kit-B1 |
Other Options | |
Accessibility Accessories | ADF Access Handle-A1 Voice Guidance Kit-G1 Voice Operation Kit-D1 |
Consumables | Staple Cartridge-X1 Staple Cartridge-Y1 Staple-N1 Staple-P1 Stamp Ink CRG-C1 Stamp Unit-B1 |
*1 Requires Staple Finisher-V2 or Booklet Finisher-V2. *2 Requires Booklet Finisher-V2, Booklet Finisher-X1 or Booklet Finisher-W1 Pro. *3 Requires Inner Booklet Trimmer-A1 (with Booklet Finisher-X1) or Booklet Trimmer-F1 (with Booklet Finisher-W1 Pro). *4 Requires 2/3 Hole Puncher Unit-A1 or 2/4 Hole Puncher Unit-A1 (with Staple Finisher-V2 or Booklet Finisher-V2), Puncher Unit-BF1 or Puncher Unit-BG1 (with Staple Finisher-X1 or Booklet Finisher-X1), or Puncher Unit-BS1, Puncher Unit-BT1 or Puncher Unit-BU1 (with Staple Finisher-W1 Pro or Booklet Finisher-W1 Pro). *5 Requires Multifunctional Professional Puncher-B1 (with Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-W1 Pro or Booklet Finisher-W1 Pro). *6 Requires Document Insertion Unit-N1 (with Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-W1 Pro or Booklet Finisher-W1 Pro). *7 Requires Paper Folding Unit-J1 (with Staple Finisher-X1, Booklet Finisher-X1, Staple Finisher-W1 Pro or Booklet Finisher-W1 Pro). *8 Requires Tab Feeding Attachment-B1. *9 Some types of tracing paper cannot be used. *10 Time from device power-on, until copy ready (not print reservation). *11 Including ADF, flat touch panel and the toner bottle. *12 Including ADF, Upright touch panel and the toner bottle. *13 Only PDF print from websites is supported. *14 Requires optional PCL International Font Set-A1. *15 Requires optional Barcode Printing Kit-D1. *16 Detect Feeder Multi Sheet Feed is supported. *17 Sent as A4. *18 Sent as B4. *19 Reference value: measured one unit. *20 0.9W sleep mode may not be possible in all circumstances due to certain settings. *21 Only for iR-ADV 8585i III. *22 With 81.4 gsm paper. |
