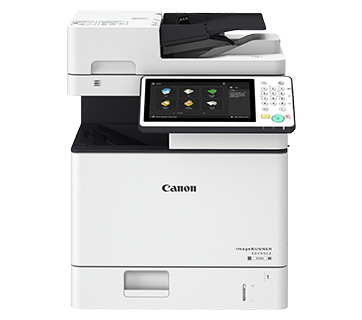

Canon A4 Size Mono Multi-Function Copier - iR ADV 615i III

High productivity, compact A4 device with intelligent and secure features

The imageRUNNER ADVANCE 615i III is designed for busy work groups who require compact and secure solutions.

  • A4 in Monochrome with 61 ppm
  • Copy / Print / Scan / Send
  • 10.1-inch colour Touch Panel
  • Small footprint for desktop configuration

RSP : RM10,492.00 / unit.
FREE : 1 year on-site warranty.

VIDEOS

FEATURES

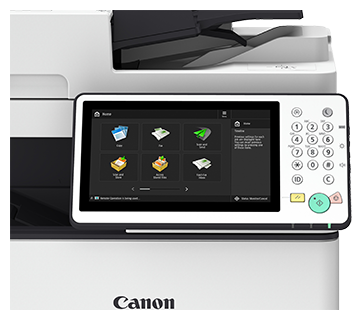

• 10.1″ intuitive touchscreen with smartphone-like usability.

• A unique, customized experience tailored to individual preferencesusing My ADVANCE.

• Supports mobile solutions and integration with many popular cloud services like Google Drive and Box*1

• Scan and convert documents to searchable digital files in a varietyof file formats.

• Integration with Canon and various third-party software with embedded application platform.

*1 – Subscription to a third-party cloud service required. Subject to third-party cloud service providers’ terms and conditions.

• Advanced standard security feature set to help safeguard sensitive information and assist in regulatory compliance.

• Integrates with existing, third-party SIEM* systems to help provide real-time, comprehensive insights into potential threats to the network and printers.

• Technology to verify that the device boot process, firmware, and applications initialize without alteration at startup. McAfee Embedded Control*2 utilizes a whitelist to protect against malware and tampering of firmware and applications.

• Security policy settings can be controlled with a dedicated password, configured from a central location, and exported to other supported devices.

• Control access to the device and specific features, using a host of flexible authentication methods—PIN code, user name/password, or card access.*3

* Security Information and Event Management
*2 – Requires Unified Firmware Platform v3.9 or greater.
*3 – Requires additional option.

• Canon’s signature reliability and engine technologies help keep productivity high and minimize the impact on support resources.

• Outstanding imaging technologies and toner allow for crisp text and consistent images in rich black-and-white tones.

• Designed to achieve maximum uptime with status notifications to help keep supplies replenished and intuitive maintenance videos for consumables replacement.

• imageRUNNER ADVANCE models have received many awards and recognition from leading industry analysts, often referencing strong reliability.

• Designed for quick, easy deployment.

• Remote diagnostics and parts life management for proactive maintenance and rapid fixes.

• Easy and intuitive to monitor device status and consumable levels, turn off devices remotely, observe meter readings, manage settings, and implement security policies.

• Common firmware and regular updates with Unified Firmware Platform (UFP) for continuous improvements and consistency across a fleet.

• Track and assess print, copy, scan, and fax usage and allocate costs to departments or projects.

• Apply print policies and restrict usage by user to help reduce unnecessary printing and contribute to cost efficiency.

• Standard cloud-based solution provides a centralized dashboard with up-to-the-minute insights into printer activity.

• Upgrade to uniFLOW server or cloud-based solutions for full accounting and reporting for compatible Canon and third-party devices, pull printing, job routing, and powerful scan workflows.

• A combination of fusing technologies and low-melting-point toner minimizes power requirements and helps achieve low energy consumption.

• Encourage environmentally-conscious work practices by enabling multiple settings that can help save paper and energy.

• ENERGY STAR® certified and rated EPEAT® Gold.*4

*4 – For current EPEAT rating (Gold/Silver/Bronze), please visit www.epeat.net.

Canon Mono Multi-Function Copier – iR ADV 615i III / 715iZ III
Main Unit
Machine typeA4 Monochrome Laser Multifunctional
Core FunctionsPrint, Copy, Scan, Send and Optional Fax
ProcessorCanon Dual Custom Processor (Shared)
Control Panel25.6 cm (10.1 inch) WSVGA Colour Touch panel
MemoryStandard: 3.0 GB RAM
Hard Disk DriveStandard: 320GB (Available disk space: 250GB)
Interface ConnectionNetwork
Standard: 1000Base-T/100BaseTX/10Base-T, Wireless LAN (IEEE 802.11b/g/n)
Optional: NFC, Bluetooth Low Energy

Others
Standard: USB 2.0 (Host) x 2, USB 3.0 (Host) x 1, USB 2.0 (Device) x 1
Optional: Copy Control Interface
Paper Supply Capacity (A4, 80 gsm)Standard: 650 sheets
550-sheet cassette, 100-sheet Multi-purpose tray
Maximum: 3,300 sheets (with High Capacity Cassette Feeding Unit-D1)
Paper Output Capacity (A4, 80 gsm)iR-ADV 615i III: 500 sheets
iR-ADV 715iZ III: 1,000 sheets
Finishing CapabilitiesiR-ADV 615i III: Collate, Group
iR-ADV 715iZ III: Collate, Group, Offset*1, Staple
Supported Media TypesPaper Cassette:
Thin, Plain, Recycled, Thick, Colour, Labels, Bond, Pre-punched

Multi-purpose tray:
Thin, Plain, Recycled, Thick, Colour, Transparency, Bond, Envelope
Supported Media SizesPaper Cassette:
Standard size: A4, A5, A5R, A6, B5, Custom size: 99.0 x 148.0mm to 215.9 x 297.0mm

Multi-purpose tray:
Standard size: A4, A5, A5R, A6, B5, Envelope [No.10 (COM10), Monarch, DL, ISO-C5]
Custom size: 76.2 x 127.0mm to 215.9 x 355.6mm
Supported Media WeightsPaper Cassette: 60 to 135 gsm
Multi-purpose tray: 60 to 199 gsm
Duplex: 60 to 120 gsm
Warm-up TimeFrom Power On: 24 seconds or less*2
From Sleep Mode: 10 seconds or less
Quick Startup Mode: 4 seconds or less*3
Dimensions (W x D x H)iR-ADV 615i III: 513 x 601 x 617mm
iR-ADV 715iZ III: 515 x 601 x 814mm
Installation Space (W x D)iR-ADV 615i/715iZ III: 1,052 x 823mm (with left CRG door, right door and the cassette drawer open)
WeightiR-ADV 615i III: Approx. 37 kg (including toner)
iR-ADV 715iZ III: Approx. 46 kg (including toner)
Print
Print Speed (ppm)*4iR-ADV 715iZ III:
up to 71 (A4), up to 113 (A5), up to 40 (A5R)

iR-ADV 615i III:
up to 61 (A4), up to 99 (A5), up to 35 (A5R)
Print Resolution (dpi)Data processing resolution: 600 x 600 (default), 1,200 x 1,200 (up to)
Page Description LanguagesStandard: UFR II, PCL 6, PS 3
Direct PrintDirect printing available from USB memory, Advanced Box, Remote UI and Web Access*5
Supported file types: PDF, EPS, TIFF, JPEG, and XPS.
FontsPCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*6 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*7 PS fonts: 136 Roman
Operating SystemUFR II: Windows® 7 / 8.1 / 10 / Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016, MAC OS X (10.9 or later)
PCL: Windows® 7 /8.1 / 10 / Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016
PS: Windows® 7 / 8.1 / 10 / Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016, MAC OS X (10.9 or later)
PPD: Windows® 7 / 8.1 / 10, MAC OS X (10.3.9 or later)
Copy
Copy Speed*4 (ppm)iR-ADV 715iZ III:
up to 71 (A4), up to 113 (A5), up to 40 (A5R)

iR-ADV 615i III:
up to 61 (A4), up to 99 (A5), up to 35 (A5R)
First-Copy-Out Time (A4)Approx. 5 seconds or less
Copy Resolution (dpi)Up to 600 x 600
Multiple CopiesUp to 9,999 copies
Copy DensityAutomatic or Manual (9 Levels)
Magnification25% – 400% (1% Increments)
Preset Reductions25%, 50%, 70%, 81%, 86%
Preset Enlargements115%, 122%, 141%, 200%, 400%
Scan
Standard TypeColour Platen and Single-pass Duplexing Automatic Document Feeder*8 [2-sided to 2-sided (Automatic)]
Document Feeder Paper Capacity (80 gsm)100 Sheets
Acceptable Originals and WeightsPlaten: Sheet, Book, 3-Dimensional Objects (Height: up to 30mm, Weight: up to 2kg)

Document Feeder: Sheet media weight:
42 to 128 gsm/64 to 128 gsm (BW/CL)*9
Supported Media SizesPlaten: Max. scanning size: 216.0 x 355.6mm
Document Feeder media size: A4, A5, A6, B5 , Custom size: 105.0 x 148.0mm to 216.0 x 355.6mm
Scan Speed (ipm; BW/CL; A4)1-sided Scanning: 50 /50 (300 dpi, send) , 50/ – (600 dpi, copy)
2-sided Scanning: 100 /100 (300 dpi, send), 100/ – (600 dpi, copy)
Scan Resolution (dpi)600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200, 200 x 100, 150 x 150, 100 x 100
Pull Scan SpecificationsColour Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows 7 / 8.1 / 10 , Server 2008 / 2008 R2 / 2012 / 2012 R2 / 2016
Send
DestinationStandard: E-mail/Internet FAX (SMTP), SMB v3.0, FTP, WebDAV, Mail Box
Optional: Super G3 FAX,IP Fax
Address BookLDAP (2,000)/Local (1,600)/One-touch (200)
Send Resolution (dpi)600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200, 200 x 100, 150 x 150, 100 x 100
Communication ProtocolFile: FTP (TCP/IP), SMB v3.0, WebDAV
E-mail/I-Fax: SMTP, POP3
File FormatStandard: TIFF, JPEG, PDF (Compact, Apply Policy, Optimise for Web, PDF A/1-b, Encrypted, Device Signature), XPS (Compact, Device Signature)
Optional: PDF (Trace&Smooth, Searchable, User Signature), XPS (Searchable, User Signature), Office Open XML (PowerPoint, Word)
Fax
Maximum Number of Connection Lines1
Modem SpeedSuper G3: 33.6 kbps
G3: 14.4 kbps
Compression MethodMH, MR, MMR, JBIG
Resolution (dpi)400 x 400, 200 x 400, 200 x 200, 200 x 100
Sending / Recording SizeA4, B5*10, A5*10 and A6*10 / A4, A5, B5
FAX / MemoryUp to 30,000 pages
Speed DialsMax. 200
Group Dials / DestinationsMax. 199 dials
Sequential BroadcastMax. 256 addresses
Memory BackupYes
Store
Mail Box (Number supported)100 User Inboxes, 1 Memory RX Inbox,
50 Confidential Fax Inboxes,
30,000 Maximum Pages Stored
Advanced BoxCommunication Protocol: SMB or WebDAV
Supported Client PC: Windows (Windows 7 / 8.1 / 10)
Concurrent Connections (Max.): SMB: 64, WebADV: 3 (Active Sessions)
Advanced Box Available Disc SpaceApprox. 16GB (Standard HDD)
Advanced Box FeaturesAuthentication for Advanced Space Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support
Memory MediaStandard: USB Memory
Security
AuthenticationStandard: User Authentication (Picture Login / Keyboard Authentication), DepartmentID Authentication, Access Management System, uniFLOW Online Express Cloud based management software
Optional: My Print Anywhere secure print (Requires uniFLOW)
DataStandard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption (FIPS140-2 Validated)
Optional: IEEE 2600 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW, iWSAM Express)
NetworkStandard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME
DocumentStandard: Secure Print, Adobe LiveCycle® Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device signature, Secure Watermarks
Optional: User Signature
Environmental
Operating EnvironmentTemperature: 10 to 30 ºC
Humidity: 20 to 80 % RH (Relative Humidity)
Power Source220-240 V (±10 %), 50/60 Hz (±2 Hz), 4.8 Amp
Power ConsumptionMaximum: Approx. 1,500 W
Printing: 749.7 W*11 (iR-ADV 715iZ III), 717.7 W*11 (iR-ADV 615i III)
Standby: Approx. 29.53 W*11
Sleep mode: Approx. 1.0 W
Consumables
Toner Cartridge/sT03 Black
Toner YieldBlack: 51,500 pages (A4)
Toner Cartridge yield in accordance with ISO/IEC 19752
Paper Supply Options
Cassette Feeding Unit-AR1Paper Capacity: 550 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Thick, Colour, Labels, Bond, Pre-punched
Paper Size: A4, A5, A5R, A6, B5, Custom size: 99.0 x 148.0mm to 215.9 x 355.6mm
Paper Weight: 60 to 135 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 642 x 657 x 456mm (attached to main unit)
Weight: Approx. 19 kg
High Capacity Cassette Feeding Unit-D1Upper cassette:
Paper Capacity: 550 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Thick, Colour, Labels, Bond, Pre-punched
Paper Size: A4, A5, A5R, A6, B5, Custom size: 99.0 x 148.0mm to 215.9 x 355.6mm
Paper Weight: 60 to 135 gsm

Lower cassette:
Paper Capacity: 2,100 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Thick, Colour, Bond, Pre-punched
Paper Size: A4
Paper Weight: 60 to 135 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 642 x 657 x 456mm (attached to main unit)
Weight: Approx. 25 kg
Cassette Module-AG1Paper Capacity: 550 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Thick, Colour, Labels, Bond, Pre-punched
Paper Size: A4, A5, A5R, A6, B5, Custom size: 99.0 x 148.0mm to 215.9 x 355.6mm
Paper Weight: 60 to 135 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 484 x 450 x 127mm (attached to main unit)
Weight: Approx. 7 kg
Envelope Cassette Module-A1Paper Capacity: 75 sheets (Envelope)
Envelope Size: COM10 (No.10), Monarch, DL, ISO-C5
Paper Weight: 80 to 100 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 484 x 450 x 127mm (connected with main unit)
Weight: Approx. 7 kg
Output Features
iR-ADV 715iZ IIINumber of Inner Trays: 2
Upper Tray Capacity*12: A4, A5, B5, Custom size (148.0 x 210.0mm to 215.9 to 355.6mm): 400 sheets
Lower Tray Capacity*12: A4, A5, B5, Custom size (148.0 x 210.0mm to 215.9 to 355.6mm): 100 sheets
Main unit output tray*12: 500 sheets

Paper Type: Thin, Plain, Recycled, Thick, Colour, Bond
Staple Paper Weight: 60 to 120 gsm
Staple Position: Corner
Staple Paper Size: A4, Custom size (210.0 x 279.4mm to 215.9 x 355.6mm)
Staple Capacity: 30 sheets (60-90 gsm), 20 sheets (91-120 gsm)
Hardware Accessories
Card ReadersCopy Card Reader-F1
Copy Card Reader Attachment-B5
Security Options
Document SecurityiR-ADV Security Kit-AF1 for IEEE 2600 Common Criteria Certification
System and Controller options
Print AccessoriesPCL International Font Set-A1
PCL Asian Font Set-A1
Send OptionsUniversal Send Advanced Feature Set-H1
Universal Send Digital User Signature Kit-C1
Barcode PrintingBarcode Printing Kit-D1
System AccessoriesCopy Control Interface Kit-A1
NFC Kit-C1
BLE CONNECTION KIT-A1
FAXSuper G3 FAX Board-AY1
Remote Fax Kit-A1
IP FAX Expansion Kit-B1
Other Options
Accessibility AccessoriesADF Access Handle-A1
Staple CartridgeStaple-P1
*1 Available with upper tray.
*2 Time from device power on, until copy ready (not print reservation).
*3 Time from device power on to when key operations can be performed on the touch panel display.
*4 Simplex.
*5 Only PDF print from website is supported.
*6 Requires optional PCL INTERNATIONAL FONT SET-A1.
*7 Requires optional BARCODE PRINTING KIT-D1.
*8 Detect Feeder Multi Sheet Feed is supported.
*9 A6: 52 gsm to 128 gsm/64 to 128 gsm (BW/CL).
*10 Sent as A4.
*11 Reference value (measured one unit).
*12 80 gsm.

Product Catalogue PDF file : CANON Mono Multi-Function Copier iR ADV 615i III 650KB

(You need to install Acrobat Reader to open the PDF files.)
