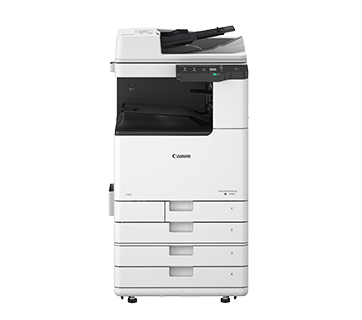

Canon Light Heavy Duty Mono Multi-Function Digital Copier - iR 2745i

Seamless usability, enhanced capabilities

Designed for functionality, the imageRUNNER 2745i offers a wide range of solution that optimises productivity in modern office environments.

  • 45ppm
  • Print, Copy, Colour Scan and Send
  • 7-inch Colour Touch Panel
  • Network, Wi-Fi, and USB connectivity

RSP : RM22,672.00 / unit.
FREE : 1 year on-site warranty.

RENTAL : RM595.00 / month.

The new imageRUNNER 2745i monochrome redefines usability. Packed with essential functions for modern offices, the copier pairs utility with concise operability, offering a seamless print experience that is optimised for any workflow.

The imageRUNNER 2745i upgrades your user experience through an intuitive interface. Boasting a 7-inch colour touch panel with multiple personalisation options, navigation is easy and convenient.

Set specific tasks with one-touch operations to keep workflow efficient. Users can stay productive by streamlining their operations.

Handle versatile print demands or in-house productions with wider media support. Print from various media types and paper weights, with a variety of finishes such as hole punch and ECO-staple.

Handle versatile print demands or in-house productions with wider media support. Print from various media types and paper weights, with a variety of finishes such as hole punch and ECO-staple.

This CANON imageRUNNER 2745i offers flexible and fuss-free ways to print your documents.

Connect directly to the multi-function device via Wi-Fi direct to print on-the-go.

Manage your documents with Canon PRINT Business, Mopria and more.

Preview, print and store documents directly with the device via USB without using a computer.

View and save scanned documents in the right orientation.
The imageRUNNER 2745i automatically determines height and width so your documents are always in the optimal readability.

Further preview your media on the colour display before printing or saving to ensure your documents and images are in the best presentation.

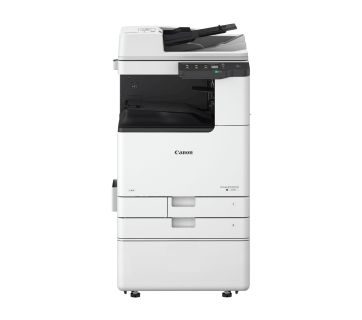

Canon Mono Multi-Function Digital Copier iR2725i / 2730i / 2735i / 2745i Specifications
Main Unit
Machine TypeA3 Monochrome Laser Multifunctional
Core FunctionPrint, Copy, Scan, Send, and Optional Fax
Control Panel7 inch TFT LCD WSVGA Colour Touch panel
Memory2.0 GB RAM
StorageeMMC: 30 GB
Interface ConnectionNETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

OTHERS
Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1
Paper Supply Capacity (A4, 80 gsm)Standard: 1,200 sheets
Maximum: 2,300 sheets (with Cassette Feeding Unit-AW1)
Paper Output Capacity (A4, 80 gsm)Standard: 250 sheets
Maximum: 645 sheets (with Inner Finisher-L1 and Copy Tray-T2)
Finishing Capabilities*1Collate, Group, Offset, Staple, Hole Punch, Eco Staple, Staple On Demand
Supported Media TypesMain Body Cassette (Upper/Lower):
Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-Punched, Letterhead, PostCard

Multi-purpose Tray:
Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-Punched, Letterhead, PostCard, Labels, Coated, Tracing
Supported Media SizesUpper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm

Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, COM 10 No. 10*2, Monarch*2, DL*2
Custom Size: 105 x 148 mm to 304.8 x 457.2 mm

Multi-purpose tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, COM 10 No. 10, Monarch, ISO-C5, DL
Custom size: 98.4 x 139.7 mm to 320.0 x 457.3 mm
Envelopes: 98.0 x 98.0 mm to 320.0 x 457.2 mm
Supported Media Weights*3Main Body Cassette (Upper/Lower): 52 to 256 gsm
Multi-purpose tray: 52 to 300 gsm
Duplex: 52 to 220 gsm
Warm-up Time
(Quick start mode: ON)
4 seconds or less*4
From Sleep Mode: 10 seconds or less
Dimensions (W x D x H)With Platen Cover Type Z: 565 x 659 x 788 mm
With Platen Cover-Y3: 565 x 659 x 788 mm
With DADF (45/35 ppm): 565 x 687 x 891 mm
With DADF (30/25 ppm): 565 x 693 x 877 mm
Installation Space (W x D)Basic:
978 x 1,089 mm (with Platen Cover-Y3 + right door & multi-purpose tray opened + paper cassette opened)

Fully Configured:
1,286 x 1,116 mm (with DADF-BA1 + Inner Finisher tray max extended + Copy Tray-T2 max extended + paper cassette opened
Weight (Without toner)iR2745i/2735i:
With Platen Cover-Y3: Approx. 60 kg
With DADF-BA1: Approx. 66 kg

iR2730i/iR2725i:
With Platen Cover Type Z: Approx. 59 kg
With DADF-AZ1: Approx. 65 kg
Print
Print Speed (BW)iR2745i:
Simplex: Up to 45 ppm (A4, A5, A5R, A6R), Up to 22 ppm (A3), Up to 32 ppm (A4R)

iR2735i:
Simplex: Up to 35 ppm (A4, A5, A5R, A6R), Up to 17 ppm (A3), Up to 23 ppm (A4R)

iR2730i:
Simplex: Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)

iR2725i:
Simplex: Up to 25 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
Print Resolution (dpi)600 x 600
1200 x 1200
Page Description LanguagesStandard: UFRII, PCL6
Option: Adobe® PostScript®3™
Direct PrintPDF, EPS, TIFF/JPEG, XPS
Printing From Mobile and Cloud ApplicationAirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print
FontsPS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*5 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*6
Operating SystemUFRII: Windows® 8.1 / 10 / 11 / Server2012 / Server2012 R2 / Server2016 / Server2019 / Server2022, Mac OS X (10.11 or later)
PCL: Windows® 8.1 / 10 / 11 / Server2012 / Server2012 R2 / Server2016 / Server2019 / Server2022
PS: Windows® 8.1 / 10 / 11 / Server2012 /Server2012 R2 / Server2016 / Server2019 / Server2022, Mac OS X (10.11 or later)
PPD: Windows® 8.1 / 10 / 11, Mac OS X (10.11 or later)

As of Jan. 2022
Copy
Copy SpeediR2745i:
Simplex: Up to 45 ppm (A4, A5, A5R, A6R), Up to 22 ppm (A3), Up to 32 ppm (A4R)

iR2735i:
Simplex: Up to 35 ppm (A4, A5, A5R, A6R), Up to 17 ppm (A3), Up to 23 ppm (A4R)

iR2730i:
Simplex: Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)

iR2725i:
Simplex: Up to 25 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
First-Copy-Out Time (A4)iR2745i: 5.3 seconds
iR2735i: 6.4 seconds
iR2730i: 7.0 seconds
iR2725i: 7.0 seconds
Copy Resolution (dpi)600 x 600
Multiple CopiesUp to 9,999 copies
Copy DensityAutomatic or Manual (9 Levels)
MagnificationVariable zoom: 25% to 400% (1% Increments)
Preset reduction/enlargement (Others): 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%
Scan
Selectable TypeColour Scanner
Document Feeder Paper Capacity (80 gsm)DADF-BA1: up to 100 Sheets
DADF-AZ1: up to 50 Sheets
Acceptable Originals and WeightsPlaten: Sheet, Book, and 3-Dimensional Objects

Document Feeder media weight:
DADF-BA1:
1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)
2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)

DADF-AZ1:
1-sided scanning: 38 to 128 gsm
2-sided scanning: 52 to 128 gsm
Supported Media SizesPlaten: max. scanning size: 297.0 x 431.8 mm

DADF-BA1:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6,
Custom size: 139.7 x 128.0 mm to 297.0 x 431.8 mm

DADF-AZ1:
A3, A4, A4R, A5, A5R, B5, B5R, B4R
Custom size: Custom size: 128.0 x 148.0 mm to 297.0 x 431.8 mm
Scan Speed (ipm: BW/CL, A4)DADF-BA1 :
1-sided Scanning: 70/70 (300 x 300 dpi, send), 51 /51 (600 x 600 dpi, copy)
2-sided Scanning: 35/35 (300 x 300 dpi, send), 25.5 /25.5 (600 x 600 dpi, copy)

DADF-AZ1:
1-sided Scanning: 35/25 (300 x 300 dpi, send), 25 (BW; 600 x 600 dpi, copy)
2-sided Scanning: 12/8 (300 x 300 dpi, send), 8 (BW; 600 x 600 dpi, copy)
Scan Resolution (dpi)Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600
Pull Scan SpecificationsColour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows® 8.1 / 10 / 11 / Server2012 / Server2012 R2 / Server 2016 / Server 2019 / Server 2022

As of Nov. 2021
Send
DestinationStandard: E-mail/Internet FAX (SMTP), SMB 3.0, FTP, WebDAV,
Optional: Super G3 FAX
Address BookLDAP (2,000)/Local (1,600)/One-touch (200)
Send Resolution (dpi)Push: up to 600 x 600
Pull: up to 600 x 600
Communication ProtocolFTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV Email/iFax: SMTP(send), POP3(receive)
File FormatStandard: TIFF, JPEG*7, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature), Office Open XML (PowerPoint, Word)

Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)
Fax
Optional/StandardOptional on all models
Maximum Number of Connection Lines1
Modem SpeedSuper G3: 33.6 kbps
G3: 14.4 kbps
Compression MethodMH, MR, MMR, JBIG
Resolution (dpi)200 x 100 (Standard), 200 x 200 (Fine), 200 x 400 (Super Fine), 400 x 400 (Ultra Fine)
Sending/Recording SizeSending: A3, A4, A4R, A5*8, A5R*8, B4, B5*9, B5R*8
Receiving: A3, A4, A4R, A5R, B4, B5, B5R
Fax MemoryUp to 30,000 pages (2,000 jobs)
Speed DialsMax. 200
Group Dials/DestinationsMax. 199 dials
Sequential BroadcastMax. 256 addresses
Memory BackupYes
Store
Memory MediaScan to Memory Media
Security
Authentication and Access ControlUser Authentication (Picture Login, Picture and PIN Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)
Document SecurityPrint Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print*10), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*11), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support)
Network SecurityTLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall, Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception
Device SecurityStandard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup, Runtime Intrusion Detection
Device Management and AuditingAdministrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting
Environmental
Operating EnvironmentTemperature: 10 to 30 ºC
Humidity: 20 to 80% RH (Relative Humidity)
Power SourceAsia: 220-240V 50/60Hz 10A
Power ConsumptionMaximum: Approx. 1,500 W
Copying (with DADF continuous scan): Approx. 666 W (220-240V)*12
Standby: Approx. 28.1 W (220-240V)*12
Sleep Mode: Approx. Wired LAN: 1.0 W*13
Consumables
Toner Yield (Estimated Yield @6% coverage)NPG-87 Toner Black: 30,000 pages
Software and Printer Management
Tracking and ReportinguniFLOW Online Express / uniFLOW Online
Remote Management ToolsiW Management Console
eMaintenance
Content Delivery System
Scanning SoftwareScanGear
Optimisation ToolsCanon Driver Configuration Tool
Document PublishingiW DESKTOP
Paper Supply Options
Cassette Feeding Unit-AW1Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm)
Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead
Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Paper Weight: 52 to 256 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 565 x 635 x 248 mm
Weight: Approx. 16.0 kg
Output Options
Inner 2way Tray-M1Tray Capacity (with 80 gsm paper)
Upper tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 100 sheets
Lower tray (standard tray): A4, A5, A5R, A6R, B5, B5R: up to 250 sheets
SRA3, A3, A4R, B4: up to 100 sheets
Paper Weight: 52 to 300 gsm
Dimensions (W x D x H): 428 x 405 x 88 mm
Weight: Approx. 0.7 kg
Copy Tray-T2Capacity (with 80 gsm paper):
A4, A5R, B5, B5R: 100 sheets
A3, A4R, B4: 65 sheets
Dimensions (W x D x H): 444 x 373 x 176 mm (attached to the main unit, when the extension tray is extended)
Weight: 0.5 kg
Inner Finisher-L1Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: approx. 45 sheets
Lower Tray: A4, A5, A5R, B5: approx. 500 sheets
SRA3, A3, A4R, B4, B5R: 250 sheets
A6R: 30 sheets
Envelope: 10 sheets
Paper Weight: 52 to 300 gsm
Staple Position: Corner, Double
Staple Capacity:
A4, B5: 50 sheets (52 to 90 gsm)
A4R: 40 sheets (52 to 90 gsm)
A3, B4: 30 sheets (52 to 90 gsm)
Eco Staple:
A3, A4, B4, B5: 10 sheets (52 to 64 gsm)
8 sheets (65 to 81.4 gsm)
6 sheets (82 to 105 gsm)
Staple On Demand: approx. 40 sheets (80 gsm)
Dimensions (W x D x H): 727 x 525 x 225 mm (attached to the main unit, when the extension tray is extended)
Weight: Approx. 9.1 kg
Inner 2/4 Hole Puncher-D1(Requires Inner Finisher-L1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes A3, A4, A4R, A5, B4, B5, B5R,
Four holes A3, A4
Inner 4 Hole Puncher-D1(Requires Inner Finisher-L1)
Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Four holes A3, A4, A4R, A5, B4, B5, B5R
Hardware Accessories
Card ReadersCopy Card Reader-F1
Copy Card Reader Attachment-H3
IC Card Reader Attachment-B4
Option Attachment kit for Reader-A2
OthersDADF-AZ1
Platen Cover Type Z
Platen Cover-Y3
Utility Tray-B1
DADF-BA1
System and Controller Options
Print AccessoriesPCL International Font Set-A
PS Printer Kit-BT1
Barcode Printing Kit-D1
Send OptionsUniversal Send Trace & Smooth PDF Kit-A1
Universal Send Digital User Signature Kit-C1
System AccessoriesCopy Control Interface Kit-D1
Fax AccessoriesSuper G3 FAX Board-BJ1
Remote Fax Kit-A1
Other Options
Accessibility AccessoriesADF Access Handle-A1
Staple CartridgesStaple-P1
*1 Finishing capabilities vary depending on the options connected.
*2 Required Envelope Attachment A.
*3 Supported paper weight with Media Adjustment Kit-A1: 60-300 gsm.
*4 Time from device power onto when copy icon appears and is enabled to operate on the touch panel display.
*5 Optional PCL International Font Set-A1 is required.
*6 Optional Barcode Printing Kit-D1 is required.
*7 Single page only.
*8 Sent as A4.
*9 Sent as B4 short.
*10 Requires optional uniFLOW Online / uniFLOW.
*11 Requires optional Universal Send Digital User Signature Kit-C1.
*12 Reference value: measured one unit.
*13 1.0 W is not available in all circumstances due to certain settings.

Product Catalogue PDF file : CANON Mono Multi-Function Digital Copier iR2745i 14.99MB

(You need to install Acrobat Reader to open the PDF files.)
