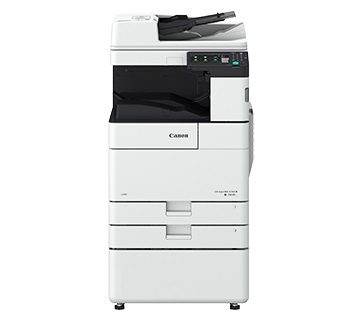

Canon Light Heavy Duty Mono Multi-Function Copier - iR 2635i

Robust A3 device built for productivity

With personalised user workflows, advanced security features and cost control capabilities, the iR2635i is the ultimate document solution device designed for the modern office environment.

  • 35ppm
  • Print, Copy, Colour Scan and Send
  • 7-inch Colour Touch Panel
  • Network, Wi-Fi, and USB connectivity

RSP : RM17,058.00 / unit.
FREE : 1 year on-site warranty.

RENTAL : RM445.00 / month.

FEATURES

Advanced Personalisation

With a 7 inch colour control panel, the iR2635i offers an intuitive interface designed to simplify your work process. Customise workflows tailored to individual preferences to speed up daily tasks.

Enhanced Security

Protect your device, data and network with a multilayer security offering.

iR2635i integrates with third party Security Information and Event Management (SIEM) systems to help provide insights into potential threats. These devices also include latest technology to verify that the device boot process, firmware, and applications initialise without alterations or tampering.

Cloud Control

Maximise your investments with uniFLOW Online Express, our cloud-based print management solution. Track and assess print, copy, scan, and fax usage and allocate costs to departments or projects.

Canon Mono Multi-Function Copier iR2625i / 2630i / 2635i / 2645i Specifications
Main Unit
Machine TypeA3 Monochrome Laser Multifunctional
Core FunctionsPrint, Copy, Scan, Send and Optional Fax
Control PanelStandard: 7 inch TFT LCD WVGA Colour Touch panel
MemoryStandard: 2.0GB RAM
Paper Supply Capacity (A4, 80gsm)Standard: 1,200 sheets
Maximum: 2,300 sheets (with Cassette Feeding Unit-AN1)
Paper Output Capacity (A4, 80 gsm)Standard: 250 sheets
Maximum: 545 sheets (with Inner Finisher-J1)
Supported Media SizesUpper Cassette 1:
Standard size: A4, A4R, A5R, B4, B5, B5R
Custom size: Min. 139.7 x 182.0 mm up to 297.0 x 390.0 mm

Lower Cassette 2:
Standard size: A3, A4, A4R, A5R, B4, B5, B5R
Custom size: Min. 139.7 x 182.0 mm up to 297.0 x 431.8 mm

Multi-purpose tray:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL]
Custom Size/Free Size: Min. 98.0 x 148.0 to 297.0 x 431.8 mm
Supported Media WeightsPaper Cassettes (1/2): 60 to 128 gsm
Multi-purpose tray: 52 to 220 gsm (Thin: vertical grain paper feed only: 52 to 59 gsm)
Duplex: 60 to105 gsm
Warm-up Time
(Quick start mode:ON)
12 seconds or less*1
From Sleep Mode: 10 seconds or less
4 Seconds or less*2
Dimensions (W x D x H)iR 2645i/2635i: 586 x 709 x 926 mm (with DADF-BA1)*3
iR 2630i/2625i: 586 x 713 x 912 mm (with DADF-AZ1)*3
iR 2625i: 586 x 700 x 818 mm (with Platen Cover type Z)*3
Installation Space (W x D)iR 2645i/2635i: 1363 x 1269 mm (with DADF-BA1)*4
iR 2630i/2625i: 1363 x 1273 mm (with DADF-AZ1)*4
iR 2625i: 1363 x 1260 mm (with Platen Cover type Z)*4
WeightStandard:
iR 2645i/2635i:Approx. 68.3 kg without toner
iR 2630i/2625i:Approx. 66.8 kg without toner
Print
Print Speed (ppm)iR 2645i:
45 ppm (A4), 22 ppm (A3)
iR 2635i:
35 ppm (A4), 22 ppm (A3)
iR 2630i:
30 ppm (A4), 15 ppm (A3)
iR 2625i:
25 ppm (A4), 15 ppm (A3)
Print Resolution (dpi)1,200 x 1,200
Page Description LanguagesStandard: UFR II, PCL 6
Optional: Genuine Adobe PostScript 3
FontsPCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*5 (Japanese, Korean, Simplified and Traditional Chinese) , Barcode fonts*6
PS fonts: 136 Roman
Operating SystemUFRII: Windows® 7/8.1/10/Server 2008 /Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.9 or later)
PCL: Windows® 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016/Server 2019
PS: Windows® 7/8.1/10/Server 2008/Server 2008 R2/ Server 2012/Server 2012 R2/Server 2016/Server 2019, MAC OS X (10.9 or later)
PPD: Windows® 7/8.1/10, MAC OS X (10.9 or later)
Copy
Copy Speed (ppm)iR 2645i:
45 ppm (A4), 22 ppm (A3)
iR 2635i:
35 ppm (A4), 22 ppm (A3)
iR 2630i:
30 ppm (A4), 15 ppm (A3)
iR 2625i:
25 ppm (A4), 15 ppm (A3)
First-Copy-Out Time (A4)iR 2645i/2635i:Approx. 3.9 seconds or less
iR 2630i/2625i:Approx. 5.9 seconds or less
Copy resolution (dpi)Reading: 600 x 600
Printing: Up to 1,200 x 1,200
Multiple CopiesUp to 9,999 copies
Copy DensityAutomatic or Manual (9 Levels)
Magnification25% – 400% (1% Increments)
Preset Reductions25%, 50%, 61%, 70%, 81%, 86%
Preset Enlargements115%, 122%, 141%, 200%, 400%
Scan
Selectable TypeiR2645i/2635i: Optional Document Feeder(DADF-BA1) or Platen Cover Type Y
iR2630i/2625i: Optional Document Feeder(DADF-AZ1) or Platen Cover Type Z
Document Feeder Paper Capacity (80 gsm)DADF-BA1: 100 Sheets
DADF-AZ1: 50 Sheets
Acceptable Originals and WeightsPlaten (DADF-BA1):
Sheet, Book, 3-Dimensional Objects
Platen (DADF-AZ1):
Sheet, Book

Document Feeder media weight:
DADF-BA1:
1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)*7
2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)

DADF-AZ1:
1-sided scanning: 38 to 128 gsm (BW/CL)
2-sided scanning: 38 to 128 gsm (BW/CL)*8
Supported Media SizesPlaten: Max. scanning size: 297.0 x 431.8 mm
Document Feeder media size:
DADF-BA1: A3, A4, A4R, A5, A5R, B5, B5R, B6, B4R
Custom size: 128.0 x 139.7 mm to 297.0 x 431.8 mm
DADF-AZ1:
A3, A4, A4R, A5, A5R, B5, B5R, B4R
Custom size: 128.0 x 148.0 mm to 297.0 x 431.8 mm
Scan Speed (ipm: BW/CL; A4)DADF-BA1:
1-sided Scanning: 55/55 (BW/CL; 300 dpi), 45 (BW; 600 dpi)
2-sided Scanning: 27.5/27.5 ((BW/CL; 300 dpi), 22.5 (BW; 600 dpi)

DADF-AZ1:
1-sided Scanning:35/25 (BW/CL; 300 dpi), 25 (BW; 600 dpi)
2-sided Scanning:12/8 (BW/CL; 300 dpi), 8 (BW; 600 dpi)
Scan Resolution (dpi)Copy: 600 x 600
Send: (Push) up to 600 x 600, (Pull) up to 600 x 600
Fax: up to 600 x 600
Pull Scan SpecificationsColour Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows® 7/8.1/10
Windows® Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
Scan MethodSend functionality available on all models
Scan to USB Memory Key: Available on all models
Scan to Mobile Devices and cloud-based services: A range of solutions is available to provide scanning to mobile devices or cloud-based services depending on your requirements. Please contact your sales representative for further information.
TWAIN/WIA Pull scanning available on all models
Send
DestinationE-mail/Internet FAX (SMTP), SMB, FTP, WebDAV, Super G3 FAX (Optional)
Address BookLDAP (2,000)/Local (1,600)/Speed dial (200)
Send Resolution (dpi)Push: 600 x 600
Pull: 600 x 600, 400 x 400, 300 x 300, 200 x 200, 150 x 150, 75 x 75
Communication ProtocolFile: FTP (TCP/IP), SMB (TCP/IP), WebDAV
E-mail/I-Fax: SMTP (send), POP3 (receive)
File FormatStandard: TIFF (MMR), JPEG*9, PDF (Compact, PDF A/1-b, Encrypted), XPS (Compact), PDF/XPS (Device Signature)
Optional: PDF (Trace & Smooth), PDF/XPS (User Signature, Searchable), Office Open XML (PowerPoint, Word)
Fax
Optional / StandardOptional on all models
Maximum Number of Connection Lines1
Modem SpeedSuper G3: 33.6 kbps
G3: 14.4 kbps
Compression MethodMH, MR, MMR, JBIG
Resolution (dpi)400 x 400 (Ultrafine), 200 x 400 (Superfine), 200 x 200 (Fine/Photo), 200 x 100 (Normal)
Sending / Recording SizeA3, A4, A4R, A5*10, A5R*10, B4, B5*11, B5R*10
FAX / MemoryUp to 30,000 pages
Speed DialsMax. 200
Group Dials / DestinationsMax. 199 dials
Sequential BroadcastMax. 256 addresses
Memory BackupYes
Store
Memory MediaStandard: USB Memory
Security
AuthenticationStandard: uniFLOW Online Express, User Authentication, Department ID Authentication, Access Management System, Picture Login
Optional: My Print Anywhere secure print (Requires uniFLOW)
NetworkStandard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME
DocumentStandard: Secure Print, Encrypted PDF, Encrypted Secure Print, Device signature
Optional: User signature
Environmental
Operating EnvironmentTemperature: 10 to 30 ºC (50 to 86 ºF)
Humidity: 20 to 80 % RH (Relative Humidity)
Power Source220-240 V , 50/60 Hz , 5.2 Amp
Power ConsumptionMaximum: Approx. 1500W
Standby: Approx. 20W
Sleep mode: Approx. 0.6 W
Consumables
Toner Cartridge/sNPG-84 Toner Black
Toner (Estimated Yield @ 6% Coverage)Black: 30,000 impressions (A4)
Paper Supply Options
CASSETTE FEEDING UNIT-AN1Paper Capacity: 550 sheets x 2 (80 gsm)
Paper Type: Thin, Plain, Thick, Colour, Recycled, Pre-punched
Paper Size: A3, A4, A4R, A5R, B4, B5, B5R, Custom size: 139.7 x 182.0 to 297.0 x 431.8 mm
Paper Weight: 60 to 128 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 565 x 650 x 248 mm (attached to the main unit)
Weight: Approx. 23.5 kg
ENVELOPE FEEDER ATTACHMENT-D1Attaches to the 2nd paper drawer for easy envelope feeding. Holds up to 50 envelopes.
Output Options
INNER 2WAY TRAY-L1Allows the separation of copies, prints and faxes. Adds a second internal output tray to give a combined output capacity of 350 sheets (upper tray 100 sheets/lower tray 250 sheets).
INNER FINISHER-J1 (Internal)Number of Trays: 2
Upper Tray Capacity*12: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 45 sheets
Lower Tray Capacity*12: A4, A5, A5R, B5: 500 sheets, A3, A4R, B4, B5R 250 sheets, A6R: 30 sheets
Paper Weight: 52 to 220 gsm
Staple Position: Corner, Double

Staple Capacity: Corner and Double Stapling:
A4/B5: 50 sheets (52 to 90 gsm)
A3/A4R/B4: 30 sheets (52 to 90 gsm)

Eco Staple:
A3/A4/B4/B5:
5 sheets (52 to 64 gsm)
4 sheets (65 to 81.4 gsm)
3 sheets (81.5 to 105 gsm)

Staple On Demand:
40 sheets (80 gsm)
Dimensions (W x D x H): 604 x 535 x 205 mm (when the extension tray is extended)
Weight: Approx. 7.3 kg
Hardware Accessories
Card ReadersCOPY CARD READER-F1 – Magnetic physical card access system. (Integrates with Department ID, not for use with uniFLOW)
IC Card Reader Box-C2
COPY CARD READER ATTACHMENT-H3 – Attachment kit for Copy Card Reader-F1 only.
OthersUTILITY TRAY-B1 – Additional tray to hold an external USB keyboard
Document Tray-J1
Platen Cover Type Z
Platen Cover Type Y
DADF-AZ1
DADF-BA1
System and Controller options
Print AccessoriesPCL INTERNATIONAL FONT SET-A1 – Adds PCL support for Andalé Mono WT J/K/S/T (Japanese/Korean/Simplified Chinese/Traditional Chinese).
PS PRINTER KIT-BT1- Provides networked printing support for Adobe PostScript 3 printing.
Send OptionsUniversal Send Digital User Signature Kit-C1
Universal Send Advanced Feature Set-H1
Barcode PrintingBARCODE PRINTING KIT-D1 – Provides the ability to print 1D and 2D barcodes on output using jet caps technology.
System AccessoriesCOPY CONTROL INTERFACE KIT-D1: Allows connection (CCVI I/F) between 3rd party copy control terminal and Canon’s iR-ADV range for cost recovery use.
FAX AccessoriesSUPER G3 FAX BOARD-AV2
REMOTE FAX KIT-A1 – Enables the device to send and receive fax from another device connected with a fax board
Other Options
Accessibility AccessoriesADF ACCESS HANDLE-A1 – Attaches to the document feeder, making access easier for seated users.
Staple CartridgeSTAPLE-P1 – For stapling (2 x 5,000 pcs)
*1 Time from device power-on, until copy ready (not print reservation).
*2 Time from device power-on to when key operations can be performed on the touch panel display.
*3 With the multi purpose tray extended.
*4 With Cassette open + 100 mm gap around the main body.
*5 Requires optional PCL International Font Set-A1.
*6 Requires optional Barcode Printing Kit-D1.
*7 Only 1-sheet feeding is supported in 38-42 gsm. (Feeding is guaranteed but geometric distortion correction is not guaranteed.)
*8 Only 1-sheet feeding is supported in 38-52 and 105-128 gsm. (Feeding is guaranteed but geometric distortion correction is not guaranteed.)
*9 Single page only.
*10 Sent as A4.
*11 Sent as B4.
*12 With 81.4 gsm paper.

Product Catalogue PDF file : CANON Mono Multi-Function Copier iR2635i 6.24MB

(You need to install Acrobat Reader to open the PDF files.)
