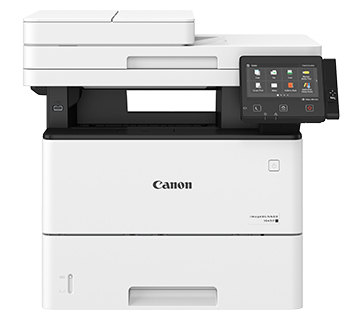

Canon A4 Size Mono Multi-Function Copier - iR 1643iF

High in productivity, small in size.

Introducing a compact A4 mono multi-function device with fast scanning capabilities and advanced mobile connectivity.

  • 43ppm
  • Print, copy, scan, send and fax
  • Double-sided printing and one-pass scanning
  • Network, Wi-Fi, USB, QR code & NFC connectivity
  • Encrypted PDF & Device Signature PDF

RSP : RM6,487.00 / unit.
FREE : 1 year on-site warranty.



The Application Library is packed with innovations to help you work smarter and more efficiently than ever. You can print frequently-used forms from the printer, or personalise the printer with your corporate logo with just a tap of the button.

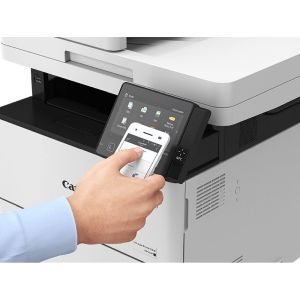

Print, scan, or send documents from any portable device via various mobile connections. With Canon’s latest mobile business solution, you can print documents, photos and web pages with just one app. Click here to find out more!

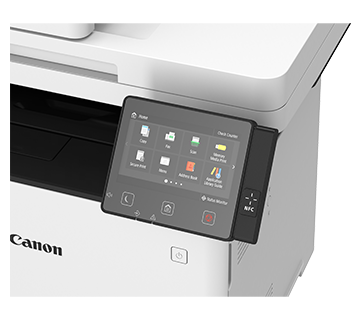

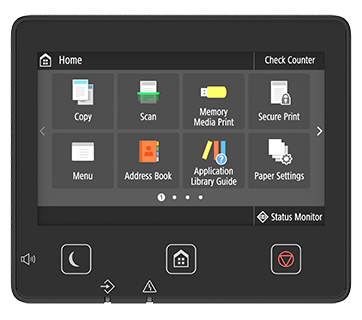

The iR1643iF features a simple to operate and intuitive colour touchscreen, allowing for easy customisation of day-to-day tasks via selectable onscreen icons.



Improve your workflow efficiency with fast outputs, large paper input capacity and rich media support. Single-pass document feeder with automatic, two-sided scanning ensures document digitisation processing is at its optimum.



Control access and keep your files confidential with a range of advanced security and encryption options. The iR1643iF also include latest technology to verify that the device boot process, firmware, and applications initialise without alterations or tampering.

CANON Mono Multi-function Digital Copier iR1643iF Specifications
Main Unit
Machine TypeMonochrome A4 Laser Multifunctional
Core FunctionsPrint, Copy, Scan, Send and Fax
Control Panel5 inch TFT LCD WVGA Colour Touch panel
MemoryStandard: 1.0GB RAM
Interface ConnectionNETWORK Standard:
1000Base-T/100Base-TX/10-Base-T, Wireless LAN (IEEE 802.11 b/g/n), NFC, Wi-Fi Direct Connection

OTHERS Standard:
USB 2.0 (Host) x2, USB 2.0 (Device) x1
Memory MediaStandard: USB Memory
Network SecurityStandard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP
Document SecurityStandard: Secure Print, Encrypted PDF, Device signature
Paper Supply Capacity (A4, 80gsm)Standard: 650 sheets
Paper Cassette: 550-sheet
Multi-purpose tray: 100-sheet
Maximum: 2,300 sheets (with PAPER FEEDER PF-C1x3)
Paper Output Capacity (A4, 80 gsm)150 sheets
Supported Media TypesUpper Cassette 1:
Thin, Plain, Thick, Colour, Recycled, Bond
Multi-purpose tray:
Thin, Plain, Thick, Colour, Recycled, Bond, Label, Envelope
Supported Media SizesUpper Cassette 1:
Standard size: A4, B5, A5, A5R, A6
Custom size: Min. 105.0 x 148.0 mm up to 216.0 x 355.6 mm

Multi-purpose tray:
Standard size: A4, B5, A5, A5R, A6, Index Card, Envelopes [No. 10(COM 10), Monarch, ISO-C5, DL]
Custom Size: Min. 76.2 x 127.0 mm up to 216.0 x 355.6 mm
Supported Media WeightsUpper Cassette 1: 60 to 120 gsm
Multi-purpose tray: 60 to 199 gsm
Duplex: 60 to 120 gsm
Warm-up TimeFrom Power On: 14 Seconds or Less*1
From Sleep Mode: 4 Seconds or Less
Dimensions (W x D x H)494 x 595 x 452 mm (with the Multi-purpose tray extended)
Installation Space (W x D)708 x 1,105 mm (with Cassette open + 100 mm gap around the main body)
WeightStandard: Approx. 19 kg without toner
Print Speed (BW)43 ppm (A4)
Print Resolution (dpi)600 × 600
Page Description LanguagesUFR II, PCL6, PCL5, Adobe®PostScript®3™
Direct PrintDirect printing available from USB memory, LPR
Supported file types: TIFF, JPEG, PDF and XPS (only LPR)
FontsPCL fonts: 93 Roman
PS fonts: 136 Roman
Operating SystemUFRII/PCL/PS: Windows®7/8.1/10/Server2008/Server2008 R2/Server2012/Server2012 R2/Server2016, Mac OS X (10.9 or later)
Copy Speed (ppm)43 ppm (A4)
First-Copy-Out Time (A4)Platen: Approx. 6.3 seconds or less
ADF: Approx. 6.4 seconds or less
Copy resolution (dpi)Reading / Printing: 600 x 600
Printing: 600 x 600
Multiple CopiesUp to 999 copies
Copy DensityAutomatic or Manual (9 Levels)
Magnification25% – 400% (1% Increments)
Preset Reductions25%, 50%, 70%, 81%, 86%
Preset Enlargements115%, 122%, 141%, 200%, 400%
Document Feeder Type1PDS
Paper CapacityA4: 50 sheets (80 gsm)
Acceptable Originals and WeightsPlaten: Sheet, Book, 3-Dimensional Objects (Height: up to 20mm)

Document Feeder sheet media weight :
1-sided/2-sided continuous scanning: 50 to 105 gsm
Supported Media SizesSheet media size: A4R, B5R, A5R, A6R
Custom size: 105×128 mm to 215.9×355.6 mm
Scan Speed (ipm: BW/CL; A4)Copy:
1-sided Scanning: 20
2-sided Scanning: 34

1-sided Scanning(BW/CL): 38/13
2-sided Scanning(BW/CL): 70/26
Scan Resolution (dpi)Copy: 600 x 600
Send (Push, Pull)/Fax: up to 600 x 600
Pull Scan SpecificationsScanGear MF For both TWAIN and WIA ScanGear MF For both TWAIN and WIA
Windows® 7/8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016, Mac OS X (10.9 or later)
Scan MethodSend functionality available.
Scan to USB Memory Key
TWAIN/WIA Pull scanning available.
DestinationE-mail/Internet FAX (SMTP), SMB, FTP

Address BookLDAP (50)/Local (300)/Speed dial (281)
Send Resolution (dpi)Push: 196 x 204 (I-FAX)
300 x 300 (email/SMB/FTP)
Pull: Max. 9,600 x 9,600
Communication ProtocolFile: FTP, SMB
E-mail/I-Fax: SMTP, POP3, I-Fax (Simple)
File FormatTIFF, JPEG, PDF(Compact, Searchable, Encrypted, Digital Signature)
Maximum Number of Connection Lines1
Modem SpeedSuper G3: 33.6 kbps
G3: 14.4 kbps
Compression MethodMH, MR, MMR, JBIG
Resolution (dpi)400 x 400 (Ultrafine), 200 x 400 (Superfine), 200 x 200 (Fine/ Photo), 200 x 100 (Normal)
Sending / Recording SizeA4, B5*2, A5*2, A6*2
FAX / MemoryUp to 512 pages
Speed DialsMax. 281 coded-dials, max. 299 group dials
Group Dials / DestinationsMax. 299 dials
Sequential BroadcastMax. 310 addresses
Memory BackupYes
Memory MediaStandard: USB Memory
NetworkStandard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP
DocumentStandard: Secure Print, Encrypted PDF, Device signature
Operating EnvironmentTemperature: 10 to 30 ºC (50 to 86 ºF)
Humidity: 20 to 80 % RH (Relative Humidity)
Power SourceAC220-240V:3.9A,50/60Hz
Power ConsumptionMaximum: Approx. 1420W or less
Toner Cartridge/sToner T06 Black
Toner (Estimated Yield @ 6% Coverage)oner T06 Black: 20,500 impressions (A4)
Paper Supply Options
Feeder OptionsPAPER FEEDER PF-C1

Paper Capacity:550 sheets (80 gsm)

Paper Size: A4,B5,A5,A5R,A6,
Custom size:105.0 x 148.0mm to 216.0 x 355.6mm

Dimensions (W x D x H): 480 x 464 x 842*3mm
Weight: Approx. 4.0 kg
Hardware Accessories
System and Controller options
System AccessoriesCONTROL I/F KIT-C1
*1 – Time from device power-on, until copy ready (not print reservation).
*2 – Sent as A4.
*3 – Attached to the main unit.

Product Catalogue PDF file : CANON Mono Multi-Function Copier iR1643iF 6.13MB

(You need to install Acrobat Reader to open the PDF files.)
