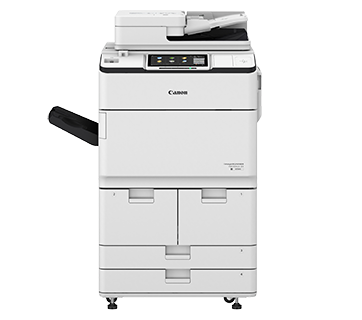

Canon Heavy Duty Mono Multi-Function Copier - iR ADV DX 6765i

Superior scan speed with reliable performance for high volume printing

The imageRUNNER ADVANCE DX 6765i fulfills demanding office requirements with high volume printing capability. With as high speed scanning and various security features, this device will be a valuable asset to digitally transform the office environment.

  • 65ppm (Print) / 270ipm (Scan)
  • Print, Copy, Scan, Send and Store.
  • 10.1-inch Colour Touch Panel
  • Print Resolution 1,200 x 1,200 dpi
  • Single-Pass DADF as Standard

RSP : RM48,010.00 / unit.
FREE : 1 year on-site warranty.

RENTAL : RM1,250.00 / month.


• Intuitive touchscreen provides users with smartphone-like usability, making navigation a breeze.

• Industry leading Single-Pass document feeder allows up to 270 ipm scanning, supports paper skew prevention and comes with advanced anti-dust/streak measures.

• Canon’s MEAP platform provides process optimisation, by integrating with a range of powerful document, capture and output management solutions.

• Scalable support for mobile where users can connect directly to the device with Direct Access Point. Capture, scan or print documents easily with the Canon Print Business app.

• Supports scanning and converting documents to Searchable PDF, Microsoft® Word, and Microsoft® PowerPoint files.

• Intelligent features, such as motion sensor technology to wake the device from sleep mode and the ability to remove blank pages when scanning, help maximise productivity.

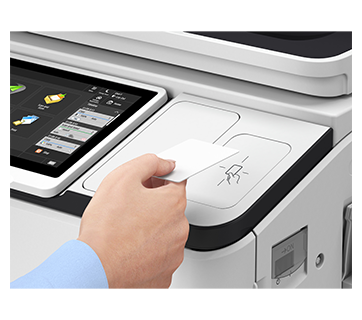

• Control who has access to the device with different authentication methods such as picture login, department ID, user authentication and card access.

• Ensure information privacy and security across your network with IPsec, port filtering capabilities, and SSL technology.

• System verification at startup and McAfee® Embedded Control ensures device security, protecting against malware and tampering of firmware.

• Integrate with third-party solutions for complete monitoring protection.

• Canon’s signature reliability and engine technologies provide high quality output to meet the needs of busy departments.

• State-of-the-art imaging technologies and toner allow for consistently striking images in rich black-and-white tones.

• Designed to achieve maximum uptime with status notifications to help keep supplies replenished, intuitive user walk through videos guide users to replace toner on the fly.

• Ease administrative burdens and increase uptime with eMaintenance. Automate your fleet maintenance task, improve consumables management and gain better control of networked devices.

• Standard PCL support integration with enterprise applications and legacy systems to help streamline business processes.

• The ability to apply print policies, monitor output, and restrict usage by user helps reduce unnecessary printing, resulting in lower total document cost.

• Seamless integration with output management solutions, such as uniFLOW or uniFLOW Online Express for detailed tracking, reporting, and cost analysis.

• Quality and reliability, combined with remote diagnostics and assistance, can help reduce costs by minimising downtime and time spent by IT.

• Consistent user operation combined with remote and centralised fleet management can help simplify IT management of devices and entire fleets.

• Fusing technologies and innovative sleep mode features help lower overall energy consumption.

• Minimise paper wastage by holding jobs at the device with Force Hold Print. Choose to preview your print jobs or even change print settings at the device to achieve the desired results at the first time of printing.

Canon Mono Multi-Function Copier – iR ADV DX 6755i / 6765i / 6780i Specifications
Main Unit
Machine TypeA3 Monochrome Laser Multifunctional
Core FunctionsPrint, Copy, Scan, Send, Store and Optional Fax
ProcessorCanon Dual Customer Processor (Shared)
Control PanelStandard: 10.1″ TFT LCD WSVGA Colour Touch panel
Optional: 10.4″ TFT LCD SVGA Colour Upright Touch panel
MemoryStandard: 3.0GB RAM
Hard Disk DriveStandard*1: 320GB (available disk space: 250GB)
Optional: 250GB, 1TB
Mirroring Hard Disk DriveOptional
Interface ConnectionNETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth Low Energy

Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1
Optional: Serial Interface, Copy Control Interface
Paper Supply Capacity (A4, 80 gsm)Standard:
4,200 sheets
100-sheet Multi-purpose tray x 1
1,500-sheet Paper Deck x 2
550-sheet Paper Cassette x2

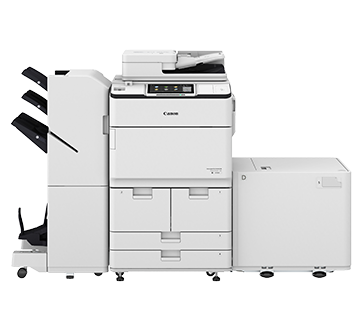

7,700 sheets (with Paper Deck Unit-E1 or POD Deck Lite-C1)
Paper Output Capacity (A4, 80 gsm)250 Sheets (with Copy Tray-R2)
Maximum: 3,500 Sheets (with Staple Finisher-AC1 or Booklet Finisher-AC1)
Finishing CapabilitiesWith options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, C-fold
Supported Media TypesMulti-purpose tray:
Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab

Paper Decks (Right/Left):
Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead

Paper Cassettes (Upper/Lower):
Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead, Tab*2
Supported Media SizesMulti-purpose tray:
Standard size: A3, A4, A4R, A5*3, A5R, A6R*4, B4, B5, B5R
Custom size: 100.0 x 148.0 mm to 297.0 x 487.7 mm
Free size: 100.0 x 148.0mm to 297.0mm x 487.7mm

Paper Decks (Right/Left):
Standard size: A4, B5

Paper Cassettes (Upper/ Lower):
Standard size: A3, A4, A4R, A5R, B4, B5, B5R
Custom size: 139.7 x 182.0 mm to 297 x 487.7 mm
Supported Media WeightsMulti-purpose tray: 52 to 256 gsm
Paper Deck (Right/Left): 52 to 220 gsm
Paper Cassette (Upper/Lower): 52 to 220 gsm
Duplex: 52 to 220 gsm
Warm-up TimeQuick Start-up Mode: 4 seconds or less*5
From Sleep Mode: 30 seconds or less
From Power On: 30 seconds or less*6
Dimensions (W x D x H)670 x 770 x 1,185 mm
With optional Upright Control Panel: 1,170 x 770 x 1,252 mm
Installation Space (W x D)Basic: 1,533 x 1,353 mm (with Multi-purpose tray/upper-right cover open + Front cover open + Copy Tray) Fully configured: 2,436 x 1,353 mm (with POD Deck Lite-C1 + Document Insertion/Folding Unit-J1 + Booklet Finisher-AC1/Staple Finisher-AC1 + Main unit Front cover open )
WeightiR-ADV DX 6780i/6765i/6755i: Approx. 219 kg*7, Approx. 223 kg*8
Print SpeediR-ADV DX 6780i:
Up to 80 ppm (A4), up to 40 ppm (A3), up to 58 ppm (A4R), up to 35 ppm (A5R)

iR-ADV DX 6765i:
Up to 65 ppm (A4), up to 32 ppm (A3), up to 47 ppm (A4R), up to 35 ppm (A5R)

iR-ADV DX 6755i:
Up to 55 ppm (A4), up to 32 ppm (A3), up to 40 ppm (A4R), up to 35 ppm (A5R)
Print Resolution (dpi)1,200 x 1,200
Page Description LanguagesStandard: UFR II, PCL6
Optional: Adobe®PostScript®3™
Direct PrintSupported file types: PDF, EPS, TIFF/JPEG, and XPS
Printing from Mobile and CloudAirPrint, Mopria, Google Cloud Print, Canon Business PRINT and uniFLOW Online

A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.
FontsPS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*9 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*10
Print FeaturesSecured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer
Operating SystemUFRII: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later)

PCL: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019

PS: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later)

PPD: Windows® 7 / 8.1 / 10, Mac OS X (10.9 or later)

As of July, 2019.
Copy SpeediR-ADV DX 6780i:
Up to 80 ppm (A4), up to 40 ppm (A3), up to 58 ppm (A4R), up to 35 ppm (A5R)

iR-ADV DX 6765i:
Up to 65 ppm (A4), up to 32 ppm (A3), up to 47 ppm (A4R), up to 35 ppm (A5R)

iR-ADV DX 6755i:
Up to 55 ppm (A4), up to 32 ppm (A3), up to 40 ppm (A4R), up to 35 ppm (A5R)
First-Copy-Out Time (A4)iR-ADV DX 6780i: Approx. 3.1 seconds or less
iR-ADV DX 6765i: Approx. 3.3 seconds or less
iR-ADV DX 6755i: Approx. 3.3 seconds or less
Copy Resolution (dpi)600 x 600
Multiple CopiesUp to 999 copies
Copy DensityAutomatic or Manual (9 Levels)
MagnificationVariable zoom: 25% to 400% (1% Increments)

Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%
Copy FeaturesPreset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Mirror Image, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Free Size Original, Reserved copy, Copy Sample
TypeSingle-pass Duplexing Automatic Document Feeder [2-sided to 2-sided (Automatic)]

Detect Feeder Multi Sheet Feed is supported.
Document Feeder Paper Capacity (80 gsm)Up to 200 Sheets
Acceptable Originals and WeightsPlaten: Sheet, Book, and 3-Dimensional Objects

Document Feeder media weight:
1-sided scanning: 38 to 220 gsm (BW, CL)
2-sided scanning: 38 to 220 gsm (BW, CL)
An acceptable weights of A6R or smaller is 50 to 220gsm.
Supported Media SizesPlaten max. scanning size: up to 297.0 x 431.8 mm

Document Feeder media size:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R

Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm
Scan Speed (ipm, BW/CL, A4)1-sided Scanning:
135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy)

2-sided Scanning:
270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)
Scan Resolution (dpi)Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600
Pull Scan SpecificationsColour Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows® 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016
Scan MethodPush Scan, Pull Scan, Scan to Box, Scan to Advanced Box, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud (uniFLOW Online)
DestinationStandard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box
Optional: Super G3 FAX, IP Fax
Address BookLDAP (2,000)/Local (1,600)/Speed dial (200)
Send Resolution (dpi)Push: up to 600 x 600
Pull: up to 600 x 600
Communication ProtocolFile: FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV
E-mail/I-Fax: SMTP, POP3
File FormatStandard: TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
Universal Send FeaturesOriginal Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages
Fax (Options)
Maximum Number of Connection Lines4
Modem SpeedSuper G3: 33.6 kbps
G3: 14.4 kbps
Compression MethodMH, MR, MMR, JBIG
Resolution (dpi)400×400 (Ultra Fine), 200×400 (Super Fine), 200×200 (Fine), 200×100 (Normal)
Sending/Receiving SizeSending: A3, A4, A4R, A5*11, A5R*11, B4, B5*12, B5R*11
Receiving: A3, A4, A4R, A5R, B4, B5, B5R
FAX MemoryUp to 30,000 pages (2,000 jobs)
Speed DialsMax. 200
Group Dials / DestinationsMax. 199 dials
Sequential BroadcastMax. 256 addresses
Memory BackupYes
Fax FeaturesSender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log
Mail Box (Number Supported)100 User Inboxes
1 Memory RX Inbox
50 Confidential Fax Inboxes
Maximum 30,000 Pages (2,000 jobs) Stored
Advanced BoxCommunication Protocol: SMB or WebDAV
Supported Client PC: Windows® 8.1/10
Concurrent Connections (Max.): SMB:64, WebDAV:3
Advanced Box Available Disc SpaceStandard:16 GB
(With option: max. 480GB)
Advanced Box FeaturesAuthentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore
Authentication and Access ControlStandard: User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)
Document SecurityPrint Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*13), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark)
Network SecurityTLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception
Device SecurityProtecting HDD Data (HDD Data Encryption (FIPS140-2 Validated), HDD Data Overwrite Erase, HDD Lock), Standard HDD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection)
Optional: IEEE2600.2 (Common Criteria Certification) (TBD)
Device Management and AuditingAdministrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting
Operating EnvironmentTemperature: 10 to 30 ºC
Humidity: 20 to 80 % RH (Relative Humidity)
Power Source220-240V, 50/60Hz, 10A
Power ConsumptionMaximum: Approx. 2,400 W
Standby: Approx. 256 W*14
Sleep mode: Approx. 0.9 W*15

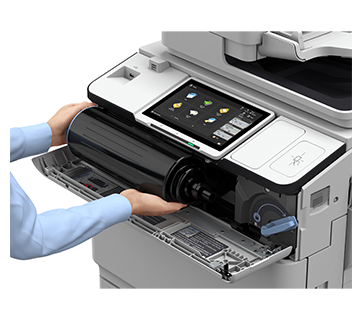

Toner CartridgesNPG-54 Black Toner
Toner (Estimated Yield @ 6% Coverage)56,000 pages
Software and Printer Management
Tracking and ReportingUniversal Login Manager (ULM)
uniFLOW Online Express
Remote Management ToolsiW Management Console
Content Delivery System
Scanning SoftwareNetwork ScanGear
Optimisation ToolsCanon Driver Configuration Tool
NetSpot Device Installer
PlatformMEAP (Multifunctional Embedded Application Platform)
Document PublishingIW DESKTOP
Fiery Print Controller Specifications
Optional / StandardOptional on all models
NameCanon imagePASS-Y3 V1.1 (Server)
Print Resolution (dpi)1200 x 1200, 600 x 600
Page Description Language(s)PCL6, Adobe® PostScript®3™
Memory8GB (2 x4GB)
Hard Disk Drive500 GB SATA
Processor SpeedIntel Pentium G4400 (3.3GHz)
SystemFS350 Pro
FontsPS: 138 Fonts
PCL: 113 Fonts
Supported Operating SystemsWindows 7 64 bit/Windows 8.1 64 bit/Windows 10 64 bit/Windows Server 2008 R2 64bit only/Windows Server 2012 64bit only (Only Printer driver support)/Windows Server 2012 R2 64bit only/Windows Server 2016 R2 64 bit only, MAC OS (10.11,10.12, 10.13, 10.14)
Interface2 x Ethernet (1000Base-T/100Base-TX/10Base-T), USB 3.0 x 2 (rear), x 3 (front on Fiery Quick Touch TM), USB 2.0 x 4 (rear)
Network ProtocolsTCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP)
Direct PrintPDF1.7, EPS, TIFF6, JDF1.4/JMF (Optional)
VDPFreeForm v1, v2.1, PPML, PDF/VT-1, PDF/VT-2, Creo VPS
Fiery Print Controller Standard FeaturesFiery Command WorkStation6/Paper Catalog/Fiery Remote Scan/Fiery Hot Folders & Virtual Printers/Fiery JDF
Fiery Print Controller OptionsFiery Impose/Fiery Compose/Fiery Impose and Compose/Removable HDD kit/Fiery Image Viewer
HW PlatformNX One
Base OSWindows 10 IoT Enterprise 2019 LTSC
Power SourceAC100-240V, 50Hz/60Hz, 3.0A (100V) – 1.5A (240V)
Maximum Power Consumption53 W
Dimensions (W x D x H)203 x 248 x 384 mm
WeightServer unit only: Approx. 5.9 kg
Paper Supply Options
Paper Deck Unit-E1Paper Capacity: 3,500 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead
Paper Size: A4, B5
Paper Weight: 52 to 256 gsm
Power Source: from the Main Unit
Dimensions (W x D x H): 340 x 630 x 572 mm (attached to the main unit)
Weight: Approx. 34 kg
POD Deck Lite-C1Paper Capacity: 3,500 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab
Paper Size: A3, A4, A4R, A5R, B4, B5, B5R
Custom size: 139.7 x 182.0 mm to 297.0 to 487.7 mm
Paper Weight: 52 to 256 gsm
Power Source: 220-240V, 50/60Hz, 1.2A
Dimensions (W x D x H): 633 x 686 x 574 mm (attached to the main unit)
Weight: Approx. 68 kg
Hardware Accessories
Card ReadersCopy Card Reader-F1
Copy Card Reader Attachment-A4
OthersUpright Control Panel-J1
Utility Tray-B1
Tab Feeding Attachment Kit-B1
Shift Tray-F1
Numeric Keypad-A1
Finisher Jogger Kit-A1
Printer Cover-H2
Security Options
Device SecurityiR-ADV Security Kit-AJ1 for IEEE 2600 Common Criteria Certification (TBD)
Data Security2.5inch/250GB HDD-N1
2.5inch/1TB HDD-P1
HDD Mirroring Kit-J1
System and Controller Options
Print AccessoriesPCL International Font Set-A1
PCL Asian Font Set-A1
PS Printer Kit-BC1/CH1
Barcode PrintingBarcode Printing Kit-D1
EFI-Fiery Based Controller OptionsimagePASS-Y3 V1.1
EFI-Fiery Based Controller OptionsFiery Impose
Fiery Compose
Fiery Impose and Compose
Fiery imageViewer
Removable HDD Kit-B6
System AccessoriesSerial Interface Kit-K3
NFC Kit-E1
Copy Control Interface Kit-A1
Connection Kit-A2 for Bluetooth LE
FAX AccessoriesSuper G3 FAX Board-AS1
Super G3 2nd Line Fax Board-AS1
Super G3 3rd/4th Line Fax Board-AS1
Remote Fax Kit-A1
IP FAX Expansion Kit-B1
Other Options
Accessibility AccessoriesADF Access Handle-A1
Voice Guidance Kit-G1
Voice Operation Kit-D1
Staple CartridgeStaple Cartridge-X1
Staple Cartridge-Y1
*1 A different initial HDD may be used.
*2 Tab Feeding Attachment-B1 is required.
*3 Supported media weights: more than 64 gsm.
*4 Supported media weights: more than 91 gsm.
*5 Time from device power on to when the copy icon appears and is enabled to operate on the touch panel display.
*6 Time from device power-on, until copy ready(not print reservation).
*7 Including ADF, Flat Touch Panel and the toner bottle.
*8 Including ADF, optional Upright touch panel and the toner bottle.
*9 Optional PCL International Font Set-A1 is required.
*10 Optional Barcode Printing Kit-D1 is required.
*11 Sent as A4.
*12 Sent as B4 short.
*13 Requires uniFLOW Online / uniFLOW.
*14 Reference value: measured one unit.
*15 0.9 W sleep mode is not available in all circumstances due to certain settings.

Product Catalogue PDF file : CANON Mono Multi-Function Copier iR ADV DX 6765i 918KB

(You need to install Acrobat Reader to open the PDF files.)
