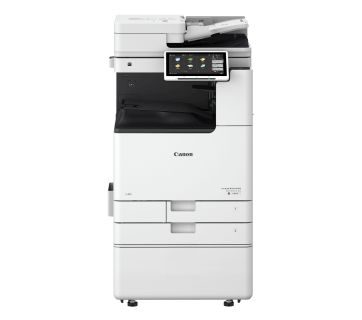

Canon Medium Duty Mono Multi-Function Copier - iR ADV DX 4835i

Smart, efficient, and easy to use

The imageRUNNER ADVANCE DX 4835i aims to provide efficiency by simplifying workflows. With robust security features and seamless integration with output management solutions, the new series is perfect for dynamic office environments.

  • 35ppm
  • Print, Copy, Scan, Send and Store.
  • 10.1-inch Colour Touch Panel
  • Network, Wi-Fi, USB 3.0 connectivity

RSP : RM19,328.00 / unit.
FREE : 1 year on-site warranty.

RENTAL : RM515.00 / month.

FEATURES

• Intuitive touchscreen provides users with smartphone-like usability, making navigation a breeze.

• Industry leading Single-Pass document feeder option to allow up to 270 ipm scanning, supports paper skew prevention and comes with advanced anti-dust/streak measures.

• My ADVANCE enables a unique, personal experience tailored to meet each user’s workflow needs. Settings, such as display language, initial log-in screen, and accessibility options, can be synchronised across multiple devices for consistency.

• Canon’s MEAP platform provides process optimisation, by integrating with a range of powerful document, capture and output management solutions.

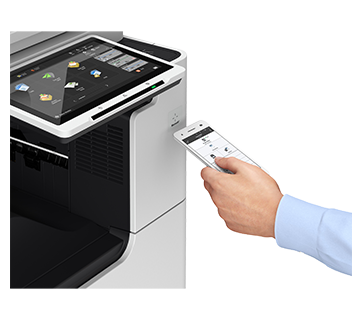

• Scalable support for mobile where users can connect directly to the device with Direct Access Point. Capture, scan or print documents easily with the Canon Print Business app.

• Intelligent Recovery wakes device from sleep mode when user is approaching device via motion sensor technology.

• Various finishing functions such as Staple-on-Demand, ECO- Staple, saddle stitch, double/corner stapling and foldings are available as an option.

• Control who has access to the device with different authentication methods such as picture login, department ID, user authentication and card access.

• Ensure information privacy and security across your network with IPsec, port filtering capabilities, and SSL technology.

• Enhance document confidentiality with encrypted secure print, secure print, secure watermark, encrypted PDF and device signature PDF.

• Ensure device is safe from unknown firmware installation with system verification at startup.

• Integrate with third-party solutions for complete monitoring protection.

• Canon’s signature reliability and engine technologies contribute to high-quality output to meet the needs of busy department.

• State-of-the-art imaging technologies and toner allow for consistent images in rich black-and-white tones and 1,200-dpi print resolution.

• Canon’s device management tools give you a centralised point of control across your entire fleet, upgrade devices remotely, check device and consumables status and capture meter readings.

• Standard PCL and optional Adobe PostScript 3 print driver allows seamless integration with enterprise applications.

• Remote diagnostics allow timely, accurate and effective resolution.

• Intuitive user maintenance videos and status notifications available to help achieve maximum uptime and keep supplies replenished.

• The ability to apply print policies, monitor output, and restrict usage by user helps reduce unnecessary printing, resulting in lower total document cost.

• Seamless integration with output management solutions, such as uniFLOW or uniFLOW Online Express for detailed tracking, reporting, and cost analysis.

• Quality and reliability, combined with remote diagnostics and assistance, can help reduce costs by minimising downtime and time spent by IT.

• Consistent user operation combined with remote and centralised fleet management can help simplify IT management of devices and entire fleets.

• Fusing technologies and innovative sleep mode features help lower overall energy consumption.

• Minimise paper wastage by holding jobs at the device with Force Hold Print. Choose to preview your print jobs or even change print settings at the device to achieve the desired results at the first time of printing.

• Consumes as little as 0.8W in sleep mode.

Canon Mono Multi-Function Copier – iR ADV DX 4825i / 4835i / 4845i Specifications
Main Unit
TypeA3 Monochrome Laser Multifunctional
Core FunctionPrint, Copy, Scan, Send, Store and Optional Fax
ProcessorCanon Dual Custom Processor (Shared)
Control Panel10.1 inch TFT LCD WSVGA Colour Touch panel
MemoryMain CPU Side: 2 GB
Image Processing CPU Side: 1 GB + 0.5 GB
StorageStandard: (SSD) 256 GB
Optional: (SSD) 1 TB
Interface ConnectionNETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: Bluetooth Low Energy

OTHERS
Standard: USB 2.0 x1 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device)
Optional: Serial Interface, Copy Control Interface
Paper Supply Capacity (A4, 80 gsm)Standard: 1,200 sheets
1 x 100 sheets multi-purpose tray
2 x 550 sheets standard cassettes

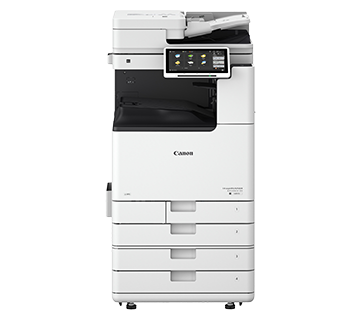

Maximum: 3,650 sheets (with High Capacity Cassette Feeding Unit-E1)
Paper Output Capacity (A4, 80 gsm)Standard: 250 sheets

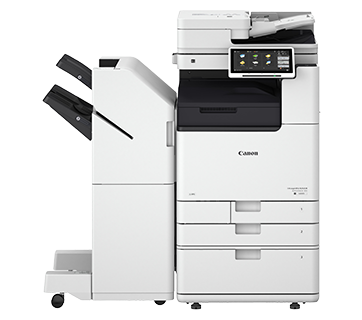

Maximum: 3,450 sheets (with Staple Finisher-AE1 or Booklet Finisher-AE1 and Copy Tray-T2)
Finishing Capabilities*1Standard: Collate, Group
With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, ECO Staple, Staple-On-Demand
Supported Media TypesMulti-purpose Tray: Thin, Plain, Heavy*2, Recycled, Coated*2, Colour, Tracing, Bond, Label, Pre-punched, Letterhead, Envelope

Upper Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Pre-punched, Letterhead, Envelope

Lower Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Pre-punched, Letterhead, Envelope*3
Supported Media SizesMulti-purpose Tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm
Free size: 100.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes: COM10 No.10, Monarch, ISO-C5, DL
Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mm

Upper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm
Envelopes: ISO-C5

Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes*4: COM10 No.10, Monarch, DL
Supported Media WeightsMulti-purpose Tray: 52 to 300 gsm*2
Supported paper weight with Media Adjustment Kit-A1: 60-300 gsm
Upper/Lower Cassette: 52 to 256 gsm
Duplex: 52 to 220 gsm
Warm-up Time
(Quick start mode: ON)
Quick Startup Mode: 4 seconds or less*5
From Sleep Mode: 10 seconds or less
From Power On: 10 seconds or less*6
Dimensions (W x D x H)With Platen Cover-Y3: 565 x 692 x 788 mm
With Single Pass DADF-C1: 565 x 722 x 897 mm
With DADF-BA1: 565 x 719 x 891 mm
Installation Space (W x D)Basic:
978 x 1,119 mm (with Single Pass DADF-C1 + right door & multi-purpose tray opened + paper cassette opened)
978 x 1,116 mm (with DADF-BA1 + right door & multi-purpose tray opened + Paper cassette open)

Fully Configured:
1,651 x 1,119 mm (with Single Pass DADF-C1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette open)
1,651 x 1,116 mm (with DADF-BA1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette open)
Weight (Including toner)With Platen Cover-Y3: Approx. 62 kg
With Single Pass DADF-C1: Approx. 75 kg
With DADF-BA1: Approx. 69 kg
Print
Print Speed (1 sided)iR-ADV DX 4845i up to: 45 ppm (A4, A5, A5R, A6R), Up to 22 ppm (A3), Up to 32 ppm (A4R)

iR-ADV DX 4835i up to: 35 ppm (A4, A5, A5R, A6R), Up to 17 ppm (A3), Up to 23 ppm (A4R)

iR-ADV DX 4825i up to: 25 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
Print Resolution (dpi)1,200 x 600,
1,200 x 1,200 (half-speed)
Page Description LanguagesStandard: UFR II, PCL6
Optional: Adobe® PostScript® 3™
Direct Print (RUI)Supported File Types: PDF, EPS, TIFF/JPEG, XPS
Printing from Mobile and CloudAirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print
FontsPCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*7 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*8

PS fonts: 136 Roman
Operating SystemUFRII: Windows® 8.1 / 10 / 11 / Server2012 / Server2012 R2 / Server2016 / Server2019 / Server2022, Mac OS X (10.11 or later)
PCL: Windows® 8.1 / 10 / 11 / Server2012 /Server2012 R2 / Server2016 / Server2019 / Server2022
PS: Windows® 8.1 / 10 / 11 / Server2012 /Server2012 R2 / Server2016 / Server2019 / Server2022, Mac OS X (10.11 or later)
PPD: Windows® 8.1 / 10 / 11, Mac OS X (10.11 or later)
Copy
Copy Speed (1 sided)iR-ADV DX 4845i up to: 45 ppm (A4, A5, A5R, A6R), Up to 22 ppm (A3), Up to 32 ppm (A4R)

iR-ADV DX 4835i up to: 35 ppm (A4, A5, A5R, A6R), Up to 17 ppm (A3), Up to 23 ppm (A4R)

iR-ADV DX 4825i up to: 25 ppm (A4, A5, A5R, A6R) , Up to 15 ppm (A3), Up to 20 ppm (A4R)
First-Copy-Out Time (A4)iR-ADV DX 4845i: 4.6 seconds
iR-ADV DX 4835i: 5.5 seconds
iR-ADV DX 4825i: 6.1 seconds
Copy Resolution (dpi)600 x 600
Multiple CopiesUp to 9,999 copies
Copy DensityAutomatic or Manual (9 Levels)
MagnificationVariable zoom: 25% to 400% (1% Increments)
Preset reduction/enlargement (Others): 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%
Scan
TypeStandard: Colour Flatbed Scan Unit
Optional: Platen Cover-Y3, Single Pass DADF-C1*9 or DADF-BA1 [2-sided to 2-sided (Automatic with DADF)]
Document Feeder Paper Capacity (80 gsm)Single Pass DADF-C1: up to 200 Sheets
DADF-BA1: up to 100 Sheets
Acceptable Originals and WeightsPlaten: Sheet, Book, and 3-Dimensional Objects

Document Feeder media weight:
Single Pass DADF-C1:
1-sided scanning: 38 to 220 gsm
2-sided scanning: 38 to 220 gsm
An acceptable weight of A6R or smaller is 50 to 220 gsm.

DADF-BA1: 1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)
2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)
Supported Media SizesPlaten: max. scanning size: 297.0 x 431.8 mm

Single Pass DADF-C1:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R,
Custom size: 69.9 x 139.7 mm to 304.8 x 431.8 mm

DADF-BA1:
A3, A4, A4R, A5, A5R, B4, B5, B5R, B6,
Custom size: 139.7 x 128 mm to 297.0 x 431.8 mm
Scan Speed (ipm: BW/CL, A4)Single Pass DADF-C1:
1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy)
2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)

DADF-BA1:
1-sided Scanning: 70/70 (300 x 300 dpi, send), 51/51 (600 x 600 dpi, copy)
2-sided Scanning: 35/35 (300 x 300 dpi, send), 25.5/25.5 (600 x 600 dpi, copy)
Scan Resolution (dpi)Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600
Pull Scan SpecificationsColour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows® 8.1 / 10 / 11 / Server2012 / Server2012 R2 / Server 2016 / Server 2019 / Server 2022
Send
DestinationStandard: E-mail/Internet FAX (SMTP), SMB 3.1.1, FTP, WebDAV, Mail Box
Optional: Super G3 FAX, IP Fax
Address BookLDAP (2,000)/Local (1,600)/One-touch (200)
Send Resolution (dpi)Push: up to 600 x 600
Pull: up to 600 x 600
Communication ProtocolFTP: (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV
Email/iFax: SMTP(send), POP3(receive)
File FormatStandard: TIFF, JPEG, PDF(Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS(Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
Fax
Maximum Number of Connection Lines4
Modem SpeedSuper G3: 33.6 kbps
G3: 14.4 kbps
Compression MethodMH, MR, MMR, JBIG
Resolution (dpi)400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)
Sending and Receiving SizeSending: A3, A4, A4R, A5*10, A5R*10, B4, B5*11, B5R*10
Receiving: A3, B4, A4, A4R, A5R , B5, B5R
Fax MemoryUp to 30,000 pages (2,000 jobs)
Speed DialsMax. 200
Group Dials / DestinationsMax. 199 dials
Sequential BroadcastMax. 256 addresses
Memory BackupYes
Store
Box100 User Inboxes
1 Memory RX Inbox
50 Confidential Fax Inboxes
Maximum 30,000 Pages (2,000 jobs) Stored
Advanced BoxCommunication Protocol: SMB or WebDAV
Supported Client PC: Windows® 8.1/10
Concurrent Connections (Max.): SMB: 64, WebDAV: 3
Advanced Box Available Disc SpaceStandard: 16 GB
(With option: max. 480 GB)
Security
Authentication and Access ControlUser Authentication: Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login
Department ID Authentication: Department ID and PIN Login, Function Level Login
uniFLOW Online Express: PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login
Access Management System: Access Control
Document SecurityPrint Security: Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*12
Receive Data Security: Confidential Fax Inbox Forwarding Received Documents Automatically
Scan Security: Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration
BOX Security: Mail Box Password Protected, Advanced Space Access Control
Send Data Security: Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support
Document Tracking: Secure Watermark
Network SecurityTLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), Communication Line Separation (G3 FAX, USB Port, Advanced Space, Scan and Send -Virus Concerns for E-mail Reception)
Device SecurityProtecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFP Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP) (available at a later schedule)
Device Management and AuditingAdministrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting
Environmental
Operating EnvironmentTemperature: 10 to 30 º C
Humidity: 20 to 80 % RH (Relative Humidity)
Power Source220-240V, 50/60Hz, 5A
Power ConsumptionMaximum: Approx. 1,500 W
Copying (with DADF continuous scan): Approx. 666 W (220-240V)*13
Standby: Approx. 45.5 W (220-240V)*13
Sleep Mode: Approx. 0.8W*14
Consumables

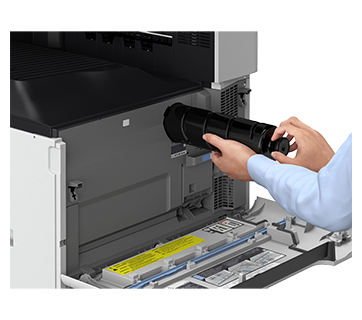

Toner Yield (Estimated Yield @6% coverage)NPG-86 Toner BK: 42,000 pages
Software and Printer Management
Tracking and ReportingUniversal Login Manager (ULM)
uniFLOW Online Express / uniFLOW Online
Remote Management ToolsiW Management Console
eMaintenance
Content Delivery System
Scanning SoftwareColor Network ScanGear 2
Optimisation ToolsCanon Driver Configuration Tool
PlatformMEAP (Multifunctional Embedded Application Platform)
Document PublishingiW DESKTOP
Paper Supply Options
Cassette Feeding Unit-AW1Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm)

Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead

Paper Size:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm

Paper Weight: 52 to 256 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 565 x 635 x 248 mm
Weight: Approx. 16.0 kg
High Capacity Cassette Feeding Unit-E1Paper Capacity: 2,450 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead
Paper Size: A4
Paper Weight: 52 to 256 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 565 x 650 x 248 mm
Weight: Approx. 28.0 kg
Hardware Accessories
Card ReadersCopy Card Reader-F1
Copy Card Reader Attachment-B7
IC Card Reader Box for Numeric Keypad-A1
OthersSingle Pass DADF-C1
DADF-BA1
Platen Cover-Y3
Utility Tray-B1
Numeric Keypad-A2
Media Adjustment Kit-A1
250GB SSD-A1
1TB SSD-A1
Memory Mirroring Kit-A1
System and Controller Options
Print AccessoriesPCL International Font Set-A1
PS Printer Kit-BG1
Barcode Printing Kit-D1
System AccessoriesCopy Control Interface Kit-A1
Serial Interface Kit-K3
Connection Kit-A3 for Bluetooth LE
Fax AccessoriesSuper G3 FAX Board-BH1
Super G3 2nd Line Fax Board-BH1
Super G3 3rd/4th Line Fax Board-AX1
Remote Fax Kit-A1
IP FAX Expansion Kit-B1
Other Options
Accessibility AccessoriesADF Access Handle-A1
Voice Guidance Kit-G1
Voice Operation Kit-D1
Staple CartridgesStaple Cartridge-Y1
Staple-P1
*1 Finishing capabilities vary depending on the options connected.
*2 SRA3 is unsupported for Coated (257-300 gsm) and Heavy (257-300 gsm) paper.
*3 Envelope Feeder Attachment A (standard) is required.
*4 Envelope Attachment A (standard) is required.
*5 Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.
*6 Time from device power-on, until copy ready (not print reservation).
*7 Optional PCL International Font Set-A1 is required.
*8 Optional Barcode Printing Kit-D1 is required.
*9 Detect Feeder Multi Sheet Feed is supported.
*10 Sent as A4.
*11 Sent as B4 short.
*12 Requires uniFLOW Online/uniFLOW.
*13 Reference value: measured one unit.
*14 0.8 W is not available in all circumstances due to certain settings.

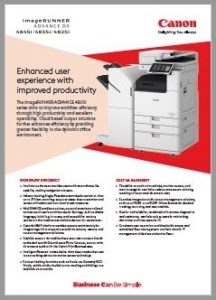

Product Catalogue PDF file : CANON Mono Multi-Function Copier iR ADV DX 4835i  1.3MB

(You need to install Acrobat Reader to open the PDF files.)
