Document Scanner imageFORMULA DR-M260
A more efficient, powerful and user-friendly scanner featuring state-of-the-art image processing capabilities
Remarkable scanning performance with supreme paper-handling reliability to keep your workfl ows fl uid and enhance productivity.
- 80-sheets capacity ADF
- 60 ppm / 120 ipm
- Up to 600 dpi in scanning resolution
- Suggested daily volume of 7,000 scans a day
RSP : RM7,441.00 / unit.
FREE : 1 year on-site warranty.
PERFORMANCE
USABILITY
Equipped with a newly developed image processing engine
The scanner mounts a new image processing engine, the DR Processor, which is equipped with a high-speed CPU. This makes fast, high-quality scanning possible without depending on the performance of your PC. It also makes support possible for the newest
interfaces such as USB3.1 Gen1.
The DR Processor reduces uneven coloring, allowing documents to be scanned as images that are more suitable for OCR (Optical Character Recognition).
User-friendly LCD Panel
Scanning status and count can be easily checked on LCD panel. Up to 99 jobs can be registered by combining commonly used scanning modes and output destinations. Users may select and execute a job from the LCD panel with a single click. With error and roller replacement noti cation incorporated to the LCD panel, the administrator is able to respond quickly should any problem arise.
Bundled software - CaptureOnTouch

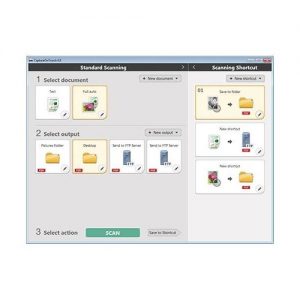

CaptureOnTouch V4 provides easier and more effective scanning with new GUI, including a simple one-click operation for routine tasks such as scan-to-email or scan-to-desktop.
Two scanning methods are available to satisfy a variety of needs including adhoc and daily scanning. There is a “Standard Scanning” mode where scanning mode and output mode can be separately con gured, and a “Scanning Shortcut” method where the speci c scanning mode and output method are precon gured, allowing one-click operation.
High-speed scanning
Whether color, gray, or black and white, up to 120 sides (60 two-sided documents, 200 dpi, A4 portrait) can be scanned per minute in a fast, one-pass operation. In addition, the heavy-duty Auto Document Feeder can hold up to 80 sheets of paper.
Quiet operation
Noise is signi cantly reduced compared to the previous model, thanks to the improvements of incorporated mechanical components. Comfortable user environment is realized.
Supreme paper-handling reliability
Featuring intelligent self-revolving feeder rollers, the DR-M260 prevents skewed feeding when documents of different sizes are inserted together as its left and right rollers rotate independent of each other.
| CANON Document Scanner imageFORMULA DR-M260 Specifications | |
|---|---|
| General | |
| Bundled Software | ISIS/TWAIN Driver, CaptureOnTouch, CapturePerfect, Kofax VirtualReScan Basic |
| Dimensions (W x D x H) | Feed tray and eject tray closed: 285 × 254 × 231 mm Feed tray and eject tray open : 285 x 652 x 367 mm |
| Ejection pockets | – |
| Interface | SuperSpeed USB3.1 Gen1/Hi-Speed USB2.0 |
| MICR | – |
| On-Board Jogger | – |
| Operating Environment | Temperature: 10 – 35°C Humidity: 20% to 80% RH |
| Supported Operating System | Windows |
| Options / Consumables | Flatbed Scanner Unit 102, Barcode Module, 2D code Module, Exchange Roller Kit (feed roller and retard roller), Carrier Sheet (Passport), Carrier Sheet (A4) |
| Power | AC100 – 240 V |
| Power Consumption | Scanning: 23 W, Sleep mode: 1.4 W, Power Turned OFF: less than 0.1 W |
| Weight | Approx. 3.4 kg |
| Scanning Document | |
| Feeding Method | Automatic |
| Document thickness – Plain Paper | Page separation mode: Weight: 27 – 413 g/m2 Thickness: 0.04 – 0.49 mm Non Separation Mode: Weight: 27 – 413 g/m2 Thickness: 0.04 – 0.49 mm |
| Document thickness – Postcard | – |
| Document thickness – Business Card | Weight: 380 g/m2 or less Thickness: 0.45 mm |
| Document thickness – Card (ISO/IEC compliant) | 1.4 mm or less |
| Document thickness – Passport | 6 mm or less (including carrier sheet) |
| Feeding Capacity | 80 sheets |
| Document size – Plain Paper (A4/LTR) | Width: 50.8 – 216 mm, Length: 54 – 356 mm |
| Document size – Long Document Mode | Up to 5,588 mm (200dpi) |
| Document size – Postcard | Width: 88.9 – 108 mm, Length: 127 – 152 mm |
| Document size – Business card | Width: 50 – 55 mm, Length: 85 – 91 mm |
| Document size – Card (ISO/IEC compliant) | 54 x 86 mm (Horizontal feeding only. Embossed cards can be scanned) |
| Document size – Passport | 88 x 125 mm (ISO standard) When scanning, be sure to open the passport and insert it in the provided carrier sheet (for passports) beforehand. |
| Document size – Plastic card | – |
| Document size – Magnetic card | – |
| Scan |
|
| Light source | LED (red, green and blue) |
| Maximum Resolution | 600 dpi |
| Scan Resolution | 150 x 150dpi / 200 x 200dpi / 240 x 240dpi / 300 x 300dpi / 400 x 400dpi / 600 x 600dpi |
| Scanner Element | CIS |
| Scanner Type | Desktop sheetfed scanner |
| Scanning Modes | Black and white, Error diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, 256-level gray, 24-bit color |
| Scanning Side | Simplex / Duplex |
| Scanning speed | A4 / LTR, Portrait, 200dpi: Black and White: 60ppm (simplex) / 120ipm (duplex) Grayscale: 60ppm (simplex) / 120ipm (duplex) Colour: 60ppm (simplex) / 120ipm (duplex) |
| Suggested Daily Volume (Scans) | 7,000 |
Product Catalogue PDF file : CANON Document Scanner imageFORMULA DR-M260 579KB
