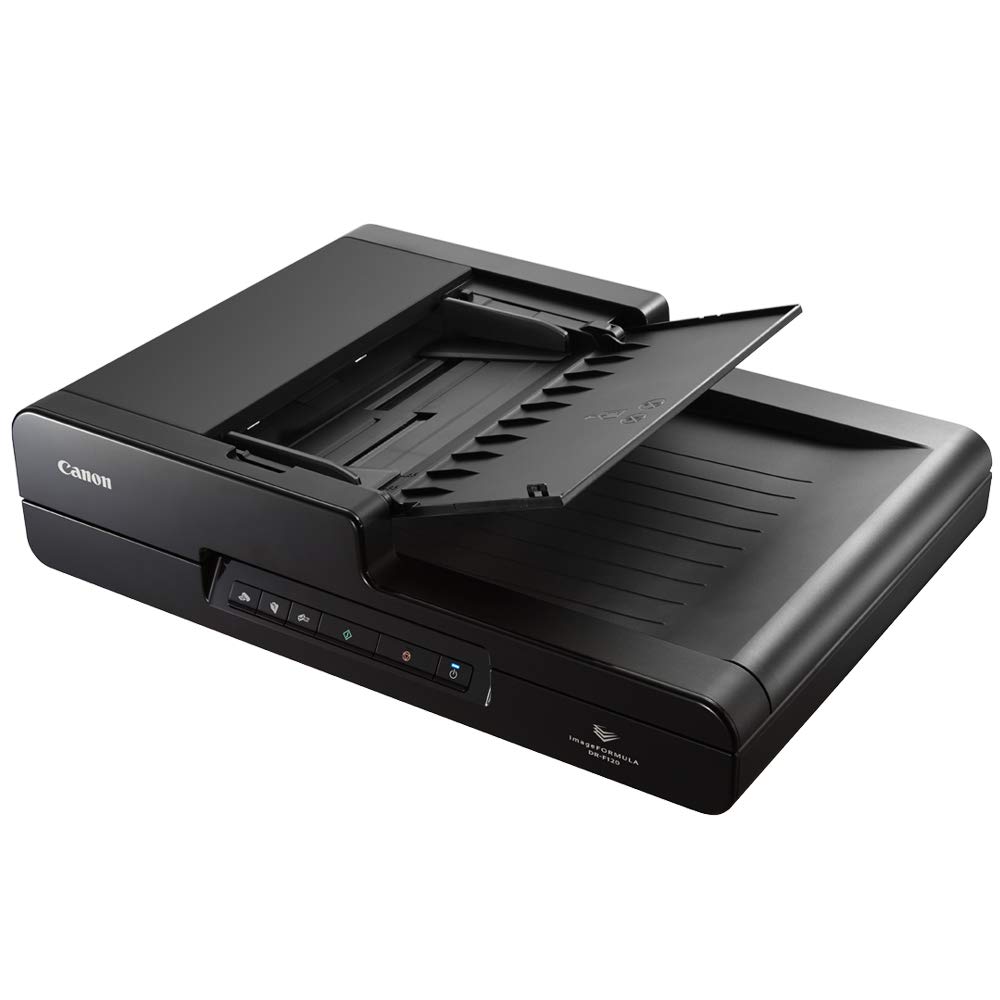

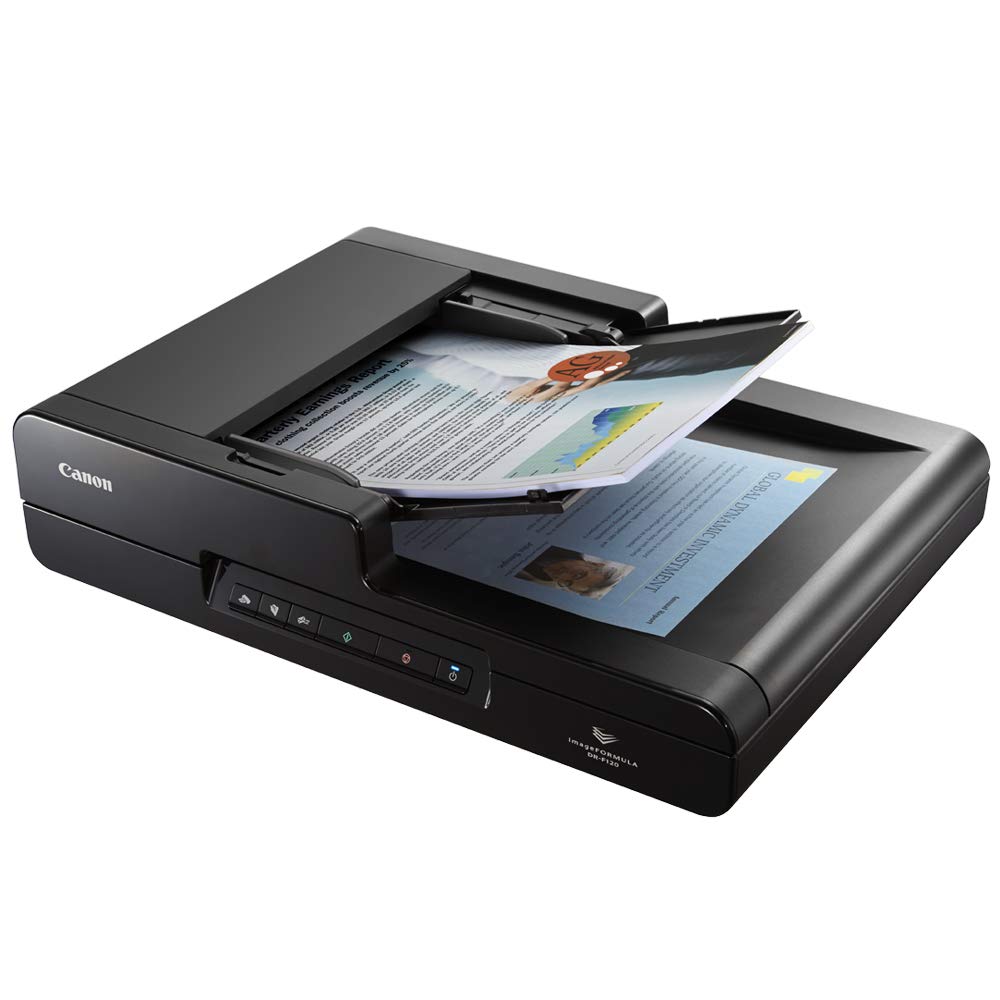

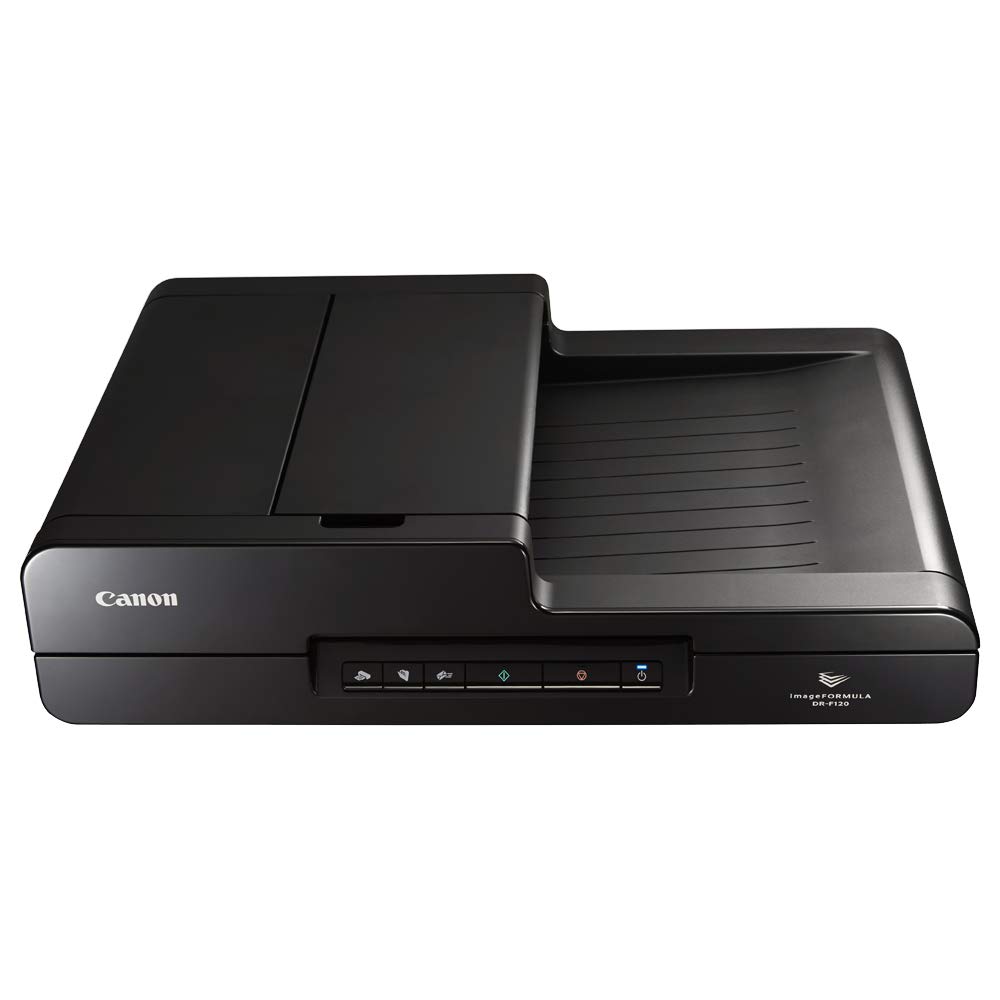

Document Scanner imageFORMULA DR-F120

A powerful scanning solution in a stylish package.

The Canon DR-F120 is your one-stop scanning solution. With numerous helpful features such as auto detect and skip blank pages, you will find that scanning has become much easier.

  • 50-sheets capacity ADF and Flatbed
  • 20 ppm / 36 ipm
  • Suggested daily volume of 800 scans a day

RSP : RM2,742.00 / unit.
FREE : 1 year in-house warranty.

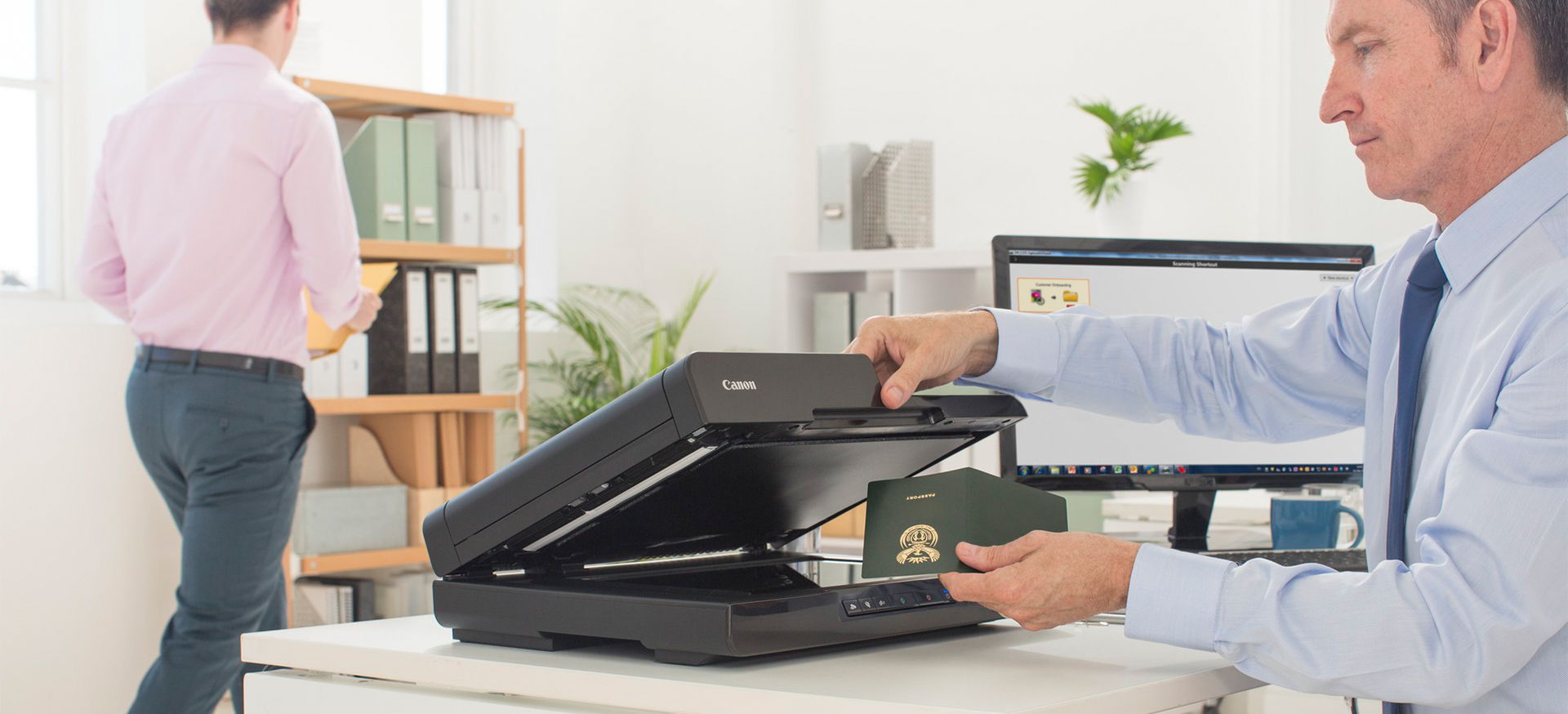

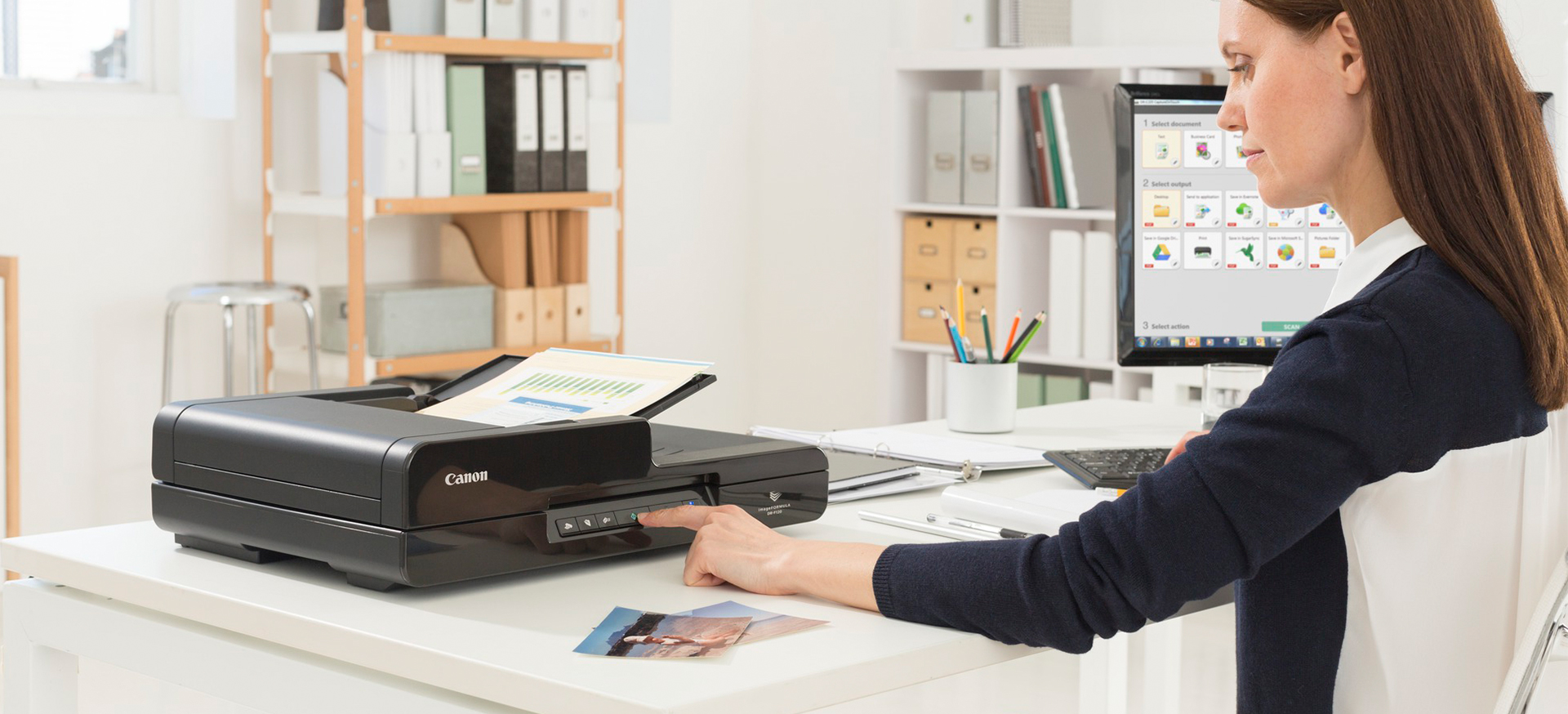

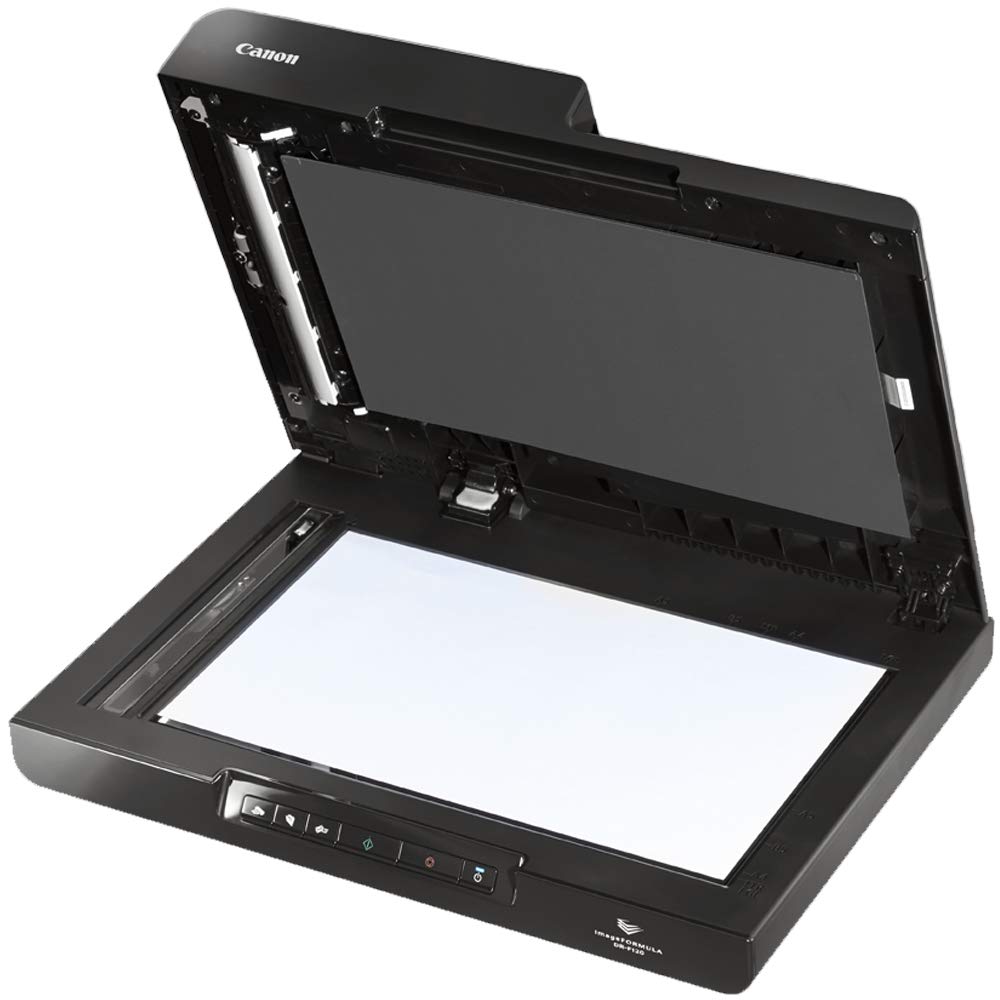

Versatile 2-way scanning

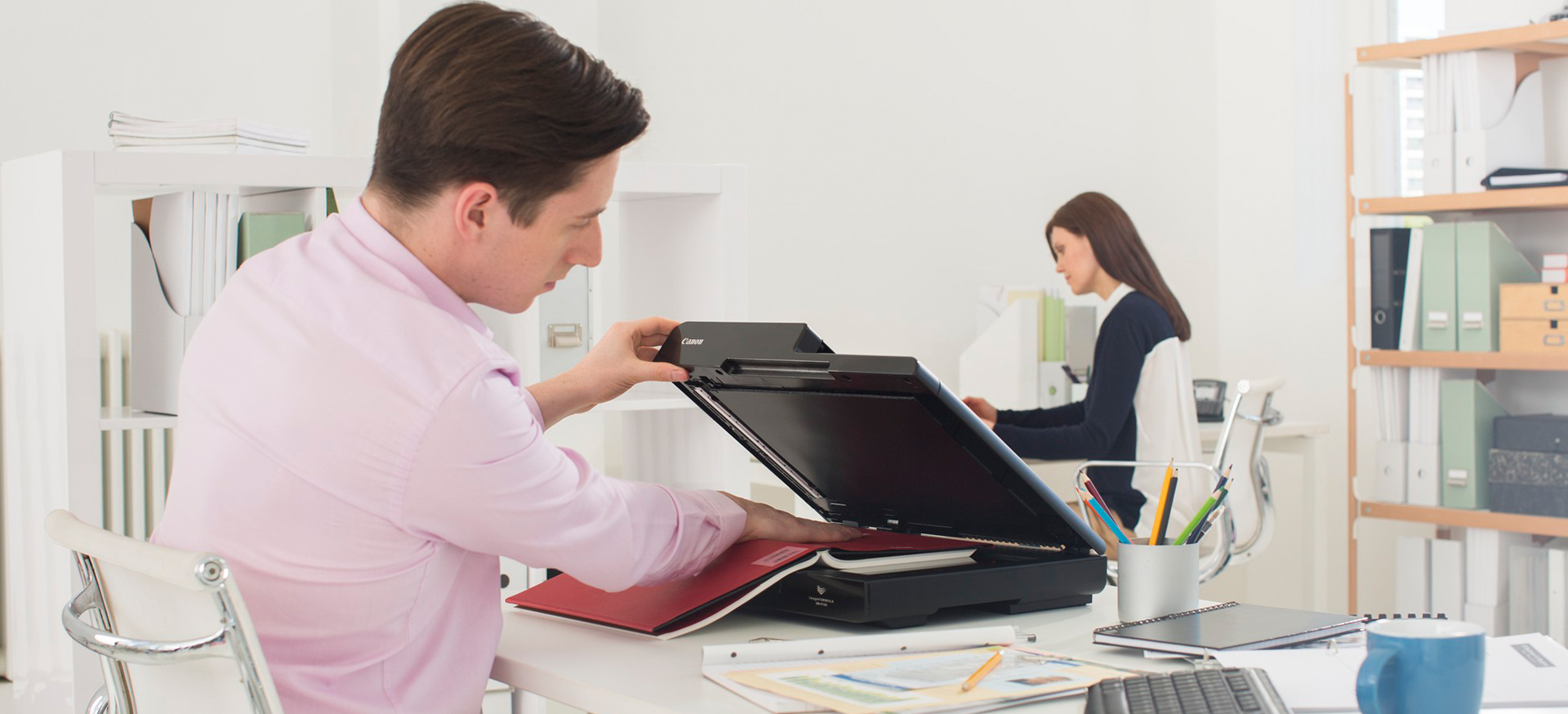

Various document types such as folded, old and damaged documents, and books can be processed by using flatbed. DR-F120 is able to process different types of document at once by both ADF and flatbed, the efficiency of your work will be greatly improved.

Superb image processing

Perfect your scans with intelligent image processing functions. Common errors such as skewed, misaligned or upside-down documents and blank pages are easily corrected. The DR-F120 also offers advanced text enhancement features for pencil-written and other light text even on patterned backgrounds, to significantly improve legibility in your scanned documents.

Simple, user-friendly operation

Achieve superb results with just a single touch of a button using the Full Auto Mode that automatically applies the best settings for each scanned image. Frequent tasks can be made even simpler by assigning them to 3 job buttons on the scanner panel.

CANON Document Scanner imageFORMULA DR-F120 Specifications
Bundled SoftwareISIS/TWAIN Driver, CaptureOnTouch
Dimensions (W x D x H) Paper guide closed: 469 × 335 × 120 mm (Without ADF cable)
Ejection pockets
Interface Hi-Speed USB 2.0
On-Board Jogger
Operating Environment Temperature 10°C to 32.5°C
Humidity 20% to 80% RH
Supported Operating System Windows
Options / Consumables Exchange Roller Kit
PowerAC100 – 240 V
Power Consumption Scanning: 33 W,
Sleep mode: 3.7 W
Power Turned OFF: less than 0.5 W
WeightApprox. 4.6 kg
Scanning Document
Feeding Method Automatic / flatbed
Document thickness – Plain Paper Weight: 35 – 128 g/m2
Thickness: 0.05 – 0.15 mm
Document thickness – Postcard Weight: 128 – 209.5g/m2
Thickness: 0.15 – 0.25 mm
Document thickness – Business Card Weight: 128 – 209.5 g/m2
Thickness: 0.15 – 0.25 mm
Document thickness – Card (ISO/IEC compliant) 0.76 mm or less
Document thickness – Passport
Feeding Capacity 50 sheets (ADF)
Document size – Plain Paper (A4/LTR) ADF — Width: 51 – 216 mm, Length: 89 – 356 mm
Flatbed — Width: 216 mm, Length: 356 mm
Document size – Long Document Mode Up to 1,000 mm
Document size – Postcard Width: 88.9 – 108 mm,
Length: 127 – 152.4 mm
(with flatbed)
Document size – Business card Width: 51-55 mm,
Length: 85 – 91 mm
Document size – Card (ISO/IEC compliant) Width: 86 mm,
Length: 54 mm
(with flatbed, and embossed card can be scanned)
Document size – Passport
Document size – Plastic card
Document size – Magnetic card
Light source LED (red, green and blue)
Maximum Resolution 2,400 dpi
Scan Resolution 100 x100dpi / 150 x 150dpi / 200 x 200dpi / 240 x 240dpi / 300 x 300dpi / 400 x 400dpi / 600 x 600dpi / 1200 x 1200dpi / 2400 x2400dpi
Scanner Element CIS
Scanner Type Desktop ADF (Automatic Document Feeder) / flatbed scanner
Scanning Modes Black and white, Error diffusion, Advanced Text Enhancement, Advanced Text Enhancement II, 256-level gray, 24-bit color
Scanning Side Simplex / Duplex
Scanning speed A4 / LTR, Portrait, 200dpi:
Black and White: 20ppm (simplex) / 36ipm (duplex)
Grayscale: 20ppm (simplex) / 36ipm (duplex)
Colour: 10ppm (simplex) / 18ipm (duplex)
Suggested Daily Volume (Scans) 800

 Product Catalogue PDF file : CANON Document Scanner imageFORMULA DR-F120 1.96MB

(You need to install Acrobat Reader to open the PDF files.)
