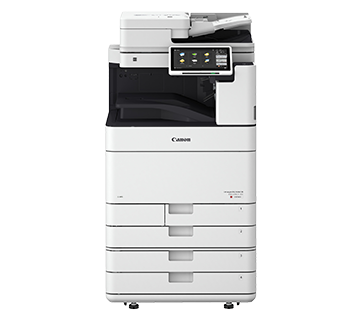

Canon Medium Duty Colour Multi-Function Copier - iR ADV DX C5750i
Excellent scan speed with Vivid and Vibrant colour output
The imageRUNNER ADVANCE DX C5750i meets the needs of today’s offices with superb colour output and high speed scanning. With efficient digitisation, this device is an outstanding option for supporting businesses through their digital transformation journey.
- 50ppm (Print) / up to 270ipm (Scan)
- Print, Copy, Scan, Send and Store.
- 10.1-inch Colour Touch Panel
- Print Resolution 1,200 x 1,200 dpi
- Single-Pass DADF as Standard
RSP : RM40,407.00 / unit.
FREE : 1 year on-site warranty.
RENTAL : RM1,050.00 / month.
FEATURES
• Intuitive touchscreen provides users with smartphone-like usability, making navigation a breeze.
• Industry leading Single-Pass document feeder allows up to 270 ipm scanning, supports paper skew prevention and comes with advanced anti-dust/streak measures.
• My ADVANCE enables a unique, personal experience tailored to meet each user’s workflow needs. Settings, such as display language, initial log-in screen, and accessibility options, can be synchronised across multiple devices for consistency.
• Canon’s MEAP platform provides process optimisation, by integrating with a range of powerful document, capture and output management solutions.
• Scalable support for mobile where users can connect directly to the device with Direct Access Point. Capture, scan or print documents easily with the Canon Print Business app.
• Intelligent features, such as motion sensor technology to wake the device from sleep mode and the ability to remove blank pages when scanning, help maximise productivity.
• Various finishing functions such as Staple-on-Demand, ECO-Staple, saddle stitch, double/corner stapling and foldings are available as an option.

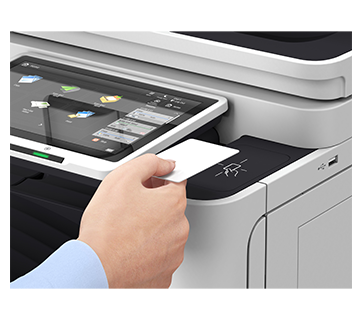

• Control who has access to the device with different authentication methods such as picture login, department ID, user authentication and card access.
• Ensure information privacy and security across your network with IPsec, port filtering capabilities, and SSL technology.
• Enhance document confidentiality with encrypted secure print, secure print, secure watermark, encrypted PDF and device signature PDF.
• System verification at startup and McAfee® Embedded Control ensures device security, protecting against malware and tampering of firmware.
• Integrate with third-party solutions for complete monitoring protection.
• V2 (Vivid & Vibrant) imaging technology ensures high quality printouts that impress time after time.
• Supreme transferability of toner and stable reproduction of colours onto a wide range of media, even at large volumes.
• State-of-the-art imaging technologies and toner allow for consistently striking images with 1,200 dpi print resolution.
• Canon’s device management tools give you a centralised point of control across your entire fleet, upgrade devices remotely, check device and consumables status and capture meter readings.
• Remote diagnostics allow timely, accurate and effective resolution.
• Standard PCL and optional Adobe PostScript®3™ print driver allows seamless integration with enterprise applications.
• Intuitive user maintenance videos and status notifications available to help achieve maximum uptime and keep
supplies replenished.
• The ability to apply print policies, monitor output, and restrict usage by user helps reduce unnecessary printing, resulting in lower total document cost.
• Seamless integration with output management solutions, such as uniFLOW or uniFLOW Online Express for detailed tracking, reporting and cost analysis.
• Quality and reliability, combined with remote diagnostics and assistance, can help reduce costs by minimising downtime and time spent by IT.
• Consistent user operation combined with remote and centralised fleet management can help simplify IT management of devices and entire fleets.
• Fusing technologies and innovative sleep mode features help lower overall energy consumption.
• Minimise paper wastage by holding jobs at the device with Force Hold Print. Choose to preview your print jobs or even change print settings at the device to achieve the desired results at the first time of printing.
• Consumes as little as 0.8W in sleep mode.
Canon Colour Multi-Function Copier – iR ADV DX C5735i / DX C5740i / DX C5750i / DX C5760i Specifications | |
---|---|
Main Unit | |
Machine Type | A3 Colour Laser Multifunctional |
Core Functions | Print, Copy, Scan, Send, Store and Optional Fax |
Processor | Canon Dual Customer Processor (Shared) |
Control Panel | 10.1″ TFT LCD WSVGA Color Touch panel |
Memory | Standard: 4.0GB RAM |
Hard Disk Drive | Standard*1: 320GB (available disk space: 250GB), Optional: 250GB, 1TB |
Mirroring Hard Disk Drive | Optional |
Interface Connection | NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n); Optional: NFC, Bluetooth Low Energy OTHERS Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1; Optional: Serial Interface, Copy Control Interface |
Paper Supply Capacity (A4, 80 gsm) | Standard: 1,200 sheets 100-sheet multi-purpose tray x 1, 550-sheet Paper Cassette x 2 Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-A1 + Paper Deck Unit-F1) |
Paper Output Capacity (A4, 80 gsm) | Standard: 250 sheets Maximum: 3,450 Sheets (with Staple Finisher-Y1 or Booklet Finisher-Y1 and Copy Tray-J2)) |
Finishing Capabilities | Standard: Collate, Group With Options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand |
Supported Media Types | Multi-purpose tray: Thin, Plain, Recycled, Color, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope Paper Cassette (Upper/Lower): Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*2 |
Supported Media Sizes | Multi-purpose tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.0 x 139.7 mm to 320.0 x 457.2 mm Free Size: 98.0 x 139.7 mm to 320.0 x 457.2 mm Envelopes: COM 10 No.10, Monarch, DL, ISO-C5 Envelope custom size: 98.0 x 98.4 mm to 320.0 x 457.2 mm Upper Cassette : Standard size: A4, A5, A5R, A6R, B5 Custom Size: 98.0 x 148.0 mm to 297.0 x 215.9 mm Envelopes: COM10 No.10, DL, ISO-C5 Lower Cassette: Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.0 x 182.0 mm to 304.8 x 457.2 mm Envelopes: COM10 No.10, Monarch, DL, ISO-C5 |
Supported Media Weights | Multi-purpose tray: 52 to 300 gsm Paper Cassette (Upper/Lower): 52 to 256 gsm Duplex: 52 to 220 gsm |
Warm-up Time | Quick Startup Mode: 4 Seconds or less*3 From Sleep Mode: 10 Seconds or Less From Power On: 10 Seconds or less*4 |
Dimensions (W x D x H) | 620 x 722 x 937 mm |
Installation Space (W x D) | Basic: 1,083 x 1,162 mm (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open) Fully Configured: 1,866 x 1,162 mm (Booklet Finisher-Y1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open) |
Weight | Approx. 142 kg including toner |
Print Speed (BW and CL) | iR-ADV DX C5760i up to 60 ppm (A4, A5, A5R, A6R), up to 32 ppm (A3), up to 36 ppm (A4R) iR-ADV DX C5750i up to 50 ppm (A4, A5, A5R, A6R), up to 27 ppm (A3), up to 30 ppm (A4R) iR-ADV DX C5740i up to 40 ppm (A4, A5, A5R, A6R), up to 22 ppm (A3), up to 24 ppm (A4R) iR-ADV DX C5735i up to 35 ppm (A4, A5, A5R, A6R), up to 18 ppm (A3), up to 23 ppm (A4R) |
Print Resolution (dpi) | 1,200 x 1,200 |
Page Description Languages | Standard: UFR II, PCL6 Optional: Adobe® PostScript®3™ |
Direct Print | Supported file types: PDF, EPS, TIFF/JPEG, and XPS |
Printing from Mobile and Cloud | AirPrint, Mopria, Google Cloud Print, Canon Business PRINT, and uniFLOW Online |
Fonts | PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*5 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*6 |
Print Features | Secured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced Hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer |
Operating System | UFRII: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X(10.10 or later) PCL: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019 PS: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later) PPD: Windows® 7 / 8.1 / 10, Mac OS X (10.9 or later) As of Feb. 2020 |
Copy | |
Copy Speed (BW and CL) | iR-ADV DX C5760i up to 60 ppm (A4, A5, A5R, A6R), up to 32 ppm (A3), up to 36 ppm (A4R) iR-ADV DX C5750i up to 50 ppm (A4, A5, A5R, A6R), up to 27 ppm (A3), up to 30 ppm (A4R) iR-ADV DX C5740i up to 40 ppm (A4, A5, A5R, A6R), up to 22 ppm (A3), up to 24 ppm (A4R) iR-ADV DX C5735i up to 35 ppm (A4, A5, A5R, A6R), up to 18 ppm (A3), up to 23 ppm (A4R) |
First-Copy-Out Time (A4, BW/CL) | iR-ADV DX C5760i: Approx. 2.9/4.5 seconds or less iR-ADV DX C5750i: Approx. 3.5/5.2 seconds or less iR-ADV DX C5740i: Approx. 4.1/6.1 seconds or less iR-ADV C5735i: Approx. 4.9/7.4 seconds or less |
Copy Resolution (dpi) | 600 x 600 |
Multiple Copies | Up to 999 copies |
Copy Density | Automatic or Manual (9 Levels) |
Magnification | Variable zoom: 25% to 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400% |
Copy Features | Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Mirror Image, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample |
Scan | |
Type | Single-pass Duplexing Automatic Document Feeder*7 [2-sided to 2-sided (Automatic)] |
Document Feeder Paper Capacity (80 gsm) | Up to 200 Sheets |
Acceptable Originals and Weights | Platen: Sheet, Book, and 3-Dimensional Objects Document Feeder media weight: 1-sided scanning: 38 to 220 gsm (BW, CL) 2-sided scanning: 38 to 220 gsm (BW, CL) An acceptable weights of A6R or smaller is 50 to 220gsm. |
Supported Media Sizes | Platen scanning size: up to 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm |
Scan Speed (ipm: BW/CL, A4) | 1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy), 2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy) |
Scan Resolution (dpi) | Scan for Copy: 600 x 600 Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600 Scan for Fax: 600 x 600 |
Pull Scan Specifications | Color Network ScanGear2. For both TWAIN and WIA Supported OS: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 /Server 2016 As of Feb. 2020 |
Scan Method | Push Scan, Pull Scan, Scan to Box, Scan to Advanced Box, Scan to Network, Scan to USB Memory Key, Scan to Mobile devices, Scan to cloud(uniFLOW Online) |
Send | |
Destination | Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box Optional: Super G3 FAX, IP Fax |
Address Book | LDAP (2,000)/Local (1,600)/Speed dial (200) |
Send Resolution (dpi) | Push: up to 600 x 600 Pull: up to 600 x 600 |
Communication Protocol | File: FTP(TCP/IP), SMB3.0 (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3 |
File Format | Standard: TIFF, JPEG, PDF (Limited Color, Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
Universal Send Features | Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages |
Fax | |
Maximum Number of Connection Lines | 4 |
Modem Speed | Super G3: 33.6 kbps G3: 14.4 kbps |
Compression Method | MH, MR, MMR, JBIG |
Resolution (dpi) | 400×400 (Ultra Fine), 200×400 (Super Fine), 200×200 (Fine), 200×100 (Normal) |
Sending/Receiving Size | Sending: A3, A4, A4R, A5*9, A5R*9, B4, B5*10, B5R*9 Receiving: A3, B4, A4, A4R, A5R, B5, B5R |
FAX Memory | Up to 30,000 pages (2,000 jobs) |
Speed Dials | Max. 200 |
Group Dials / Destinations | Max. 199 dials |
Sequential Broadcast | Max. 256 addresses |
Memory Backup | Yes |
Fax Features | Sender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log |
Store | |
Mail Box (Number supported) | 100 User Inboxes 1 Memory RX Inbox 50 Confidential Fax Inboxes Maximum 10,000 Pages (2,000 jobs) Stored |
Advanced Box | Communication Protocol: SMB or WebDAV Supported Client PC: Windows® 8.1/10 Concurrent Connections (Max.): SMB:64, WebDAV:3 |
Advanced Box Available Disc Space | Standard:16 GB (With option: max. 480GB) |
Advanced Box Features | Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore |
Security | |
Authentication and Access Control | User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control) |
Document Security | Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*11), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark) |
Network Security | TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception |
Device Security | Protecting HDD Data (HDD Data Encryption (FIPS140-2 Validated), HDD Data Overwrite Erase, HDD Lock), Standard HDD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection), Optional: IEEE2600.2 (Common Criteria Certification) (available at a later date) |
Device Management and Auditing | Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting |
Environmental | |
Operating Environment | Temperature: 10 to 30 ºC Humidity: 20 to 80 % RH (Relative Humidity) |
Power Source | 220-240V, 50/60Hz, 6A |
Power Consumption | Maximum: Approx. 1,800W Standby: Approx. 62.4W*12 Sleep mode: Approx. 0.8W*13 |
Consumables | |
Toner Cartridges | NPG-71 Toner BK/C/M/Y NPG-71L Toner C/M/Y |
Toner (Estimated Yield @ 5% Coverage) | NPG-71 Toner BK 69,000 pages NPG-71 Toner C/M/Y 60,000 pages NPG-71L Toner C/M/Y 26,000 pages |
Software and Printer Management | |
Tracking and reporting | Universal Login Manager (ULM) uniFLOW Online Express |
Remote Management Tools | iW Management Console eMaintenance Content Delivery System |
Scanning Software | Network ScanGear |
Optimisation Tools | Canon Driver Configuration Tool |
Platform | MEAP (Multifunctional Embedded Application Platform) |
Document Publishing | IW DESKTOP |
Fiery Print Controller Specifications | |
Optional/Standard | Optional on all models |
Name | imagePASS-P2 V1.1 (Embedded) |
Print Resolution (dpi) | 1200 x 1200, 600 x 600 |
Page Description Language(s) | Adobe® PostScript®3™, PCL6 |
Memory | 4GB (1 x 4GB) |
Hard Disk Drive | 500 GB SATA |
Processor Speed | Intel Pentium G4400 (3.3GHz) |
System | FS350 |
Fonts | PS: 138 Fonts PCL: 113 Fonts |
Supported Operating Systems | Windows® 7 32 bit*14 and 64 bit / Windows 8.1 32 bit*14 and 64 bit / Windows10 32 bit*14 and 64 bit / Windows Server 2008 R2 64 bit / Windows Server 2012 64 bit*14 / Windows Server 2012 R2 64 bit / Windows Server 2016 64 bit / Windows Server 2019 64 bit / MAC OS (10.11, 10.12, 10.13, 10.14, 10.15) |
Interface | 2 x Ethernet (1000Base-T/100Base-TX/10Base-T), USB3.0 x 2 (Rear), USB2.0 x 4 (Rear) |
Network Protocols | TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP) |
Direct Print | PDF1.7, EPS, TIFF6, JDF1.4/JMF(OP) |
VDP | FreeForm v1, v2.1 |
Fiery Print Controller Standard Features | Fiery Command WorkStation 6 / Paper Catalog / Fiery Spot-On / Fiery Remote Scan |
Fiery Print Controller Options | Fiery Impose / Fiery Compose / Fiery Impose and Compose / Productivity Package Web Activate (Include Fiery JDF) / Fiery Hot Folders & Virtual Printers |
HW Platform | E400 |
Base OS | Debian of Linux |
Power Source | AC100-240V, 50Hz/60Hz, 3.0A (100V) – 1.3A (240V) |
Maximum Power Consumption | 47 W |
Dimensions (W x D x H) | 285 x 93 x 295 mm |
Weight | Fiery unit only (with plate): Approx. 5 kg |
Paper Supply Options | |
Cassette Feeding Unit-AM1 | Paper Capacity: 2 x 550 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.0 x 182.0 mm to 304.8 x 457.2 mm Paper Weight: 52 to 256 gsm Power Source: From the Main Unit Dimensions (W x D x H): 620 x 700 x 251 mm (attached to the main unit) Weight: Approx. 22.5 kg |
High Capacity Cassette Feeding Unit-A1 | Paper Capacity: 2,450 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Pre-punched, Letterhead Paper Size: A4 Paper Weight: 52 to 256 gsm Power Source: From the Main Unit Dimensions (W x D x H): 620 x 700 x 251 mm (attached to the main unit) Weight: Approx. 30.0 kg |
Paper Deck Unit-F1 | Paper Capacity: 2,700 sheets (80 gsm) Paper Type: Thin, Plain, Color, Recycled, Heavy, Pre-punched Bond, Letterhead Paper Size: A4, B5 Paper Weight: 52 to 256 gsm Power Source: From the Main Unit Dimensions (W x D x H): 344 x 630 x 440 mm (attached to the main unit) Weight: Approx. 31 kg |
Output Options*15 | |
Inner 2way Tray-J1 | Tray Capacity (with 80 gsm paper, 1-sided) Upper tray: A4, A5, A5R, A6R, B5: 100 sheets SRA3, A3, A4R, B4, B5R: 50 sheets Lower tray (standard tray): A4, A5, A5R, A6R, B5: 250 sheets SRA3, A3, A4R, B4, B5R: 100 sheets Paper Weight: 52 to 300 gsm Dimensions (W x D x H): 420 x 407 x 76 mm Weight: Approx. 0.7 kg |
Copy Tray-J2 | Capacity (with 80gsm paper, 1-sided): A4, A5, A5R, A6R, B5: 100 sheets SRA3, A3, A4R, B4, B5R: 75 sheets Dimensions (W x D x H): 442 x 373 x 176 mm (attached to the main unit, when the extension tray is extended) Weight: 0.5 kg |

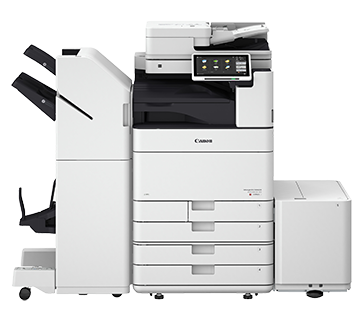

Inner Finisher-H1 | Tray Capacity (with 80gsm paper): Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R : 45 sheets Lower Tray: A4, A5, A5R, B5: 500 sheets, SRA3, A3, A4R, B4, B5R, : 250 sheets, A6R: 30 sheets Envelope: 10 sheets Paper Weight: 52 to 300 gsm Staple Position: Corner, Double Staple Capacity: A4, B5: 50 sheets (52 to 90 gsm) A3, A4R, B4: 30 sheets (52 to 90 gsm) Eco Staple: A3, A4, B4, B5: 5 sheets (52 to 64 gsm) 4 sheets (65 to 81.4 gsm) 3 sheets (82 to 105 gsm) Staple On Demand: 40 sheets (80 gsm) Power supply: From the main unit Dimensions (W x D x H): 585 x 525 x 225 mm (when the extension tray is extended) Weight: Approx. 8.6 kg |
Staple Finisher-Y1 | (Requires Buffer Pass Unit-L1) Tray Capacity (with 80gsm paper): Upper Tray: A4, A5, A5R, A6R, B5: 250 sheets, SRA3, A3, A4R, B4, B5R: 125 sheets Lower Tray: A4, A5, A5R, B5: 3,000 sheets, SRA3, A3, A4R, B4, B5R: 1,500 sheets, A6R: 250 sheets Envelopes: Monarch: 30 sheets, COM10 No.10, DL, ISO-C5: 100 sheets Paper Weight: Upper Tray: 52 to 256 gsm, Lower Tray: 52 to 300 gsm Staple Position: Corner, Double Staple Capacity: A4, B5: 50 sheets (52 to 90 gsm) A3, A4R, B4: 30 sheets (52 to 90 gsm) Eco Staple: A3, A4: 5 sheets (52 to 64 gsm) 4 sheets (65 to 81.4 gsm) 3 sheets (82 to 105 gsm) Staple On Demand: 50 sheets (52 to 90 gsm) Power Source: From the main unit Dimensions (W x D x H): 637 x 623 x 1,142 mm (when the extension tray is extended) Weight: Approx. 31 kg |
Booklet Finisher-Y1 | (Requires Buffer Pass Unit-L1) (Includes the above Staple Finisher-Y1 basic staple specifications.) Saddle Stitch paper size: A3, A4R, B4 Saddle Stitch Staple Capacity: 20 sheets x 10 sets (52 to 81.4 gsm) (including 1 cover sheet 52 to 256 gsm) Non Staple Folded Bunch Capacity: up to 3 sheets (52 to 105 gsm) Power supply: From the main unit Dimensions (W x D x H): 637 x 623 x 1,142 mm (when the extension tray is extended) Weight: Approx. 57 kg |
Inner 2/3 Hole Puncher-B1 | (Requires the Inner Finisher-H1) Two or Three Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, B4, B5, B5R, Three holes: A3, A4, B4, B5 Power Source: From the finisher |
Inner 2/4 Hole Puncher-B1 | (Requires the Inner Finisher-H1) Two or Four Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, B4, B5, B5R Four holes: A3, A4 Power Source: From the finisher |
2/3 Hole Puncher Unit-A1 | (Requires either the Staple Finisher-Y1 or Booklet Finisher-Y1) Two or Three Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, B4, B5, B5R Three holes A3, A4, B4, B5 Power Source: From the finisher |
2/4 Hole Puncher Unit-A1 | (Requires either the Staple Finisher-Y1 or Booklet Finisher-Y1) Two or Four Holes Acceptable Punch Paper Weight: 52 to 300 gsm Acceptable Punch Paper Size: Two holes: A3, A4, A4R, A5, B4, B5, B5R Four holes: A3, A4 Power Source: From the finisher |
Hardware Accessories | |
Card Readers | Copy Card Reader-F1 Copy Card Reader Attachment-B7 |
Others | Tab Feeding Attachment-F1 Utility Tray-B1 Buffer Pass Unit-L1 Numeric Keypad-A1 |
Security Options | |
Device Security | iR-ADV Security Kit-AK1 for IEEE 2600 Common Criteria Certification (available at later date) |
Data Security | HDD Mirroring Kit-J1 2.5inch/250GB HDD-N1 2.5inch/1TB HDD-P1 |
System and Controller Options | |
Print Accessories | PCL International Font Set-A1 PCL Asian Font Set-A1 PS PRINTER KIT-BE1/CN1 |
Barcode Printing | Barcode Printing Kit-D1 |
EFI-Fiery Based Controller (Embedded) | imagePASS-N2 V1.1 |
EFI-Fiery Based Controller Options (Embedded) | Fiery Impose Fiery Compose Fiery Impose and Compose Productivity Package Web Activate Hot Folders License |
System Accessories | Copy Control Interface Kit-A1 Serial Interface Kit-K3 Connection Kit-A2 for Bluetooth LE NFC Kit-E1 |
FAX Accessories | Super G3 FAX Board-AS1 Super G3 2nd Line Fax Board-AS1 Super G3 3rd/4th Line Fax Board-AS1 Remote Fax Kit-A1 IP FAX Expansion Kit-B1 |
Other Options | |
Accessibility Accessories | ADF Access Handle-A1 Voice Guidance Kit-G1 Voice Operation Kit-D1 |
Staple Cartridge | Staple-P1 Staple Cartridge-Y1 |
*1. A different initial HDD may be used. | |
*2. Envelope Feeder Attachment (standard) is required. | |
*3. Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display. | |
*4. Time from device power-on, until copy ready (not print reservation). | |
*5. Optional PCL International Font Set-A1 is required. | |
*6. Optional Barcode Printing Kit-D1 is required. | |
*7. Detect Feeder Multi Sheet Feed is supported. | |
*8. An acceptable weights of A6R or smaller is 50 to 220gsm. | |
*9. Sent as A4. | |
*10. Sent as B4 short. | |
*11. Requires uniFLOW Online / uniFLOW. | |
*12. Reference value: measured one unit. | |
*13. 0.8 W is not available in all circumstances due to certain settings. | |
*14. Windows 7, 8.1,10 32bit and Server 2012 are supported by printer driver only. | |
*15. Paper capacity may vary with different paper type/size. |
Product Catalogue PDF file : CANON Colour Multi-Function Copier iR ADV DX C5750i 689KB
