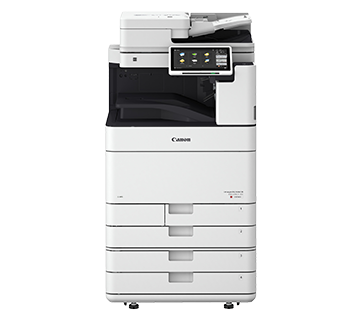

Canon Medium Duty Colour Multi-Function Copier - iR ADV DX C5740i

Excellent scan speed with Vivid and Vibrant colour output

The imageRUNNER ADVANCE DX C5740i meets the needs of today’s offices with superb colour output and high speed scanning. With efficient digitisation, this device is an outstanding option for supporting businesses through their digital transformation journey.

  • 40pm (Print) / up to 270ipm (Scan)
  • Print, Copy, Scan, Send and Store.
  • 10.1-inch Colour Touch Panel
  • Print Resolution 1,200 x 1,200 dpi
  • Single-Pass DADF as Standard

RSP : RM35,029.00 / unit.
FREE : 1 year on-site warranty.

RENTAL : RM915.00 / month.

FEATURES

• Intuitive touchscreen provides users with smartphone-like usability, making navigation a breeze.

• Industry leading Single-Pass document feeder allows up to 270 ipm scanning, supports paper skew prevention and comes with advanced anti-dust/streak measures.

• My ADVANCE enables a unique, personal experience tailored to meet each user’s workflow needs. Settings, such as display language, initial log-in screen, and accessibility options, can be synchronised across multiple devices for consistency.

• Canon’s MEAP platform provides process optimisation, by integrating with a range of powerful document, capture and output management solutions.

• Scalable support for mobile where users can connect directly to the device with Direct Access Point. Capture, scan or print documents easily with the Canon Print Business app.

• Intelligent features, such as motion sensor technology to wake the device from sleep mode and the ability to remove blank pages when scanning, help maximise productivity.

• Various finishing functions such as Staple-on-Demand, ECO-Staple, saddle stitch, double/corner stapling and foldings are available as an option.

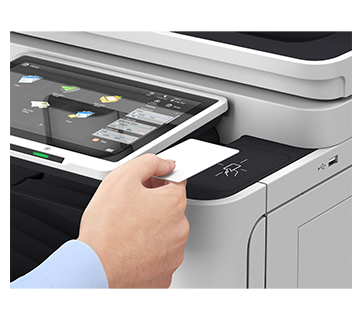

• Control who has access to the device with different authentication methods such as picture login, department ID, user authentication and card access.

• Ensure information privacy and security across your network with IPsec, port filtering capabilities, and SSL technology.

• Enhance document confidentiality with encrypted secure print, secure print, secure watermark, encrypted PDF and device signature PDF.

• System verification at startup and McAfee® Embedded Control ensures device security, protecting against malware and tampering of firmware.

• Integrate with third-party solutions for complete monitoring protection.

• V2 (Vivid & Vibrant) imaging technology ensures high quality printouts that impress time after time.

• Supreme transferability of toner and stable reproduction of colours onto a wide range of media, even at large volumes.

• State-of-the-art imaging technologies and toner allow for consistently striking images with 1,200 dpi print resolution.

• Canon’s device management tools give you a centralised point of control across your entire fleet, upgrade devices remotely, check device and consumables status and capture meter readings.

• Remote diagnostics allow timely, accurate and effective resolution.

• Standard PCL and optional Adobe PostScript®3™ print driver allows seamless integration with enterprise applications.

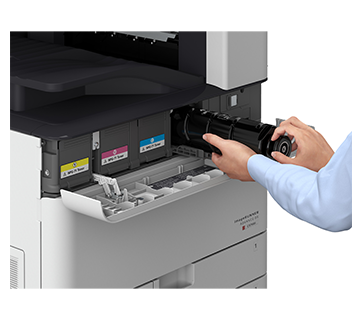

• Intuitive user maintenance videos and status notifications available to help achieve maximum uptime and keep
supplies replenished.

• The ability to apply print policies, monitor output, and restrict usage by user helps reduce unnecessary printing, resulting in lower total document cost.

• Seamless integration with output management solutions, such as uniFLOW or uniFLOW Online Express for detailed tracking, reporting and cost analysis.

• Quality and reliability, combined with remote diagnostics and assistance, can help reduce costs by minimising downtime and time spent by IT.

• Consistent user operation combined with remote and centralised fleet management can help simplify IT management of devices and entire fleets.

• Fusing technologies and innovative sleep mode features help lower overall energy consumption.

• Minimise paper wastage by holding jobs at the device with Force Hold Print. Choose to preview your print jobs or even change print settings at the device to achieve the desired results at the first time of printing.

• Consumes as little as 0.8W in sleep mode.

Canon Colour Multi-Function Copier – iR ADV DX C5735i / DX C5740i / DX C5750i / DX C5760i Specifications
Main Unit
Machine TypeA3 Colour Laser Multifunctional
Core FunctionsPrint, Copy, Scan, Send, Store and Optional Fax
ProcessorCanon Dual Customer Processor (Shared)
Control Panel10.1″ TFT LCD WSVGA Color Touch panel
MemoryStandard: 4.0GB RAM
Hard Disk DriveStandard*1: 320GB (available disk space: 250GB),
Optional: 250GB, 1TB
Mirroring Hard Disk DriveOptional
Interface ConnectionNETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n);
Optional: NFC, Bluetooth Low Energy

OTHERS
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1;
Optional: Serial Interface, Copy Control Interface
Paper Supply Capacity (A4, 80 gsm)Standard: 1,200 sheets
100-sheet multi-purpose tray x 1,
550-sheet Paper Cassette x 2

Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-A1 + Paper Deck Unit-F1)
Paper Output Capacity (A4, 80 gsm)Standard: 250 sheets

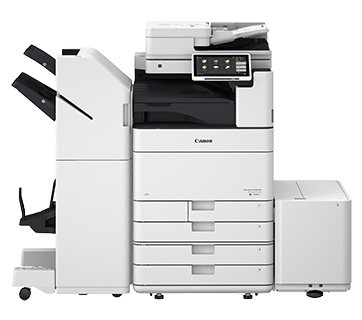

Maximum: 3,450 Sheets (with Staple Finisher-Y1 or Booklet Finisher-Y1 and Copy Tray-J2))
Finishing CapabilitiesStandard: Collate, Group
With Options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand
Supported Media TypesMulti-purpose tray:
Thin, Plain, Recycled, Color, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope

Paper Cassette (Upper/Lower):
Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*2
Supported Media SizesMulti-purpose tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.0 x 139.7 mm to 320.0 x 457.2 mm
Free Size: 98.0 x 139.7 mm to 320.0 x 457.2 mm
Envelopes: COM 10 No.10, Monarch, DL, ISO-C5
Envelope custom size: 98.0 x 98.4 mm to 320.0 x 457.2 mm

Upper Cassette :
Standard size: A4, A5, A5R, A6R, B5
Custom Size: 98.0 x 148.0 mm to 297.0 x 215.9 mm
Envelopes: COM10 No.10, DL, ISO-C5

Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.0 x 182.0 mm to 304.8 x 457.2 mm
Envelopes: COM10 No.10, Monarch, DL, ISO-C5
Supported Media WeightsMulti-purpose tray: 52 to 300 gsm
Paper Cassette (Upper/Lower): 52 to 256 gsm
Duplex: 52 to 220 gsm
Warm-up TimeQuick Startup Mode: 4 Seconds or less*3
From Sleep Mode: 10 Seconds or Less
From Power On: 10 Seconds or less*4
Dimensions (W x D x H)620 x 722 x 937 mm
Installation Space (W x D)Basic: 1,083 x 1,162 mm (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open)
Fully Configured: 1,866 x 1,162 mm (Booklet Finisher-Y1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open)
WeightApprox. 142 kg including toner
Print
Print Speed (BW and CL)iR-ADV DX C5760i
up to 60 ppm (A4, A5, A5R, A6R), up to 32 ppm (A3), up to 36 ppm (A4R)

iR-ADV DX C5750i
up to 50 ppm (A4, A5, A5R, A6R), up to 27 ppm (A3), up to 30 ppm (A4R)

iR-ADV DX C5740i
up to 40 ppm (A4, A5, A5R, A6R), up to 22 ppm (A3), up to 24 ppm (A4R)

iR-ADV DX C5735i
up to 35 ppm (A4, A5, A5R, A6R), up to 18 ppm (A3), up to 23 ppm (A4R)
Print Resolution (dpi)1,200 x 1,200
Page Description LanguagesStandard: UFR II, PCL6
Optional: Adobe® PostScript®3™
Direct PrintSupported file types: PDF, EPS, TIFF/JPEG, and XPS
Printing from Mobile and CloudAirPrint, Mopria, Google Cloud Print, Canon Business PRINT, and uniFLOW Online
FontsPS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*5 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*6
Print FeaturesSecured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced Hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer
Operating SystemUFRII: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X(10.10 or later)

PCL: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019
PS: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later)

PPD: Windows® 7 / 8.1 / 10, Mac OS X (10.9 or later)

As of Feb. 2020
Copy
Copy Speed (BW and CL)iR-ADV DX C5760i
up to 60 ppm (A4, A5, A5R, A6R), up to 32 ppm (A3), up to 36 ppm (A4R)

iR-ADV DX C5750i
up to 50 ppm (A4, A5, A5R, A6R), up to 27 ppm (A3), up to 30 ppm (A4R)

iR-ADV DX C5740i
up to 40 ppm (A4, A5, A5R, A6R), up to 22 ppm (A3), up to 24 ppm (A4R)

iR-ADV DX C5735i
up to 35 ppm (A4, A5, A5R, A6R), up to 18 ppm (A3), up to 23 ppm (A4R)
First-Copy-Out Time (A4, BW/CL)iR-ADV DX C5760i:
Approx. 2.9/4.5 seconds or less

iR-ADV DX C5750i:
Approx. 3.5/5.2 seconds or less

iR-ADV DX C5740i:
Approx. 4.1/6.1 seconds or less

iR-ADV C5735i:
Approx. 4.9/7.4 seconds or less
Copy Resolution (dpi)600 x 600
Multiple CopiesUp to 999 copies
Copy DensityAutomatic or Manual (9 Levels)
MagnificationVariable zoom: 25% to 400% (1% Increments)
Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%
Copy FeaturesPreset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Mirror Image, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample
Scan
TypeSingle-pass Duplexing Automatic Document Feeder*7 [2-sided to 2-sided (Automatic)]
Document Feeder Paper Capacity (80 gsm)Up to 200 Sheets
Acceptable Originals and WeightsPlaten: Sheet, Book, and 3-Dimensional Objects

Document Feeder media weight:
1-sided scanning: 38 to 220 gsm (BW, CL)
2-sided scanning: 38 to 220 gsm (BW, CL)
An acceptable weights of A6R or smaller is 50 to 220gsm.
Supported Media SizesPlaten scanning size: up to 297.0 x 431.8 mm

Document Feeder media size:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R
Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm
Scan Speed (ipm: BW/CL, A4)1-sided Scanning:
135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy),

2-sided Scanning:
270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)
Scan Resolution (dpi)Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600
Pull Scan SpecificationsColor Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 /Server 2016
As of Feb. 2020
Scan MethodPush Scan, Pull Scan, Scan to Box, Scan to Advanced Box, Scan to Network, Scan to USB Memory Key, Scan to Mobile devices, Scan to cloud(uniFLOW Online)
Send
DestinationStandard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box
Optional: Super G3 FAX, IP Fax
Address BookLDAP (2,000)/Local (1,600)/Speed dial (200)
Send Resolution (dpi)Push: up to 600 x 600
Pull: up to 600 x 600
Communication ProtocolFile: FTP(TCP/IP), SMB3.0 (TCP/IP), WebDAV
E-mail/I-Fax: SMTP, POP3
File FormatStandard: TIFF, JPEG, PDF (Limited Color, Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
Universal Send FeaturesOriginal Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages
Fax
Maximum Number of Connection Lines4
Modem SpeedSuper G3: 33.6 kbps
G3: 14.4 kbps
Compression MethodMH, MR, MMR, JBIG
Resolution (dpi)400×400 (Ultra Fine), 200×400 (Super Fine), 200×200 (Fine), 200×100 (Normal)
Sending/Receiving SizeSending: A3, A4, A4R, A5*9, A5R*9, B4, B5*10, B5R*9
Receiving: A3, B4, A4, A4R, A5R, B5, B5R
FAX MemoryUp to 30,000 pages (2,000 jobs)
Speed DialsMax. 200
Group Dials / DestinationsMax. 199 dials
Sequential BroadcastMax. 256 addresses
Memory BackupYes
Fax FeaturesSender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log
Store
Mail Box (Number supported)100 User Inboxes
1 Memory RX Inbox
50 Confidential Fax Inboxes

Maximum 10,000 Pages (2,000 jobs) Stored
Advanced BoxCommunication Protocol: SMB or WebDAV
Supported Client PC: Windows® 8.1/10
Concurrent Connections (Max.): SMB:64, WebDAV:3
Advanced Box Available Disc SpaceStandard:16 GB
(With option: max. 480GB)
Advanced Box FeaturesAuthentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore
Security
Authentication and Access ControlUser Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)
Document SecurityPrint Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*11), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark)
Network SecurityTLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception
Device SecurityProtecting HDD Data (HDD Data Encryption (FIPS140-2 Validated), HDD Data Overwrite Erase, HDD Lock), Standard HDD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection),
Optional: IEEE2600.2 (Common Criteria Certification) (available at a later date)
Device Management and AuditingAdministrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting
Environmental
Operating EnvironmentTemperature: 10 to 30 ºC
Humidity: 20 to 80 % RH (Relative Humidity)
Power Source220-240V, 50/60Hz, 6A
Power ConsumptionMaximum: Approx. 1,800W
Standby: Approx. 62.4W*12
Sleep mode: Approx. 0.8W*13
Consumables
Toner CartridgesNPG-71 Toner BK/C/M/Y
NPG-71L Toner C/M/Y
Toner (Estimated Yield @ 5% Coverage)NPG-71 Toner BK 69,000 pages
NPG-71 Toner C/M/Y 60,000 pages
NPG-71L Toner C/M/Y 26,000 pages
Software and Printer Management
Tracking and reportingUniversal Login Manager (ULM)
uniFLOW Online Express
Remote Management ToolsiW Management Console
eMaintenance
Content Delivery System
Scanning SoftwareNetwork ScanGear
Optimisation ToolsCanon Driver Configuration Tool
PlatformMEAP (Multifunctional Embedded Application Platform)
Document PublishingIW DESKTOP
Fiery Print Controller Specifications
Optional/StandardOptional on all models
NameimagePASS-P2 V1.1 (Embedded)
Print Resolution (dpi)1200 x 1200, 600 x 600
Page Description Language(s)Adobe® PostScript®3™, PCL6
Memory4GB (1 x 4GB)
Hard Disk Drive500 GB SATA
Processor SpeedIntel Pentium G4400 (3.3GHz)
SystemFS350
FontsPS: 138 Fonts
PCL: 113 Fonts
Supported Operating SystemsWindows® 7 32 bit*14 and 64 bit / Windows 8.1 32 bit*14 and 64 bit / Windows10 32 bit*14 and 64 bit / Windows Server 2008 R2 64 bit / Windows Server 2012 64 bit*14 / Windows Server 2012 R2 64 bit / Windows Server 2016 64 bit / Windows Server 2019 64 bit / MAC OS (10.11, 10.12, 10.13, 10.14, 10.15)
Interface2 x Ethernet (1000Base-T/100Base-TX/10Base-T), USB3.0 x 2 (Rear), USB2.0 x 4 (Rear)
Network ProtocolsTCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP)
Direct PrintPDF1.7, EPS, TIFF6, JDF1.4/JMF(OP)
VDPFreeForm v1, v2.1
Fiery Print Controller Standard FeaturesFiery Command WorkStation 6 / Paper Catalog / Fiery Spot-On / Fiery Remote Scan
Fiery Print Controller OptionsFiery Impose / Fiery Compose / Fiery Impose and Compose / Productivity Package Web Activate (Include Fiery JDF) / Fiery Hot Folders & Virtual Printers
HW PlatformE400
Base OSDebian of Linux
Power SourceAC100-240V, 50Hz/60Hz, 3.0A (100V) – 1.3A (240V)
Maximum Power Consumption47 W
Dimensions (W x D x H)285 x 93 x 295 mm
WeightFiery unit only (with plate): Approx. 5 kg
Paper Supply Options
Cassette Feeding Unit-AM1Paper Capacity: 2 x 550 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead
Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.0 x 182.0 mm to 304.8 x 457.2 mm
Paper Weight: 52 to 256 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 620 x 700 x 251 mm (attached to the main unit)
Weight: Approx. 22.5 kg
High Capacity Cassette Feeding Unit-A1Paper Capacity: 2,450 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Pre-punched, Letterhead
Paper Size: A4
Paper Weight: 52 to 256 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 620 x 700 x 251 mm (attached to the main unit)
Weight: Approx. 30.0 kg
Paper Deck Unit-F1Paper Capacity: 2,700 sheets (80 gsm)
Paper Type: Thin, Plain, Color, Recycled, Heavy, Pre-punched Bond, Letterhead
Paper Size: A4, B5
Paper Weight: 52 to 256 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 344 x 630 x 440 mm (attached to the main unit)
Weight: Approx. 31 kg
Output Options*15
Inner 2way Tray-J1Tray Capacity (with 80 gsm paper, 1-sided)
Upper tray: A4, A5, A5R, A6R, B5: 100 sheets
SRA3, A3, A4R, B4, B5R: 50 sheets
Lower tray (standard tray): A4, A5, A5R, A6R, B5: 250 sheets
SRA3, A3, A4R, B4, B5R: 100 sheets
Paper Weight: 52 to 300 gsm
Dimensions (W x D x H): 420 x 407 x 76 mm
Weight: Approx. 0.7 kg
Copy Tray-J2Capacity (with 80gsm paper, 1-sided):
A4, A5, A5R, A6R, B5: 100 sheets
SRA3, A3, A4R, B4, B5R: 75 sheets
Dimensions (W x D x H): 442 x 373 x 176 mm (attached to the main unit, when the extension tray is extended)
Weight: 0.5 kg
Inner Finisher-H1Tray Capacity (with 80gsm paper):
Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R : 45 sheets
Lower Tray: A4, A5, A5R, B5: 500 sheets,
SRA3, A3, A4R, B4, B5R, : 250 sheets,
A6R: 30 sheets
Envelope: 10 sheets
Paper Weight: 52 to 300 gsm
Staple Position: Corner, Double
Staple Capacity:
A4, B5: 50 sheets (52 to 90 gsm)
A3, A4R, B4: 30 sheets (52 to 90 gsm)
Eco Staple:
A3, A4, B4, B5:
5 sheets (52 to 64 gsm)
4 sheets (65 to 81.4 gsm)
3 sheets (82 to 105 gsm)
Staple On Demand: 40 sheets (80 gsm)
Power supply: From the main unit
Dimensions (W x D x H): 585 x 525 x 225 mm (when the extension tray is extended)
Weight: Approx. 8.6 kg
Staple Finisher-Y1(Requires Buffer Pass Unit-L1)
Tray Capacity (with 80gsm paper):
Upper Tray:
A4, A5, A5R, A6R, B5: 250 sheets,
SRA3, A3, A4R, B4, B5R: 125 sheets
Lower Tray:
A4, A5, A5R, B5: 3,000 sheets, SRA3, A3, A4R, B4, B5R: 1,500 sheets, A6R: 250 sheets
Envelopes: Monarch: 30 sheets, COM10 No.10, DL, ISO-C5: 100 sheets
Paper Weight:
Upper Tray: 52 to 256 gsm,
Lower Tray: 52 to 300 gsm
Staple Position: Corner, Double
Staple Capacity:
A4, B5: 50 sheets (52 to 90 gsm)
A3, A4R, B4: 30 sheets (52 to 90 gsm)
Eco Staple:
A3, A4:
5 sheets (52 to 64 gsm)
4 sheets (65 to 81.4 gsm)
3 sheets (82 to 105 gsm)
Staple On Demand: 50 sheets (52 to 90 gsm)
Power Source: From the main unit
Dimensions (W x D x H): 637 x 623 x 1,142 mm (when the extension tray is extended)
Weight: Approx. 31 kg
Booklet Finisher-Y1(Requires Buffer Pass Unit-L1)
(Includes the above Staple Finisher-Y1 basic staple specifications.)
Saddle Stitch paper size: A3, A4R, B4
Saddle Stitch Staple Capacity: 20 sheets x 10 sets (52 to 81.4 gsm) (including 1 cover sheet 52 to 256 gsm)
Non Staple Folded Bunch Capacity: up to 3 sheets (52 to 105 gsm)
Power supply: From the main unit
Dimensions (W x D x H): 637 x 623 x 1,142 mm (when the extension tray is extended)
Weight: Approx. 57 kg
Inner 2/3 Hole Puncher-B1(Requires the Inner Finisher-H1)
Two or Three Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R,
Three holes: A3, A4, B4, B5
Power Source: From the finisher
Inner 2/4 Hole Puncher-B1(Requires the Inner Finisher-H1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R
Four holes: A3, A4
Power Source: From the finisher
2/3 Hole Puncher Unit-A1(Requires either the Staple Finisher-Y1 or Booklet Finisher-Y1)
Two or Three Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R
Three holes A3, A4, B4, B5
Power Source: From the finisher
2/4 Hole Puncher Unit-A1(Requires either the Staple Finisher-Y1 or Booklet Finisher-Y1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes: A3, A4, A4R, A5, B4, B5, B5R
Four holes: A3, A4
Power Source: From the finisher
Hardware Accessories
Card ReadersCopy Card Reader-F1
Copy Card Reader Attachment-B7
OthersTab Feeding Attachment-F1
Utility Tray-B1
Buffer Pass Unit-L1
Numeric Keypad-A1
Security Options
Device SecurityiR-ADV Security Kit-AK1 for IEEE 2600 Common Criteria Certification (available at later date)
Data SecurityHDD Mirroring Kit-J1
2.5inch/250GB HDD-N1
2.5inch/1TB HDD-P1
System and Controller Options
Print AccessoriesPCL International Font Set-A1
PCL Asian Font Set-A1
PS PRINTER KIT-BE1/CN1
Barcode PrintingBarcode Printing Kit-D1
EFI-Fiery Based Controller (Embedded)imagePASS-N2 V1.1
EFI-Fiery Based Controller Options (Embedded)Fiery Impose
Fiery Compose
Fiery Impose and Compose
Productivity Package Web Activate
Hot Folders License
System AccessoriesCopy Control Interface Kit-A1
Serial Interface Kit-K3
Connection Kit-A2 for Bluetooth LE
NFC Kit-E1
FAX AccessoriesSuper G3 FAX Board-AS1
Super G3 2nd Line Fax Board-AS1
Super G3 3rd/4th Line Fax Board-AS1
Remote Fax Kit-A1
IP FAX Expansion Kit-B1
Other Options
Accessibility AccessoriesADF Access Handle-A1
Voice Guidance Kit-G1
Voice Operation Kit-D1
Staple CartridgeStaple-P1
Staple Cartridge-Y1
*1. A different initial HDD may be used.
*2. Envelope Feeder Attachment (standard) is required.
*3. Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.
*4. Time from device power-on, until copy ready (not print reservation).
*5. Optional PCL International Font Set-A1 is required.
*6. Optional Barcode Printing Kit-D1 is required.
*7. Detect Feeder Multi Sheet Feed is supported.
*8. An acceptable weights of A6R or smaller is 50 to 220gsm.
*9. Sent as A4.
*10. Sent as B4 short.
*11. Requires uniFLOW Online / uniFLOW.
*12. Reference value: measured one unit.
*13. 0.8 W is not available in all circumstances due to certain settings.
*14. Windows 7, 8.1,10 32bit and Server 2012 are supported by printer driver only.
*15. Paper capacity may vary with different paper type/size.

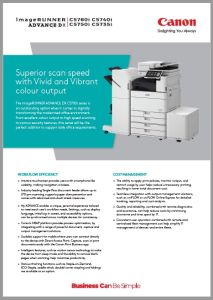

Product Catalogue PDF file : CANON Colour Multi-Function Copier iR ADV DX C5740i 689KB

(You need to install Acrobat Reader to open the PDF files.)
