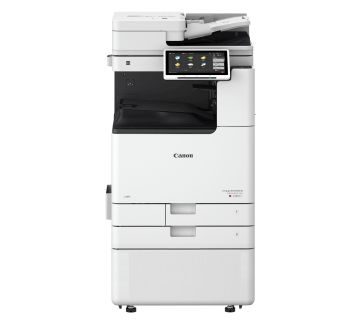

Canon Light Heavy Duty Colour Multi-Function Copier - iR ADV DX C3835i

Vivid and Vibrant colour output with excellent productivity

The imageRUNNER ADVANCE DX C3835i delivers quality colour output and high productivity while keeping power consumption low. With efficient scanning and seamless connectivity to various cloud destinations, the series facilitates collaboration and supports new ways of working.

  • 35ppm
  • Print, Copy, Scan, Send and Store.
  • 10.1-inch Colour Touch Panel
  • Network, Wi-Fi, USB 3.0 connectivity

RSP : RM22,834.00 / unit.
FREE : 1 year on-site warranty.

RENTAL : RM599.00 / month.

FEATURES

• Intuitive touchscreen provides users with smartphone-like usability, making navigation a breeze.

• Industry leading Single-Pass document feeder option allows up to 270 ipm scanning, supports paper skew prevention and comes with advanced anti-dust/streak measures.

• My ADVANCE enables a unique, personal experience tailored to meet each user’s workflow needs. Settings, such as display language, initial log-in screen, and accessibility options, can be synchronised across multiple devices for consistency.

• Canon’s MEAP platform provides process optimisation, by integrating with a range of powerful document, capture and output management solutions.

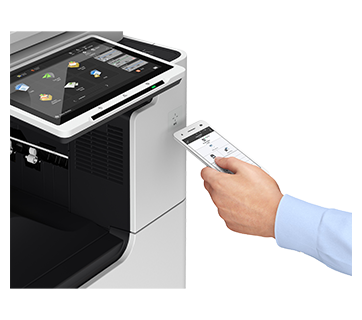

• Scalable support for mobile where users can connect directly to the device with Direct Access Point. Capture, scan or print documents easily with the Canon Print Business app.

• Intelligent Recovery wakes device from sleep mode when user is approaching device via motion sensor technology.

• Various finishing functions such as Staple-on-Demand, ECO-Staple, saddle stitch, double/corner stapling and foldings are available as an option.

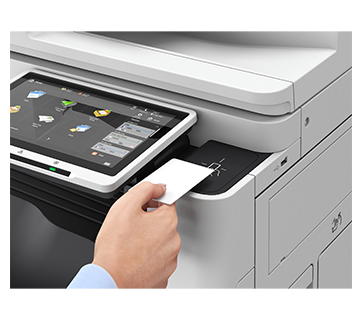

• Control who has access to the device with different authentication methods such as picture login, department ID, user authentication and card access.

• Ensure information privacy and security across your network with IPsec, port filtering capabilities, and SSL technology.

• Enhance document confidentiality with encrypted secure print, secure print, secure watermark, encrypted PDF and device signature PDF.

• System verification at startup and McAfee® Embedded Control ensures device security, protecting against malware and tampering of firmware.

• Integrate with third-party solutions for complete monitoring protection.

• V2 (Vivid & Vibrant) imaging technology ensures high quality printouts that impress time after time.

• Supreme transferability of toner and stable reproduction of colours onto a wide range of media, even at large volumes.

• State-of-the-art imaging technologies and toner allow for consistently striking images with 1,200 dpi print resolution.

• Canon’s device management tools give you a centralised point of control across your entire fleet, upgrade devices remotely, check device and consumables status and capture meter readings.

• Standard PCL and optional Adobe PostScript®3™ print driver allows seamless integration with enterprise applications.

• Remote diagnostics allow timely, accurate and effective resolution.

• Intuitive user maintenance videos and status notifications available to help achieve maximum uptime and keep supplies replenished.

• The ability to apply print policies, monitor output, and restrict usage by user helps reduce unnecessary printing, resulting in lower total document cost.

• Seamless integration with output management solutions, such as uniFLOW or uniFLOW Online Express for detailed tracking, reporting and cost analysis.

• Quality and reliability, combined with remote diagnostics and assistance, can help reduce costs by minimising downtime and time spent by IT.

• Consistent user operation combined with remote and centralised fleet management can help simplify IT management of devices and entire fleets.

• Fusing technologies and innovative sleep mode features help lower overall energy consumption.

• Minimise paper wastage by holding jobs at the device with Force Hold Print. Choose to preview your print jobs or even change print settings at the device to achieve the desired results at the first time of printing.

• Consumes as little as 0.8W in sleep mode.

Canon Colour Multi-Function Copier – iR ADV DX C3822i / C3826i / C3830i / C3835i Specifications
Main Unit
Machine TypeA3 Colour Laser Multifunctional
Core FunctionPrint, Copy, Scan, Send, Store and Optional Fax
ProcessorCanon Dual Custom Processor (Shared)
Control Panel10.1″ TFT LCD WSVGA Colour Touch Panel
MemoryStandard: Main CPU: 2 GB
Image Processing CPU: 1 GB + 0.5 GB*1
StorageStandard: (SSD) 256 GB
Optional: (SSD) 1 TB
Interface ConnectionNETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth Low Energy

OTHERS
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1
Optional: Serial Interface, Copy Control Interface
Paper Supply Capacity (A4, 80 gsm)Standard: 1,200 sheets
100-sheet Multi-purpose tray
550-sheet Paper cassette x 2,

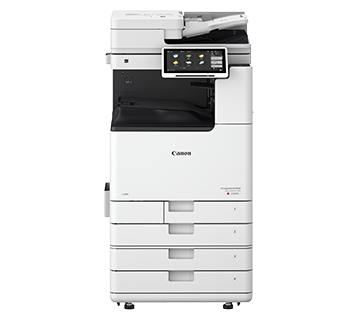

Maximum: 2,300 sheets (with Cassette Feeding Unit-AW1)
Paper Output Capacity (A4, 80 gsm)Standard: 250 sheets

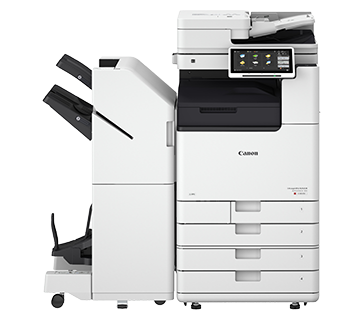

Maximum: 3,450 sheets (with Staple Finisher-AE1 or Booklet Finisher-AE1 and Copy Tray-T1)
Finishing Capabilities*2Standard: Collate, Group
With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, ECO-Staple, Staple-On-Demand
Supported Media TypesMulti-purpose tray: Thin, Plain, Heavy*3, Recycled, Coated*3, Colour, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Envelope

Upper Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope

Lower Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Transparency, Pre-punched, Letterhead, Envelope*4
Supported Media SizesMulti-purpose tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Foolscap, India legal, F4A
Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm
Free size: 100.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes: COM10 No.10, Monarch, DL, ISO-C5
Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mm

Upper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm
Envelopes: ISO-C5

Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes*4: COM10 No.10, Monarch, DL
Supported Media WeightsMulti-purpose tray: 52 to 300 gsm*3
Upper/Lower Cassette: 52 to 256 gsm
Duplex: 52 to 220 gsm
Warm-up Time
(Quick start mode: ON)
Quick Startup Mode: 4 seconds or less*5
From Sleep Mode: 10 seconds or Less
From Power On: 10 seconds or less*6
Dimensions (W x D x H)With Platen Cover-Y3: 565 x 692 x 788 mm
With Single Pass DADF-C1: 565 x 722 x 897 mm
With DADF-BA1: 565 x 719 x 891 mm
Installation Space (W x D)Basic:
978 x 1,119 mm (with Single Pass DADF-C1 + right cover open + Multi-purpose tray extension extended + paper cassette open)
978 x 1,116 mm (with DADF-BA1 + right cover open + Multi-purpose tray extension extended + paper cassette open)

Fully Configured:
1,651 x 1,119 mm (with Single Pass DADF-C1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T1 extension extended + paper cassette open
1,651 x 1,116 mm (with DADF-BA1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T1 extension extended + paper cassette open)
WeightWith Platen Cover-Y3: Approx. 72 kg*7
With DADF-BA1: Approx. 79 kg*7
With Single Pass DADF-C1: Approx. 85 kg*7
Print
Print Speed (BW and CL, 1-sided)iR-ADV DX C3835i:
Up to 35 ppm (A4, A5, A5R, A6R), Up to 17 ppm (A3), Up to 23 ppm (A4R)

iR-ADV DX C3830i:
Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)

iR-ADV DX C3826i:
Up to 26 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)

iR-ADV DX C3822i:
Up to 22 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
Print Resolution (dpi)1,200 x 600,
1,200 x 1,200 (half-speed)
Page Description LanguagesStandard: UFR II, PCL6
Optional: Adobe® PostScript® 3™
Direct Print (RUI)Supported file types: PDF, EPS, TIFF/JPEG, and XPS
Printing from Mobile and Cloud ApplicationAirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print
FontsPS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*9
Operating SystemUFRII: Windows® 8.1 / 10 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019, Mac OS X (10.11 or later)

PCL: Windows® 8.1 / 10 / Server 2012 / Server 2012 R2 / Server 2016 / Server2019

PS: Windows® 8.1 / 10 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019, Mac OS X (10.11 or later)

PPD: Windows® 8.1 / 10, Mac OS X (10.11 or later)
Copy
Copy Speed (BW and CL, 1-sided)iR-ADV DX C3835i:
Up to 35 ppm (A4, A5, A5R, A6R), Up to 17 ppm (A3), Up to 23 ppm (A4R)

iR-ADV DX C3830i:
Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)

iR-ADV DX C3826i:
Up to 26 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)

iR-ADV DX C3822i:
Up to 22 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
First-Copy-Out Time (A4, BW/CL)iR-ADV DX C3835i: Approx. 5.5/7.4 seconds or less
iR-ADV DX C3830i/C3826i/C3822i: Approx. 6.1/8.4 seconds or less
Copy Resolution (dpi)600 x 600
Multiple CopiesUp to 999 copies
Copy DensityAutomatic or Manual (9 Levels)
MagnificationVariable zoom: 25% to 400% (1% Increments)
Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%
Scan
TypeStandard: Colour Flatbed Scan Unit
Optional: Platen Cover-Y3, Single Pass DADF-C1*10 or DADF-BA1 [2-sided to 2-sided (Automatic with DADF)]
Document Feeder Paper Capacity (80 gsm)Single Pass DADF-C1: up to 200 Sheets
DADF-BA1: up to 100 Sheets
Acceptable Originals and WeightsPlaten: Sheet, Book, and 3-Dimensional Objects

Document Feeder media weight:
Single Pass DADF-C1:
1-sided scanning: 38 to 220 gsm (BW, CL)
2-sided scanning: 38 to 220 gsm (BW, CL)
*An acceptable weight of A6R or smaller is 50 to 220gsm.

DADF-BA1:
1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)
2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)
Supported Media SizesPlaten max. scanning size: 297.0 x 431.8 mm

Single Pass DADF-C1:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R,
Custom size: 69.9 x 139.7 mm to 304.8 x 431.8 mm

DADF-BA1:
A3, A4, A4R, A5, A5R, B4, B5, B5R, B6,
Custom size: 139.7 x 128 mm to 297.0 x 431.8 mm
Scan Speed (ipm: BW/CL, A4)Single Pass DADF-C1:
1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy)
2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)

DADF-BA1: 1-sided Scanning: 70/70 (300 x 300 dpi, send), 51 /51 (600 x 600 dpi, copy)
2-sided Scanning: 35/35 (300 x 300 dpi, send), 25.5 /25.5 (600 x 600 dpi, copy)
Scan Resolution (dpi)Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600
Pull Scan SpecificationsColour Network ScanGear2. For both TWAIN and WIA.

Supported OS: Windows® 8.1 / 10 / Server 2012 / Server 2012 R2 / Server 2016
Send
DestinationStandard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box
Optional: Super G3 FAX, IP Fax
Address BookLDAP (2,000) / Local (1,600) / Speed dial (200)
Send Resolution (dpi)Push: up to 600 x 600
Pull: up to 600 x 600
Communication ProtocolFile: FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV
E-mail/I-Fax: SMTP, POP3
File FormatStandard: TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
Fax (Optional)
Maximum Number of Connection Lines2
Modem SpeedSuper G3: 33.6 kbps
G3: 14.4 kbps
Compression MethodMH, MR, MMR, JBIG
Resolution (dpi)400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)
Sending and Receiving SizeSending: A3, A4, A4R, A5*11, A5R*11, B4, B5*12, B5R*11
Receiving: A3, B4, A4, A4R, A5R, B5, B5R
Fax MemoryUp to 30,000 pages (2,000 jobs)
Speed DialsMax. 200
Group Dials / DestinationsMax. 199 dials
Sequential BroadcastMax. 256 addresses
Memory BackupYes
Store
Box (Number supported)100 User Inboxes
1 Memory RX Inbox
50 Confidential Fax Inboxes
Maximum 10,000 Pages (2,000 jobs) Stored
Advanced BoxCommunication Protocol: SMB or WebDAV
Supported Client PC: Windows® 8.1/10
Concurrent Connections (Max.): SMB: 64, WebDAV: 3
Advanced Box Available Disc SpaceApprox. 16 GB (Standard)
Approx. 480 GB (with option)
Security
Authentication and Access ControlUser Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login),
Department ID Authentication (Department ID and PIN Login, Function Level Login),
uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login),
Access Management System (Access Control)
Document SecurityPrint Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*13), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically),
Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration),
BOX Security (Mail Box Password Protected, Advanced Box Access Control),
Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark)
Network SecurityTLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), Communication Line Separation (G3 FAX separation, USB Port, Scan and Send -Virus Concerns for E-mail Reception)
Device SecurityProtecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFP Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP) (pending confirmation)
Device Management and AuditingAdministrator Password, Digital Certificate And Key Management, Audit Log,
Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting
Environmental
Operating EnvironmentTemperature: 10 to 30 ºC
Humidity: 20 to 80 % RH (Relative Humidity)
Power Source220-240 V 50/60 Hz 5 A
Power ConsumptionMaximum: Approx. 1,500 W
Standby: Approx. 40.7 W*14
Sleep mode: Approx. 0.8 W*15
Consumables
Toner CartridgesNPG-67 Toner BK/C/M/Y
NPG-67L Toner C/M/Y
Toner Yield (Estimated Yield @5% coverage)NPG-67 Toner BK: 36,000 pages
NPG-67 Toner C/M/Y: 19,000 pages
NPG-67L Toner C/M/Y: 2,500 pages
Software and Printer Management
Tracking and ReportingUniversal Login Manager (ULM)
uniFLOW Online Express
Remote Management ToolsiW Management Console
eMaintenance
Content Delivery System
Scanning SoftwareColour Network ScanGear 2
Optimisation ToolsCanon Driver Configuration Tool
PlatformMEAP (Multifunctional Embedded Application Platform)
Document PublishingiW DESKTOP
Paper Supply Options
Cassette Feeding Unit-AW1Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm)

Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead

Paper Size:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Foolscap, India legal, F4A
Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm

Paper Weight: 52 to 256 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 565 x 635 x 248 mm
Weight: Approx. 16.0 kg
Hardware Accessories
Card ReadersCopy Card Reader-F1
Copy Card Reader Attachment-B7
IC Card Reader Box for Numeric Keypad-A1
OthersUtility Tray-B1
Numeric Keypad-A2
Media Adjustment Kit-A1
Security Options
Data Security1 TB SSD-A1
Memory Mirroring Kit-A1
250 GB SSD-A1 (usage with Memory Mirroring Kit-A1)
System and Controller Options
Print AccessoriesPCL International Font Set-A1
PCL Asian Font Set-A1
PS Printer Kit-BJ1
Barcode PrintingBarcode Printing Kit-D1
System AccessoriesCopy Control Interface Kit-A1
Serial Interface Kit-K3
Connection Kit-A3 for Bluetooth LE
NFC Kit-E2
Fax AccessoriesSuper G3 FAX Board-BH1
Super G3 2nd Line Fax Board-BH1
Remote Fax Kit-A1
IP FAX Expansion Kit-B1
Other Options
Accessibility AccessoriesADF Access Handle-A1
Voice Guidance Kit-G1
Voice Operation Kit-D1
Staple CartridgesStaple Cartridge-Y1
Staple-P1
*1 Reserved for image processing.
*2 Finishing capabilities vary depending on the options connected.
*3 SRA3 is unsupported for Coated (257-300 gsm) and Heavy (257-300 gsm) paper.
*4 Envelope Feeder Attachment A (standard) is required.
*5 Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.
*6 Time from device power-on, until copy ready (not print reservation).
*7 including NPG-67 Toner BK/C/M/Y.
*8 Optional PCL International Font Set-A1 is required.
*9 Optional Barcode Printing Kit-D1 is required.
*10 Detect Feeder Multi Sheet Feed is supported.
*11 Sent as A4.
*12 Sent as B4 short.
*13 Requires uniFLOW Online/uniFLOW.
*14 Reference value: measured one unit.
*15 0.8W sleep mode is not available in all circumstances due to certain settings.

Product Catalogue PDF file : CANON Colour Multi-Function Copier iR ADV DX C3835i 710KB

(You need to install Acrobat Reader to open the PDF files.)
