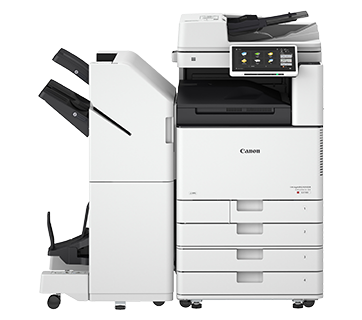

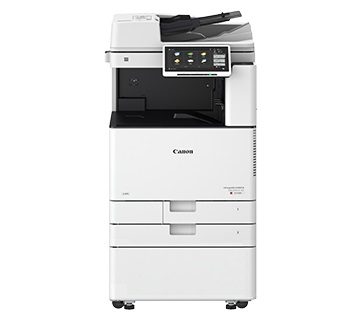

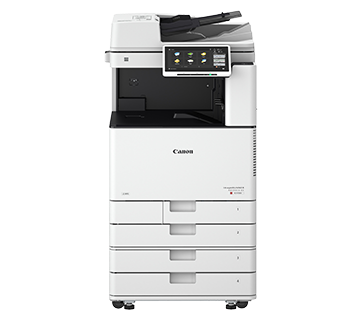

Canon Light Heavy Duty Colour Multi-Function Copier - iR ADV DX C3725i
Cloud ready document processing with Vivid and Vibrant colour output
The imageRUNNER ADVANCE DX C3725i provides great productivity with high quality colour output. This device facilitates simple and efficient document processing, making it an excellent partner for daily office tasks.
- Print, Copy, Scan, Send and Store.
- 10.1-inch Colour Touch Panel
- Network, Wi-Fi, USB 3.0 connectivity
• 10.1″ intuitive touchscreen with smartphone-like usability.
• A unique, customized experience tailored to individual preferences using My ADVANCE.
• Supports mobile solutions and integration with many popular cloud services like Google Drive.*1
• Scan and convert documents to searchable digital files in a varietyof file formats.
• Integration with Canon and various third-party software with embedded application platform.
• Hot Folders allow users to drag and drop a file into a hot folder, and automatically print with predefined settings such as number of copies and finishing requirements.
*1 – Subscription to a third-party cloud service required. Subject to third-party cloud service providers’ terms and conditions.
• Advanced standard security feature set to help safeguard sensitive information and assist in regulatory compliance.
• Integrates with existing, third-party SIEM* systems to help provide real-time, comprehensive insights into potential threats to the network and printers.
• Technology to verify that the device boot process, firmware, and applications initialize without alteration at startup. McAfee Embedded Control*2 utilizes a whitelist to protect against malware and tampering of firmware and applications.
• Security policy settings can be controlled with a dedicated password, configured from a central location, and exported to other supported devices.

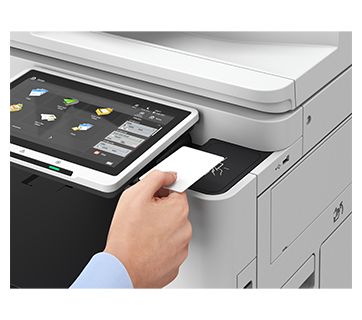

• Control access to the device and specific features, using a host of flexible authentication methods—PIN code, user name/password, or card access.*3
* Security Information and Event Management
*2 – Requires Unified Firmware Platform v3.9 or greater.
*3 – Requires additional option.
• Canon’s signature reliability and engine technologies help keep productivity high and minimize the impact on support resources.
• Outstanding imaging technologies and toner allow for consistently striking images, thanks to Canon’s V2 color profile.
• Designed to achieve maximum uptime with status notifications that help keep supplies replenished and intuitive maintenance videos for consumables replacement.
• imageRUNNER ADVANCE models have received many awards and recognition from leading industry analysts, often referencing strong reliability.
• Designed for quick, easy deployment.
• Remote diagnostics and parts life management for proactive maintenance and rapid fixes.
• Easy and intuitive to monitor device status and consumable levels, turn off devices remotely, observe meter readings, manage settings, and implement security policies.
• Common firmware and regular updates with Unified Firmware Platform (UFP) for continuous improvements and consistency across a fleet.
• Track and assess print, copy, scan, and fax usage and allocate costs to departments or projects.
• Apply print policies and restrict usage by user to help reduce unnecessary printing and contribute to cost efficiency.
• Standard cloud-based solution provides a centralized dashboard with up-to-the-minute insights into printer activity.
• Upgrade to uniFLOW server or cloud-based solutions for full accounting and reporting for compatible Canon and third-party devices, pull printing, job routing, and powerful scan workflows.
• A combination of fusing technologies and low-melting-point toner minimizes power requirements and helps achieve low energy consumption.
• Encourage environmentally conscious work practices by enabling multiple settings that can help save paper and energy.
• ENERGY STAR® certified and rated EPEAT® Gold.*4
*4 – For current EPEAT rating (Gold/Silver/Bronze), please visit www.epeat.net.
|Canon Colour Multi-Function Copier – iR ADV DX C3720i / C3725i / C3730i Specifications|
|Machine Type||A3 Colour Laser Multifunctional|
|Core Functions||Print, Copy, Scan, Send, Store and Optional Fax|
|Processor||Canon Dual Customer Processor (Shared)|
|Control Panel||10.1″ TFT LCD WSVGA Color Touch panel|
|Memory||Standard: 3.0GB RAM|
|Hard Disk Drive||Standard*1: 320 GB (available disk space: 250 GB)
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth Low Energy
Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1
Optional: Serial Interface, Copy Control Interface
|Paper Supply Capacity (A4, 80 gsm)||Standard:
100-sheet Multi-purpose tray x 1
550-sheet cassette x 2
Maximum: 2,300 sheets (with Cassette Feeding Unit-AP1)
|Paper Output Capacity (A4, 80 gsm)||Standard: 250 sheets
Maximum: 3,450 sheets (with Staple Finisher-AA1/Booklet Finisher-AA1 and Copy Tray-J2)
|Finishing Capabilities||Standard: Collate, Group
With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand
|Supported Media Types||Multi-purpose tray: Thin, Plain, Heavy*2, Recycled, Coated*2, Color, Tracing, Bond, Transparency, Label, Pre-punched, Envelope
Upper Cassette: Thin, Plain, Heavy, Recycled, Color, Tracing, Bond, Transparency, Pre-punched, Envelope
Lower Cassette: Thin, Plain, Heavy, Recycled, Color, Bond, Transparency, Pre-punched, Envelope*3
|Supported Media Sizes||Multi-purpose tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm
Free size: 98.4 x 139.7 mm to 320.0 x 457.2 mm
Envelopes: COM10 No.10, Monarch, DL, ISO-C5
Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mm
Standard size: A4, A5, A5R, A6R, B5
Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Envelopes*4: COM10 No.10, Monarch, DL
|Supported Media Weights||Multi-purpose tray: 52 to 300 gsm*2
Upper/Lower Cassette: 52 to 220 gsm
Duplex: 52 to 220 gsm
|Warm-up Time||Quick Startup Mode: 4 seconds or less*5
From Sleep Mode: 10 seconds or less
From Power On: 10 seconds or less*6
|Dimensions (W x D x H)||With Platen Cover-Y2: 565 x 692 x 777 mm
With Single Pass DADF-C1: 565 x 722 x 887 mm
With DADF-BA1: 565 x 719 x 880 mm
|Installation Space (W x D)||Basic:
978 x 1,118 mm (with Single Pass DADF-C1 + right cover open + Multi-purpose tray extension extended + paper cassette open)
978 x 1,115 mm (with DADF-BA1 + right cover open + Multi-purpose tray extension extended + Paper cassette open)
1,651 x 1,118 mm （with Single Pass DADF-C1 + Staple Finisher-AA1/Booklet Finisher-AA1 + Copy Tray-J2 extension extended + paper cassette open）
1,651 x 1,115 mm (with DADF-BA1 + Staple Finisher-AA1/Booklet Finisher-AA1 + Copy Tray-J2 extension extended + paper cassette open)
|Weight||With Platen Cover-Y2: Approx. 66.7 kg including toner
With DADF-BA1: Approx. 73.1 kg including toner
With Single Pass DADF-C1: Approx. 79.6 kg including toner
|Print Speed (BW and CL)||iR-ADV DX C3730i:
Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
iR-ADV DX C3725i:
Up to 25 ppm (A4, A5, A5R ,A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
iR-ADV DX C3720i:
Up to 20 ppm (A4,A5,A5R,A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
|Print Resolution (dpi)||600 x 600, 1200 x 1200 (half-speed)|
|Page Description Languages||Standard: UFR II, PCL6
Optional: Adobe® PostScript®3™
|Direct Print||Supported file types: PDF, EPS, TIFF/JPEG, and XPS|
|Printing from Mobile and Cloud||AirPrint, Mopria, Google Cloud Print, Canon Business Print, and uniFLOW Online
A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements.
Please contact your sales representative for further information
|Fonts||PS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*7 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*8
|Print Features||Secured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer|
|Operating System||UFRII: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later)
PCL: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019
PS: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later)
PPD: Windows® 7 / 8.1 / 10, Mac OS X (10.9 or later)
As of July, 2019.
|Copy Speed (BW and CL)||iR-ADV DX C3730i:
Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
iR-ADV DX C3725i:
Up to 25 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
iR-ADV DX C3720i:
Up to 20 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)
|First-Copy-Out Time (A4, BW/CL)||Approx. 5.9/8.2 seconds or less|
|Copy resolution (dpi)||600 x 600|
|Multiple Copies||Up to 999 copies|
|Copy Density||Automatic or Manual (9 Levels)|
|Magnification||Variable zoom: 25% to 400% (1% Increments)
Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%
|Copy Features||Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Mirror Image, Copy ID Card, Skip Blank Pages, Free Size Original, Color Mode, Reserved copy, Copy Sample|
|Type||Standard: Colour Flatbed Scan Unit
Optional: Platen Cover, Single Pass DADF-C1*9 or DADF-BA1 [2-sided to 2-sided (Automatic with DADF)]
|Document Feeder Paper Capacity (80 gsm)||Single Pass DADF-C1: up to 200 Sheets
DADF-BA1: up to 100 Sheets
|Acceptable Originals and Weights||Platen:
Sheet, Book, and 3-Dimensional Objects
Document Feeder media weight:
Single Pass DADF-C1：
1-sided scanning: 38 to 220 gsm (BW, CL)
2-sided scanning: 38 to 220 gsm (BW, CL)
*An acceptable weights of A6R or smaller is 50 to 220gsm.
1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)
2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)
|Supported Media Sizes||Platen max. scanning size: up to 297.0 x 431.8 mm
Single Pass DADF-C1:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R,
Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm
A3, A4, A4R, A5, A5R, B4, B5, B5R, B6,
Custom size: 139.7 x 128 mm to 297.0 x 431.8 mm
|Scan Speed (ipm, BW/CL, A4)||Single Pass DADF-C1:
1-sided Scanning: 135/135 (300 x 300 dpi, send), 51/51 (600 x 600 dpi, copy)
2-sided Scanning: 270/270 (300 x 300 dpi, send), 51/51 (600 x 600 dpi, copy)
1-sided Scanning: 70/70 (300 x 300 dpi, send), 51 /51 (600 x 600 dpi, copy)
2-sided Scanning: 35/35 (300 x 300 dpi, send), 25.5 /25.5 (600 x 600 dpi, copy)
|Scan Resolution (dpi)||Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600
|Pull Scan Specifications||Color Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server 2016
|Scan Method||Push Scan, Pull Scan, Scan to Box, Scan to Advanced Box, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud (uniFLOW Online)|
|Destination||Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box
Optional: Super G3 FAX, IP Fax
|Address Book||LDAP (2,000)/Local (1,600)/Speed dial (200)|
|Send Resolution (dpi)||Push: up to 600 x 600
Pull: up to 600 x 600
|Communication Protocol||File: FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV
E-mail/I-Fax: SMTP, POP3
|File Format||Standard: TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)|
|Universal Send Features||Original Type Selection,Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages|
|Maximum Number of Connection Lines||2|
|Modem Speed||Super G3: 33.6 kbps
G3: 14.4 kbps
|Compression Method||MH, MR, MMR, JBIG|
|Resolution (dpi)||400×400 (Ultra Fine), 200×400 (Super Fine), 200×200 (Fine), 200×100 (Normal)|
|Sending/Receiving Size||Sending: A3, A4, A4R, A5*10, A5R*10, B4, B5*11, B5R*10
Receiving: A3, B4, A4, A4R, A5R , B5, B5R
|FAX Memory||Up to 30,000 pages (2,000 jobs)|
|Speed Dials||Max. 200|
|Group Dials / Destinations||Max. 199 dials|
|Sequential Broadcast||Max. 256 addresses|
|Fax Features||Sender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log|
|Mail Box (Number supported)||100 User Inboxes, 1 Memory RX Inbox,
50 Confidential Fax Inboxes,
Maximum 10,000 Pages (2,000 jobs) Stored
|Advanced Box||Communication Protocol: SMB or WebDAV
Supported Client PC: Windows® 8.1/10
Concurrent Connections (Max.): SMB:64, WebDAV:3
|Advanced Box Available Disc Space||Standard:16 GB
(With option: max. 480GB.)
|Advanced Box Features||Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore|
|Authentication and Access Control||Standard: User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)|
|Document Security||Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*12), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Scan Lock (QR code), Document Tracking (Secure Watermark)|
|Network Security||TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception|
|Device Security||Protecting HDD Data (HDD Data Encryption (FIPS140-2 Validated), HDD Data Overwrite Erase, HDD Lock), Standard HDD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection)
Optional: IEEE2600.2 (Common Criteria Certification) (TBD)
|Device Management and Auditing||Administrator Password, Digital Certificate And Key Management, Audit Log,
Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting
|Operating Environment||Temperature: 10 to 30 ºC
Humidity: 20 to 80 % RH (Relative Humidity)
|Power Requirements||220-240V, 50/60Hz, 4A|
|Power Consumption||Maximum: Approx. 1,500 W
Standby: Approx. 45.1 W*13
Sleep mode: Approx. 0.8 W*14

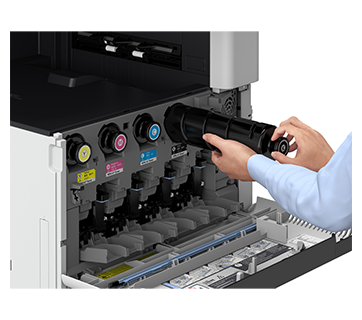

|Toner Cartridges||NPG-67 Toner BK/C/M/Y|
|Toner (Estimated Yield @ 5% Coverage)||NPG-67 Toner BK: 36,000 pages
NPG-67 Toner C/M/Y: 19,000 pages
NPG-67L Toner C/M/Y: 2,500 pages
|Software and Printer Management|
|Tracking and reporting||Universal Login Manager (ULM)
uniFLOW Online Express
|Remote Management Tools||iW Management Console
Content Delivery System
|Scanning Software||Network ScanGear|
|Optimisation Tools||Canon Driver Configuration Tool
NetSpot Device Installer
|Platform||MEAP (Multifunctional Embedded Application Platform)|
|Document Publishing||IW DESKTOP|
|Paper Supply Options|
|Cassette Feeding Unit-AP1||Paper Capacity:
550 sheets x 2 (1,100 sheets) (80 gsm)
Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R,
Custom Size (105.0 x 148.0 mm to 304.8 x 457.2 mm)
52 to 220 gsm
From the Main Unit
Dimensions (W x D x H):
565 x 615 x 248 mm
Weight: Approx. 16.0 kg
|Card Readers||Copy Card Reader-F1
Copy Card Reader Attachment-B7
3 Way Unit-D1
|Document Device Security||iR-ADV Security Kit-AM1 for IEEE 2600 Common Criteria Certification (TBD)|
|Data Security||2.5inch/1TB HDD-P1|
|System and Controller Options|
|Print Accessories||PCL International Font Set-A
PCL Asian Font Set-A1
PS Printer Kit-BJ1/CD1
|Barcode Printing||Barcode Printing Kit-D1|
|System Accessories||Copy Control Interface Kit-A1
Serial Interface Kit-K3
Connection Kit-A2 for Bluetooth LE
|FAX Accessories||Super G3 FAX Board-AZ1
Super G3 2nd Line Fax Board-AU1
Remote Fax Kit-A1
IP FAX Expansion Kit-B1
|Accessibility Accessories||ADF Access Handle-A1
Voice Guidance Kit-G1
Voice Operation Kit-D1
|*1 A different initial HDD may be used.
*2 SRA3 is unsupported for Coated (257-300gsm) and Heavy(257-300gsm) paper.
*3 Envelope Feeder Attachment A (standard) is required.
*4 Envelope Attachment A (standard) is required.
*5 Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display.
*6 Time from device power-on, until copy ready (not print reservation).
*7 Optional PCL International Font Set-A1 is required.
*8 Optional Barcode Printing Kit-D1 is required.
*9 Detect Feeder Multi Sheet Feed is supported.
*10 Sent as A4.
*11 Sent as B4 short.
*12 Requires uniFLOW Online / uniFLOW.
*13 Reference value: measured one unit.
*14 0.8W sleep mode is not available in all circumstances due to certain settings.
