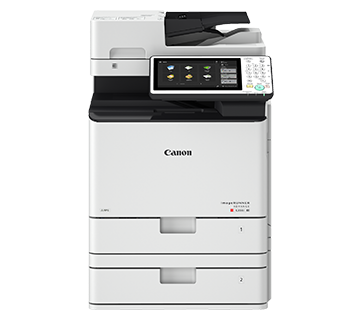

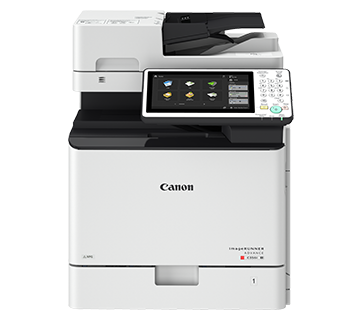

Canon A4 Size Colour Multi-Function Copier - iR ADV C356i III

Intelligent, versatile Colour A4 multifunctional with flexible connectivity

The imageRUNNER ADVANCE C356i III offers much of the functionality of an A3 device, making them a great addition to any busy working groups who require a compact solution.

  • A4 in Colour or Monochrome with 35 ppm
  • Copy / Print / Scan / Send / Store
  • 10.1-inch colour Touch Panel
  • Small footprint for desktop configuration

RSP : RM12,203.00 / unit.
FREE : 1 year on-site warranty.

VIDEOS

FEATURES

• Intuitive touchscreen provides users with smartphone-like usability, making navigation a breeze.

• Intelligent feeder allows effortless, rapid scanning with features like multi-sheet feed detection and skip blank originals.

• My ADVANCE enables a unique, personal experience tailored to meet each user’s workflow needs. Settings, such as display language, initial log-in screen, and accessibility options, can be synchronised across multiple devices for consistency.

• Canon’s MEAP platform provides process optimisation, by integrating with a range of powerful document, capture and output management solutions.

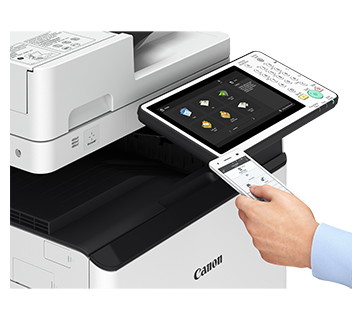

• Scalable support for mobile where users can connect directly to the device with Direct Access Point. Capture, scan or print documents easily with the Canon Print Business app.

• Intelligent Recovery wakes device from sleep mode when user is approaching device via motion sensor technology.

• Control who has access to the device with different authentication methods such as picture login, department ID, user authentication and card access.

• Ensure information privacy and security across your network with IPsec, port filtering capabilities, and SSL technology.

• Enhance document confidentiality with encrypted secure print, secure print, secure watermark, encrypted PDF and device signature PDF.

• Ensure device is safe from unknown firmware installation with system verification at startup.

• Integrate with third-party solutions for complete monitoring protection.

• V2 (Vivid & Vibrant) imaging technology ensures high quality printouts that impress time after time.

• Supreme transferability of toner and stable reproduction of colours onto a wide range of media, even at large volumes.

• State-of-the-art imaging technologies and toner allow for consistently striking images with 1,200 dpi print resolution.

• Canon’s device management tools give you a centralised point of control across your entire fleet, upgrade devices remotely, check device and consumables status and capture meter readings.

• Standard PCL and Adobe® PostScript™ print driver allows seamless integration with enterprise applications.

• Remote diagnostics allow timely, accurate and effective resolution.

• Intuitive user maintenance videos and status notifications available to help achieve maximum uptime and keep supplies replenished.

• The ability to apply print policies, monitor output, and restrict usage by user helps reduce unnecessary printing, resulting in lower total document cost.

• Tight integration with output management solutions, such as uniFLOW, provides the ability to carry out detailed tracking, reporting, and cost analysis.

• Quality and reliability, combined with remote diagnostics and assistance, can help reduce costs by minimising downtime and time spent by IT resolving issues.

• Consistent user operation combined with remote and centralised fleet management can help simplify IT management of devices and entire fleets.

• CS Toner (consistently stable) provides print quality even for high volume print jobs.

• Minimise paper waste by holding jobs at the device with Force Hold Print. Choose to preview your print jobs or even change print settings at the device to achieve the desired results at the first time of printing.

• Consumes as little as 0.8W in sleep mode.

Canon Colour Multi-Function Digital Copier iR ADV C356i III Specifications
Main Unit
TypeA4 Colour Laser Multifunctional
Core FunctionsPrint, Copy, Scan, Send, Store and Optional Fax
ProcessorCanon Dual Custom Processor (Shared)

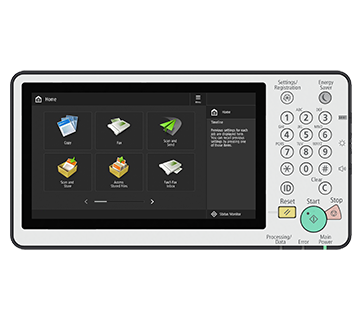

Control Panel10.1 inch TFT LCD WSVGA Colour Touch panel
MemoryStandard: 3.0 GB RAM
Hard Disk DriveStandard: 320GB (Available disk space: 250GB)
Interface ConnectionNetwork
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)
Optional: NFC, Bluetooth Low Energy

Others
Standard: USB 2.0 x1 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device),
Optional: Serial Interface, Copy Control Interface
Paper Supply Capacity (A4, 80gsm)Standard: 650 sheets (1 x 550-sheet cassette, 100-sheet multi-purpose tray)
Maximum: 2,300 sheets (with Cassette Feeding Unit-AK1)
Paper Output Capacity (A4, 80 gsm)Standard: 250 Sheets
Maximum: 500 Sheets (with Staple Finisher-Z1)
Finishing CapabilitiesStandard: Collate, Group
With Staple Finisher-Z1 : Collate, Group, Offset, Staple
Supported Media TypesPaper Cassette:
Thin, Plain, Thick, Colour, Recycled, Pre-punched, Bond, Envelope

Multi-purpose tray:
Thin, Plain, Thick, Colour, Recycled, Pre-punched, Transparency, Label, Bond, Envelope
Supported Media SizesPaper Cassette:
Standard size: A4, A5, A5R, A6, B5, Envelope [No. 10(COM 10), Monarch, ISO-C5, DL]
Custom size: 98.0 x 190.5 mm to 216.0 x 355.6 mm

Multi-purpose tray:
Standard size: A4, A5, A5R, A6, B5, Envelope [No.10 (COM10), Monarch, ISO-C5, DL]

Custom Size: 98.0 x 148.0 mm to 216.0 x 355.6 mm
Envelope custom size: 98.0 x 148.0 mm to 216.0 x 355.6 mm
Supported Media WeightsCassettes: 60 to 163 gsm
Multi-purpose tray: 60 to 220 gsm
Duplex: 60 to 163 gsm
Warm-up TimeFrom Power On: 30 Seconds or Less*1
From Deep Sleep Mode: 10 Seconds or Less
Quick Startup Mode: 4 Seconds or Less2
Dimensions (W x D x H)511 x 651 x 639 mm
With Cassette Feeding Unit-AJ1 or AK1: 511 x 651 x 1,064 mm
Installation Space (W x D)Basic: 852 x 908 mm (with Multi-purpose tray open + Cassette Drawers open)
Fully Configured: 1,407 x 908 mm (with STAPLE FINISHER-Z1 + Multi-purpose tray open + Cassette Drawers open)
Weight (including toner)Approx. 50 kg including toner
Approx. 66 kg including toner (with Cassette Feeding Unit-AJ1)
Approx. 60 kg including toner (with Cassette Module-AE1)
Approx. 69 kg including toner (with Cassette Feeding Unit-AK1)
Print
Print Speed (Simplex, BW/CL)iR-ADV C356i III
Up to (ppm) 35 (A4), up to (ppm) 26 (A5R), up to (ppm) 61 (A5), up to (ppm) 23 (A6)
Print Resolution (dpi)Data processing resolution: 600 x 600 (Default), 1,200 x 1,200
Page Description LanguagesStandard: UFR II, PCL6, Adobe PS 3
Direct PrintDirect printing available from USB memory, Advanced box, Remote UI and Web Access*3
Supported File Types: PDF, TIFF, JPEG, EPS, XPS
Printing from Mobile and CloudAirPrint, Mopria, Google Cloud Print, and Canon Business Print, and uniFLOW Online
FontsPCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andal? Mono WT
J/K/S/T*4 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*5
PS fonts: 136 Roman
Operating SystemUFRII: Windows 7 / 8.1 /10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016, MAC OS X (10.9 or later)
PCL: Windows 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016 PS: Windows 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016, MAC OS X (10.9 or later)
PPD: MAC OS X (10.3.9 or later), Windows 7 / 8.1/ 10
Copy
Copy Speed (Simplex, BW/CL)Up to (ppm) 35 (A4), up to (ppm) 26 (A5R), up to (ppm) 61 (A5), up to (ppm) 23 (A6)
First-Copy-Out Time (A4, BW/CL)Approx. 5.1/6.9 seconds or less
Copy resolution (dpi)Reading: 600 x 600
Printing: Up to 2,400 equivalent x 600
Multiple CopiesUp to 999 copies
Copy DensityAutomatic or Manual (9 Levels)
Magnification25% – 400% (1% Increments)
Preset Reductions25%, 50%, 70%, 81%, 86%
Preset Enlargements115%, 122%, 141%, 200%, 400%
Scan
TypeSingle-pass Duplexing Automatic Document Feeder [2-sided to 2-sided (Automatic)]
Document Feeder Paper Capacity (80 gsm)100 Sheets
Acceptable Originals and WeightsPlaten media size: Sheet, Book, 3-Dimensional Objects (Height: Up to 30 mm, Weight: up to 2 kg)

Document Feeder media weights (BW/CL):
1-sided scanning: 42 to 128 gsm/64 to 128 gsm
2-sided scanning: 50 to 128 gsm/64 to 128 gsm
Supported Media SizesPlaten: max. scanning size: 216.0 x 355.6 mm
Document Feeder media size: A4, A5, A6, B5,
Custom size: 105.0 x 148.0 mm to 216.0 x 355.6 mm
Scan Speed (A4, BW/CL)1-sided Scanning (ipm): 50/50 (300 dpi), 30/30 (600 dpi)
2-sided Scanning (ipm): 100/100 (300dpi), 50/50 (600 dpi)
Scan Resolution (dpi)600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200, 200 x 100, 150 x 150, 100 x 100
Pull Scan SpecificationsColour Network ScanGear2. For both TWAIN and WIA
Supported OS: Windows 7/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
Send
DestinationE-mail/Internet FAX (SMTP), SMB v3.0, FTP, WebDAV, Mail Box, Super G3 FAX(Optional), IP Fax(Optional)
Address BookLDAP (2,000)/Local (1,600)/One-touch dial (200)
Send Resolution (dpi)600 x 600, 400 x 400, 300 x 300, 200 x 400, 200 x 200, 200 x 100, 150 x 150, 100 x 100
Communication ProtocolFile: FTP (TCP/IP), SMB v3.0, WebDAV
E-mail/I-Fax: SMTP, POP3
File FormatStandard: TIFF, JPEG, PDF(Compact, Apply policy, Optimize for Web, PDF A/1-b, Encrypted, Device Signature), XPS(Compact, Device Signature)
Optional: PDF(Trace & Smooth, Searchable, User Signature), XPS(Searchable, User Signature), Office Open XML (PowerPoint, Word)
Fax (Optional item)
Maximum Number of Connection Lines2
Modem SpeedSuper G3: 33.6 kbps
G3: 14.4 kbps
Compression MethodMH, MR, MMR, JBIG
Resolution (dpi)400 x 400, 200 x 400, 200 x 200, 200 x 100
Sending / Recording SizeA4, A5*6, A6*6 and B5*6
Fax MemoryUp to 30,000 pages
Speed DialsMax. 200
Group Dials / DestinationsMax. 199 dials
Sequential BroadcastMax. 256 addresses
Memory BackupYes
Store
Mail Box (Number supported)100 User Inboxes, 1 Memory RX Inbox,
50 Confidential Fax Inboxes,
30,000 Maximum Pages Stored
Advanced BoxCommunication Protocol: SMB or WebDAV
Concurrent Connections (Max.): SMB: 64, WebDAV: 3 (Active Sessions)
Advanced Box Available Disc SpaceApprox. 16GB (Standard HDD)
Memory MediaStandard: USB Memory
Security
AuthenticationStandard: User Authentication (Picture Login/Keyboard Authentication), DepartmentID Authentication, Access Management System, uniFLOW Online Express Cloud based management software
Optional: My Print Anywhere secure print (Requires uniFLOW)]
DataStandard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Mail Box Password Protection, Hard Disk Drive Encryption(FIPS140-2 Validated)
Optional: IEEE 2600.2 Common Criteria Certification, Data Loss Prevention (Requires uniFLOW)
NetworkStandard: IP/Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP, S/MIME
DocumentStandard: Secure Print, Adobe LiveCycle® Rights Management ES2.5 Integration, Encrypted PDF, Encrypted Secure Print, Device signatures, Secure Watermarks
Optional: User Signature, Document Scan Lock
Environmental
Operating EnvironmentTemperature: 10 to 30 ºC
Humidity: 20 to 80 % RH (Relative Humidity)
Power Requirements220-240 V (±10 %), 50/60 Hz (?2 Hz), 3.9 Amp
Power ConsumptionMaximum: 1,500W
Standby: Approx. 40.3 W*7
Sleep mode: Approx. 0.8 W*8
Consumables
Toner Cartridge/sNPG-76 TONER BK/C/M/Y
Toner (Estimated Yield @ 5% Coverage)NPG-76 TONER BK: 23,000 pages
NPG-76 TONER C/M/Y: 18,000 pages
Paper Supply Options
Cassette Feeding Unit-AJ1Paper Capacity: 550 Sheets (80gsm)
Paper Size: A4, A5, B5, and Custom Size (98.0 x 190.5 to 216.0 x 355.6 mm)
Paper Type: Thin, Plain, Thick, Colour, Recycled, Pre-punched, Bond
Paper Weight: 60 to 163 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 511 mm x 508 mm x 425 mm
Weight: Approx. 16kg
Cassette Feeding Unit-AK1Paper Capacity: 550 sheets x 3 (80 gsm)
Paper Size: A4, A5, B5, and Custom Size (98.0 x 190.5 to 216.0 x 355.6 mm)
Paper Type: Thin, Plain, Thick, Colour, Recycled, Pre-punched, Bond
Paper Weight: 60 to 163gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 511 mm x 508 mm x 425 mm
Weight: Approx. 19 kg
Cassette Module-AE1Paper Capacity: 550 Sheets (80 gsm)
Paper Size: A4, A5, B5, and Custom Size (98.0 x 190.5 to 216.0 x 355.6 mm)
Paper Type: Thin, Plain, Thick, Colour, Recycled, Pre-punched, Bond
Paper Weight: 60 to 163 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 511 x 508 x 159 mm
Weight: Approx. 10 kg
Output Options

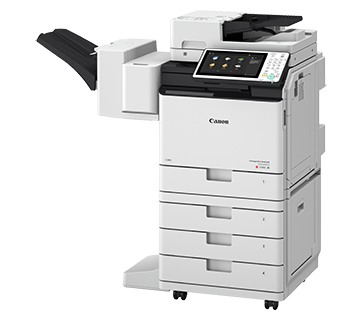

Staple Finisher-Z1 (External)Number of Trays: 1
Tray Capacity: A4, A5, A5R, A6, B5: 500 sheets
Paper Weight: 60 to 220 gsm
Staple Position: Corner
Staple Capacity: 30 sheets (up to 105 gsm) including 2 cover paper (220 gsm)
Power Source: From the Main Unit
Dimensions (W x D x H): 555 x 459 x 301 mm
Weight: Approx. 14 kg
Hardware Accessories
Card ReadersIC Card Reader Attachment-A1
Copy Card Reader-F1
Copy Card Reader Attachment-B5
OthersFL Cassette-AV1
Security Options
Document SecurityDocument Scan Lock Kit-B2
System and Controller options
Print AccessoriesPCL International Font Set-A1
PCL Asian Font Set-A1
Send OptionsUniversal Send Advanced Feature Set-H1 (Trace & Smooth PDF, Searchable PDF/XPS, Office Open XML)
Universal Send Digital User Signature Kit-C1
System AccessoriesSerial Interface Kit-K3
Copy Control Interface Kit-A1
BLE Connection Kit -A1
NFC Kit-C1
FAX AccessoriesSuper G3 FAX Board-AT1
Super G3 2nd Line Fax Board-AT1
Remote Fax Kit-A1
IP FAX Expansion Kit-B1
Other Options
Accessibility AccessoriesADF Access Handle-A1
ConsumablesStaple-P1
*1. Time from device power-on, until copy ready.
*2. Time from device power-on to when key operations can be performed on the touch panel display.
*3. Only PDF print from websites is supported.
*4. Requires optional PCL International Font Set-A1.
*5. Requires optional Barcode Printing Kit-D1.
*6. Sent as A4.
*7. Reference Value (measured one unit).
*8. 0.8W sleep mode is not available in all circumstances due to certain settings.

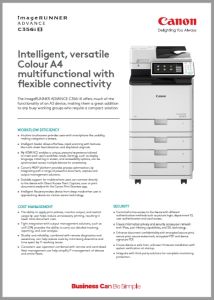

Product Catalogue PDF file : CANON Colour Multi-Function Copier iR ADV C356i III 670KB

(You need to install Acrobat Reader to open the PDF files.)
