Canon Entry Level Colour Multi-Function Copier - iR C3120

Seamless functionality, maximum performance

Designed with simplicity in mind, the imageRUNNER C3120 brings greater workflow productivity by streamlining daily operations. Equipped with standard Wi-Fi and Direct Access Point, achieve high quality colour prints with seamless connection.

  • 20ppm
  • Print, Copy, Scan and Send
  • 5-inch Colour Touch Panel
  • Network, Wi-Fi, and USB connectivity

RSP : RM11,994.00 / unit.
FREE : 1 year on-site warranty.

RENTAL : RM315.00 / month.

FEATURES

Excellent Colour Quality

Canon’s V² colour imaging technology delivers outstanding colour quality. Be impressed with vivid and vibrant quality prints time after time.

Streamlined Workflow

The Application Library helps increase work efficiency. Save time by streamlining routine operations, simplifying frequently performed tasks at the touch of a button.

Cloud Control

A simple cloud-based print management solution, uniFLOW Online Express optimises prints through smart usage analytics. Easily track and manage print, copy, scan and fax usage with usage reports.

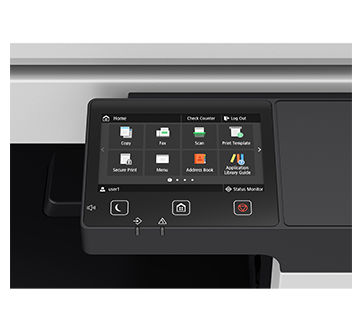

Simple, Intuitive Navigation

Touch panel buttons, allowing home keys customisation and navigation through swipe and flick actions.

Direct Connectivity With Mobile

The imageRUNNER C3120 comes with Direct Access Point capability. Print directly without requiring to be in the same network.

Mobile Printing

Canon Print Business app and a variety of mobile print service plugins such as, Canon Print Service, Google Cloud Print, AirPrint and Mopria Print Service are supported, enabling users to print from smart devices.

Canon Colour Multi-Function Copier – iR ADV C3120 Specifications
Main Unit
TypeA3 Color Laser Multifunctional
Core FunctionsPrint, Copy, Scan, Send and Optional Fax
Control Panel5 inch TFT LCD WVGA Colour Touch panel
MemoryStandard: 2.0GB RAM
StorageeMMC Standard: 2.0GB
Interface ConnectionNetwork
Standard: 1000BaseT/100Base-TX/10Base-T, Wireless LAN (IEEE802.11b/g/n)
Optional: NFC

Others
Standard: USB 2.0 (Host) x 2,
USB 2.0 (Device) x 1
Optional: Copy Control Interface
Paper Supply Capacity (A4, 80 gsm)Standard: 1,200 Sheets
100-sheets Multi-purpose tray x 1, 550-sheets Paper cassette x 2
Maximum: 2,300 Sheets (with Cassette Feeding Unit-AP1)
Paper Output Capacity (A4, 80 gsm)Standard: 250 Sheets
Maximum: 700 Sheets (with Inner Finisher-K1 and Copy Tray J2 )
Supported Media TypesMulti-purpose Tray:
Thin, Plain, Heavy*1, Recycled, Coated*1, Color, Tracing, Bond, Transparency, Label, Pre-punched, Envelope

Paper Cassette (Upper/Lower Cassette):
Thin, Plain, Heavy, Recycled, Color, Bond, Transparency, Pre-punched, Envelope*2
Supported Media SizesMulti-purpose tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Envelope [COM10 No.10, Monarch, ISO-C5, DL]
Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm

Paper Cassette (Upper Cassette):
Standard size: A4, A5, A5R, A6R, B5
Custom size: 105.0 x 148.0 mm up to 297.0 x 215.9 mm
Envelope: ISO-C5

Paper Cassette (Lower Cassette):
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom size: 105.0 x 148.0 mm up to 304.8 x 457.2 mm
Envelope: [COM10 No.10, Monarch, DL]*3
Supported Media WeightsMulti-purpose tray: 52 to 300 gsm*4
Paper Cassette (Upper/Lower Cassette): 52 to 220 gsm
Duplex: 52 to 220 gsm
Warm-up TimeFrom Sleep Mode: 10 Seconds or Less
From Power On : 19s or Less*5
Dimensions (W x D x H)565 x 664 x 880 mm
Installation Space (W x D)1,141 x 1,117 mm*6
WeightApprox. 60.1kg without toner
Print
Print Speed (BW/CL)Up to 20/20 ppm (A4, A5, A5R, A6R), Up to 15/15 ppm (A3), Up to 20/20 ppm (A4R)
Print Resolution (dpi)600 x 600, 1200 x 1200 (half-speed)
Page Description LanguagesStandard: UFR II
Option: PCL6, Adobe®PostScript®3™
Direct PrintSupported file types: PDF, EPS, TIFF/JPEG, XPS*7
FontsPCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Barcode fonts*8
PS fonts: 136 Roman
Operating SystemUFRII: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X(10.10 or later)

PCL: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019

PS: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later)

PPD: Windows® 7 / 8.1 /10, MAC OS X (10.9 or later)

As of November, 2019.
Copy
Copy Speed (BW/CL)Up to 20/20 ppm (A4, A5, A5R, A6R), Up to 15/15 ppm (A3), Up to 20/20 ppm (A4R)
First-Copy-Out Time (A4, BW/CL)Approx. 5.9 / 8.2 seconds or less
Copy resolution (dpi)600 x 600
Multiple CopiesUp to 999 copies
Copy DensityAutomatic or Manual (9 Levels)
MagnificationVariable zoom: 25% – 400% (1% Increments)
Preset reduction/enlargement: 25%, 50%, 70%, 100% (1:1), 141%, 200%, 400%
Scan
TypeOptional: Color Platen (Platen Cover-Y2) or DADF-BA1 [2-sided to 2-sided (Automatic with DADF)]
DADF: Duplexing Automatic Document Feeder
Document Feeder Paper Capacity (80 gsm)100 Sheets
Acceptable Originals and WeightsPlaten: Sheet, Book, and 3-Dimensional objects

Document Feeder media weight:
1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)
2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)
Supported Media SizesPlaten: Max. scanning size: 297.0 x 431.8 mm
Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R, B6
Custom size: 128.0 x 139.7mm to 297.0 x 431.8mm
Scan Speed (A4, BW/CL)1-sided Scanning:
55/55 (300 x 300 dpi, send),
30/30 (600 x 600 dpi, copy)

2-sided Scanning:
27.5/27.5 (300 x 300 dpi, send),
15/15 (600 x 600 dpi, copy)
Scan Resolution (dpi)Scan for Copy: up to 600 x 600
Scan for Fax: up to 600 x 600
Pull Scan SpecificationsScanGear MF. For both TWAIN and WIA
Supported OS: Windows® 7/8.1/10
Scan MethodPushScan, PullScan, Scan to Network, Scan to memory media (USB Memory Key), Scan to cloud-based services (uniFLOW)
Send
DestinationStandard: E-mail/Internet FAX (SMTP), SMB, FTP
Optional: Super G3 FAX
Address BookLDAP (50) / Local (300) / Speed dial (281)
Send Resolution (dpi)Push: 300 x 300 (Email/SMB/FTP), 192 x 204 (IFAX)
Pull: 50 x 50, 75 x 75, 150 x 150, 200 x 200, 300 x 300, 400 x 400, 600 x 600
Communication ProtocolFTP (TCP/IP), SMB (TCP/IP), SMTP
File FormatStandard: TIFF, JPEG*9, PDF(Compact, Searchable, Encrypted, Digital Signature)
Fax (Option)
Maximum Number of Connection Lines1
Modem SpeedSuper G3: 33.6 kbps
G3: 14.4 kbps
Compression MethodMH, MR, MMR, JBIG
Resolution (dpi)400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine/Photo), 200 x 100 (Normal)
Sending / Receiving SizeSending: A3, A4, A4R, A5*11, A5R*11, B4, B5*10, B5R*11
Receiving: A3, A4, A4R, A5R, B4, B5, B5R
FAX / MemoryUp to 512 pages
Speed DialsMax. 281
Group Dials / DestinationsMax. 299 dials
Sequential BroadcastMax. 310 addresses
Memory BackupYes
Security
Authentication and Access ControlStandard:
Department ID Authentication ( Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Card Login, Card and PIN Login)
Document SecurityPrint Security (Secure Print, uniFLOW Secure Print*12), Scan Security (Encrypted PDF, Device Signature PDF), Send Data Security (Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History)
Network SecurityIPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Enabling/Disabling Remote UI, G3 FAX separation from LAN, USB Port separation from LAN
Device SecurityStandard: Storage Initialize, Job Log Conceal Function, Protecting MFD Software Integrity
Device Management and AuditingStandard: Administrator Password, Digital Certificate and Key Management, Security Policy Setting
Environmental
Operating EnvironmentTemperature: 10 to 30 ºC
Humidity: 20 to 80% RH (Relative Humidity)
Power Source220-240V 50/60Hz 10A
Power ConsumptionMaximum: Approx. 1500W or less
Standby: Approx. 34.3W*13
Sleep mode: Approx. 2W*14, Approx. 1W*15
Consumables
Toner CartridgesNPG-67 TONER BK/C/M/Y
Toner Yield (Estimated @ 5% Coverage)NPG-67 TONER BK: 36,000 pages
NPG-67 TONER C/M/Y: 19,000 pages
Paper Supply Options
Cassette Feeding Unit-AP1Paper Capacity: 550 sheets x 2 (80 gsm)
Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched
Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5 , B5R
Custom Size: 105.0 x 148 mm to 304.8 x 457.2 mm
Paper Weight: 52 to 220 gsm
Power Supply: From the Main Unit
Dimensions (W x D x H): 565 x 615 x 248 mm
Weight: Approx. 16 kg
Output options
Inner Finisher-K1Tray Capacity (with 80gsm paper):
Number of Trays: 2
Lower Tray1:
A4, A5, A5R, B5: up to 500 sheets
SRA3, A3, A4R, B4, B5R: up to 250 sheets
A6R: up to 30 sheets
Upper Tray2: A4, A5, A5R, B5: up to 100 sheets
SRA3, A3, A4R, A6R, B4, B5R: up to 50 sheets

Paper Weight:
Lower Tray1: 52 to 256 gsm
Upper Tray2: 52 to 300 gsm

Staple Position: Corner, Double
Staple Capacity:
A4/B5: 50 sheets (52 to 90 gsm)
A3/B4/A4R: 30 sheets (52 to 90 gsm)

Eco Staple:
A3/A4/B4/B5:
4 sheets (65 to 81.4 gsm)

Staple On Demand: Approx. 40 sheets (80 gsm)
Power Supply: From the main unit
Dimensions (W x D x H): 634 mm x 525 mm x 188 mm (when the extension tray and rotary tray are extended)
Weight: Approx. 8 kg
Inner 2way Tray-J1Paper Capacity (with 80 gsm paper)
Upper tray:
SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, Custom size (98.4 x 139.7 mm to 320.0 x 457.2 mm): 100 sheets
Lower tray:
A4, A5, A5R, A6R, B5, B5R: up to 250 sheets
SRA3, A3, A4R, B4, Custom Size (98.4×139.7 to 320.0×457.2 mm ): up to 100 sheets

Paper Weight: 52 to 300 gsm
Dimensions (W x D x H): 426 x 407 x 76 mm
Weight: 0.7 kg
Copy Tray-J2Capacity: 100 sheets (80 gsm)*16A4, B5, B5R, A5R
Dimensions (W x D x H): 444 ? 373 ? 176 mm (attached to the main unit, when the extension tray is extended)
Weight: Approx. 0.5 kg
Hardware Accessories
Card ReadersIC Card Reader Attachment-B2
COPY CARD READER-F1
COPY CARD READER ATTACHMENT-H3
OthersUTILITY TRAY-B1
3 Way Unit-D1
System and Controller Options
Print AccessoriesPS Printer Kit-CA1
PCL Printer Kit-CA1
Barcode PrintingBarcode Printing Kit-D1
System AccessoriesCOPY CONTROL INTERFACE KIT-D1
NFC KIT-D1
Fax AccessoriesSUPER G3 FAX BOARD-AV3
Other Options
AccessibilityADF ACCESS HANDLE-A1
Platen Cover-Y2
Staple CartridgeSTAPLE-P1
*1. SRA3 is unsupported for Coated (257-300gsm) and Heavy (257-300gsm) paper.
*2. Lower Cassette: Envelope Feeder Attachment A is required.
*3. Envelope Feeder Attachment A is required.
*4. SRA3 is unsupported for Coated (257-300gsm) and Heavy (257-300gsm) paper.
*5. Time from device power on, until copy ready (not print reservation).
*6. With Cassette open.
*7. XPS is supported from LPR command print only.
*8. Barcode Printing Kit-D1 is required.
*9. Single Page Only.
*10. Sent as B4.
*11. Sent as A4.
*12. Requires uniFLOW Online / uniFLOW.
*13. Reference value: measured one unit.
*14. Wireless LAN power serve mode OFF. Sleep mode is not available in all circumstances due to certain settings.
*15. Wireless LAN power serve mode ON. Sleep mode is not available in all circumstances due to certain settings.
*16. Requires 3 Way Unit-D1.

Product Catalogue PDF file : CANON Colour Multi-Function Copier iR C3120 2.57MB

(You need to install Acrobat Reader to open the PDF files.)
